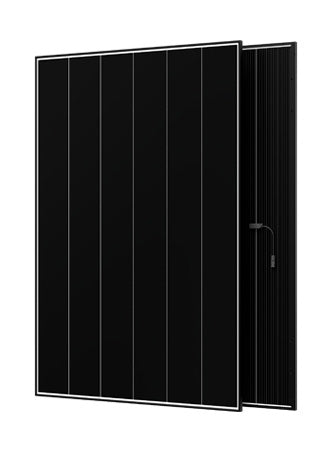

AIKO Neostar 3P+ 485W N-Type ABC Dual Glass Solar Panel – Pack of 8 (3.88kW)

The AIKO Neostar 3P+ 485W is a 108-cell N-type module built on AIKO All Back Contact (ABC) cell technology, with all electrical contacts on the rear of the cell and none on the front surface.

The module uses 2.0 + 2.0 mm coated semi-tempered dual glass in a black anodised aluminium frame. The junction box is IP68 rated with three bypass diodes, and the temperature coefficient of Pmax is -0.26%/°C.

This pack of 8 modules provides 3.88kWp, a typical size for a single UK domestic roof face.

Supplied as a pack of 8 modules on a single pallet.

Supplied through authorised UK distribution, dispatched directly from the distributor to your address.

Electrical (STC, per module)

• Rated power: 485W
• Module efficiency: 24.3%
• Open circuit voltage (Voc): 41.0V
• Short circuit current (Isc): 14.84A
• Voltage at Pmax: 34.6V
• Current at Pmax: 14.02A
• Temperature coefficient of Pmax: -0.26%/°C
• Maximum system voltage: 1500V DC
• Maximum series fuse rating: 30A

Mechanical

• Cell type: N-type ABC, 108 cells
• Glass: Dual glass, 2.0 + 2.0 mm coated semi-tempered
• Frame: Black anodised aluminium
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 24.2 kg
• Junction box: IP68, 3 bypass diodes
• Static load: Front 5400 Pa, back 2400 Pa

Pack

• Modules per pack: 8
• Total power: 3.88kWp

Warranty

• Product: 15 years (extendable to 25 years subject to AIKO terms)
• Performance: 30-year linear

Certifications

• Standards: IEC 61215, IEC 61730
• Fire rating: IEC Class A
