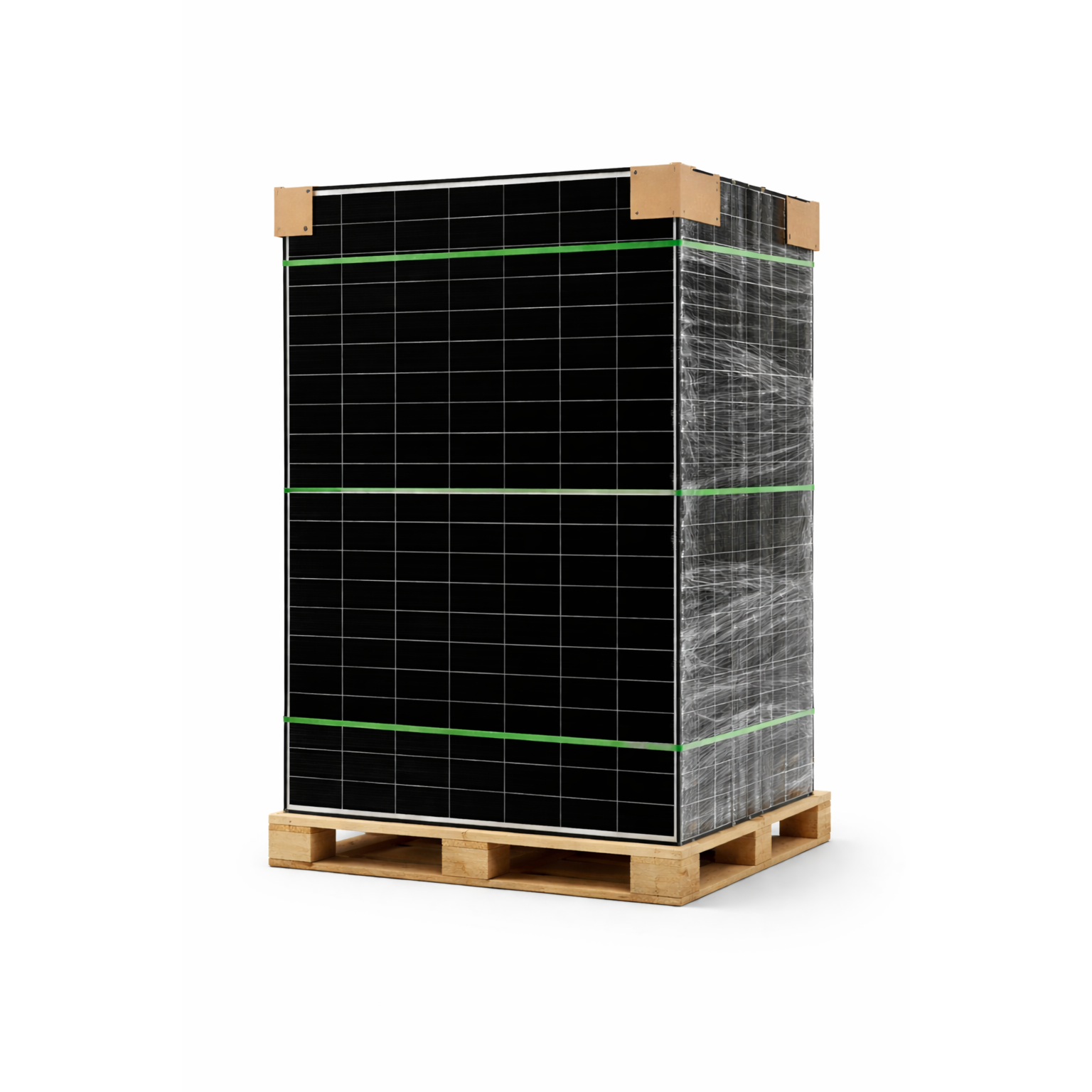

AIKO Neostar 3P+ 540W N-Type Bifacial Solar Panel – Pallet of 16 (8.64kW)

This product includes a full installer pallet containing 16 AIKO Neostar 3P+ 540W N-Type monocrystalline solar panels, providing a total system capacity of approximately 8.64kW. These high-efficiency photovoltaic modules are designed for residential, commercial and off-grid solar installations where reliable power output and long-term durability are required.

The Neostar 3P+ series uses advanced N-Type monocrystalline cell technology with ABC (All Back Contact) architecture. By placing all electrical contacts on the rear side of the cell, the design maximises the active surface area exposed to sunlight and helps improve electrical conversion efficiency compared with conventional front-contact modules.

The module features dual-glass construction with glass on both the front and rear sides. This structure increases mechanical strength and provides improved resistance to moisture, environmental stress and long-term degradation compared with traditional backsheet panels. The robust glass-glass design also supports improved long-term stability in demanding outdoor conditions.

With a bifacial design, the panel can generate additional electricity from reflected light reaching the rear side of the module. This can increase total energy yield when installed above reflective surfaces or elevated mounting systems such as flat-roof frames or ground-mounted structures.

Integrated ABC anti-shading cell technology helps maintain power generation when partial shading occurs across the module surface, supporting more stable output in real-world installation environments.

These modules are suitable for grid-connected photovoltaic systems as well as off-grid solar applications including residential rooftops, commercial buildings, ground-mounted solar arrays and specialist energy systems.

Authorised retailer of AIKO.

Specification

• Quantity per pallet: 16 panels
• Peak power per panel: 540W
• Total pallet capacity: 8.64kW
• Cell type: N-Type monocrystalline ABC (All Back Contact)
• Module type: Dual glass bifacial
• Maximum power voltage (Vmp): 38.40V
• Maximum power current (Imp): 14.07A
• Open circuit voltage (Voc): 45.60V
• Short circuit current (Isc): 14.84A
• Power tolerance: 0 / +3%
• Bifaciality coefficient: approx. 75–80%
• Dimensions (per panel): 1954 × 1134 × 30 mm
• Weight (per panel): 27.1 kg
• Cable length: 2 × 1.2 m solar cable
• Connectors: MC4 compatible
• Mounting: Integrated mounting holes for installation
