Daitto 210W HPBC Flexible Solar Panel

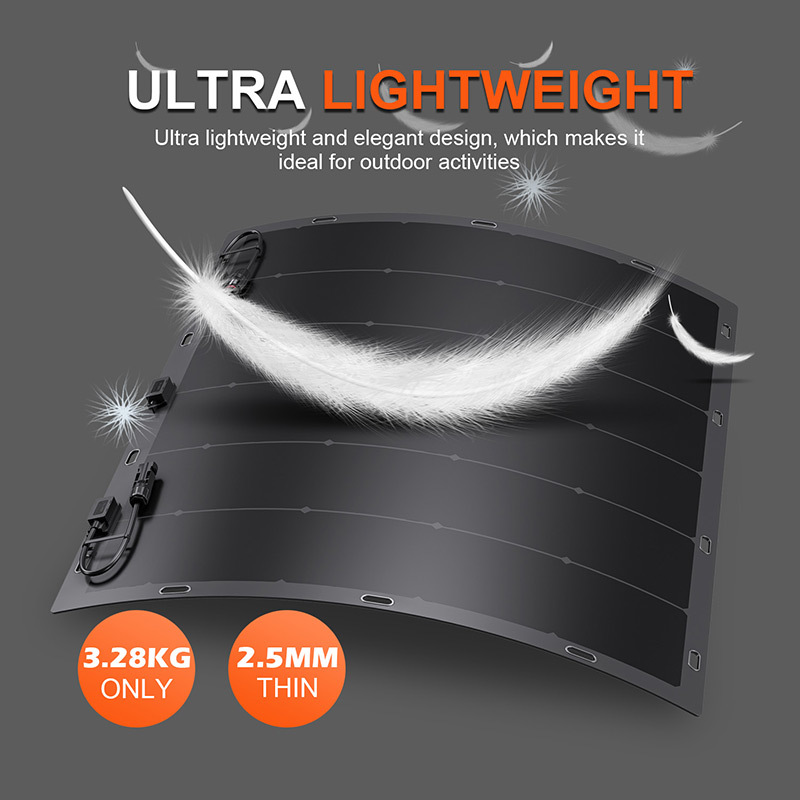

The Daitto Tech 210W HPBC Flexible Solar Panel provides high energy conversion efficiency in a lightweight and flexible design. Using Hybrid Passivated Back Contact (HPBC) solar cell technology, it maintains stable performance even in shaded or low-light environments. Its ultra-slim 2.5 mm profile and uniform black finish allow seamless integration on curved or irregular surfaces.

The panel includes pre-installed eyelets and MC4-style connectors for fast installation and reliable plug-and-play connectivity. It is compatible with MPPT solar charge controllers and suitable for both 12 V and 24 V battery systems.

Authorised retailer of Daitto Tech.

Specification

• Rated Power: 210 W

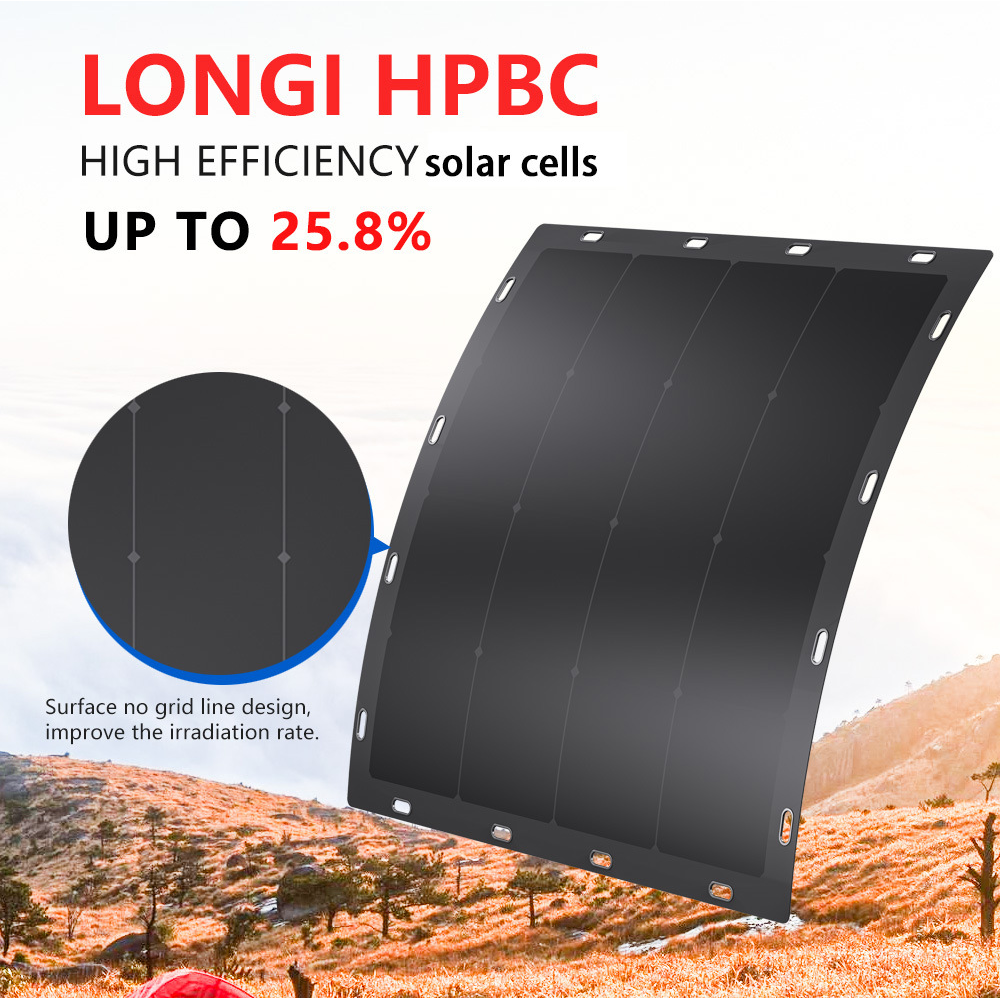

• Cell Type: HPBC (Hybrid Passivated Back Contact)
• Conversion Efficiency: 25.8%
• Open Circuit Voltage (Voc): 21.7 V
• Short Circuit Current (Isc): 7.07 A
• Maximum Power Voltage (Vmp): 18.0 V
• Maximum Power Current (Imp): 6.67 A
• Power Tolerance: ±5%
• Maximum System Voltage: 500 V
• Maximum Series Fuse Rating: 10 A
• Operating Temperature: −40 °C to +85 °C
• Dimensions: 1010 × 590 × 15 mm
• Weight: 5.2 kg

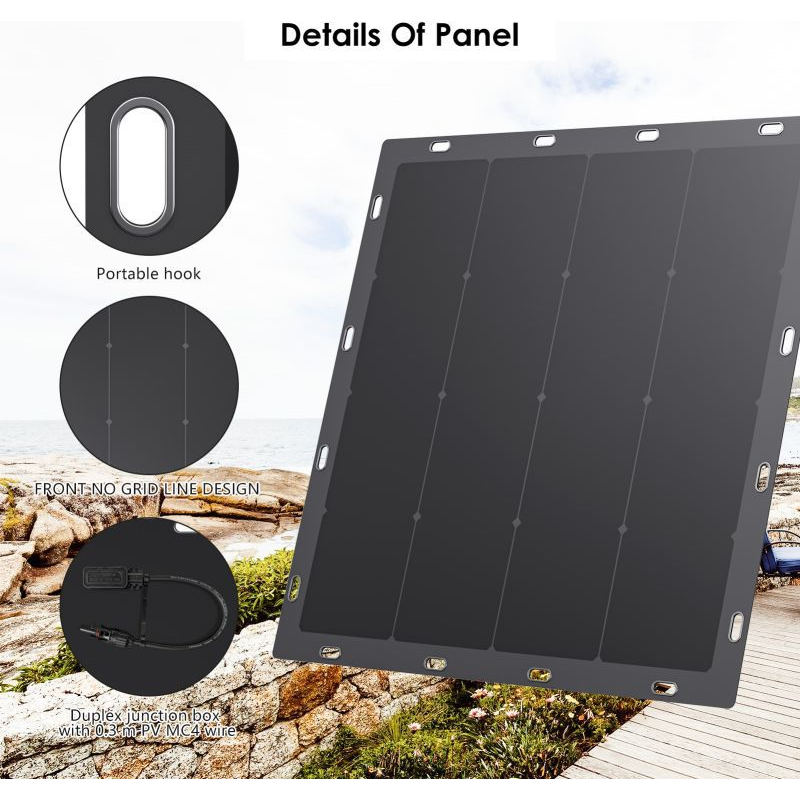

• Frame Type: Flexible, ultra-slim laminate with pre-installed eyelets
• Connectors: MC4-style
