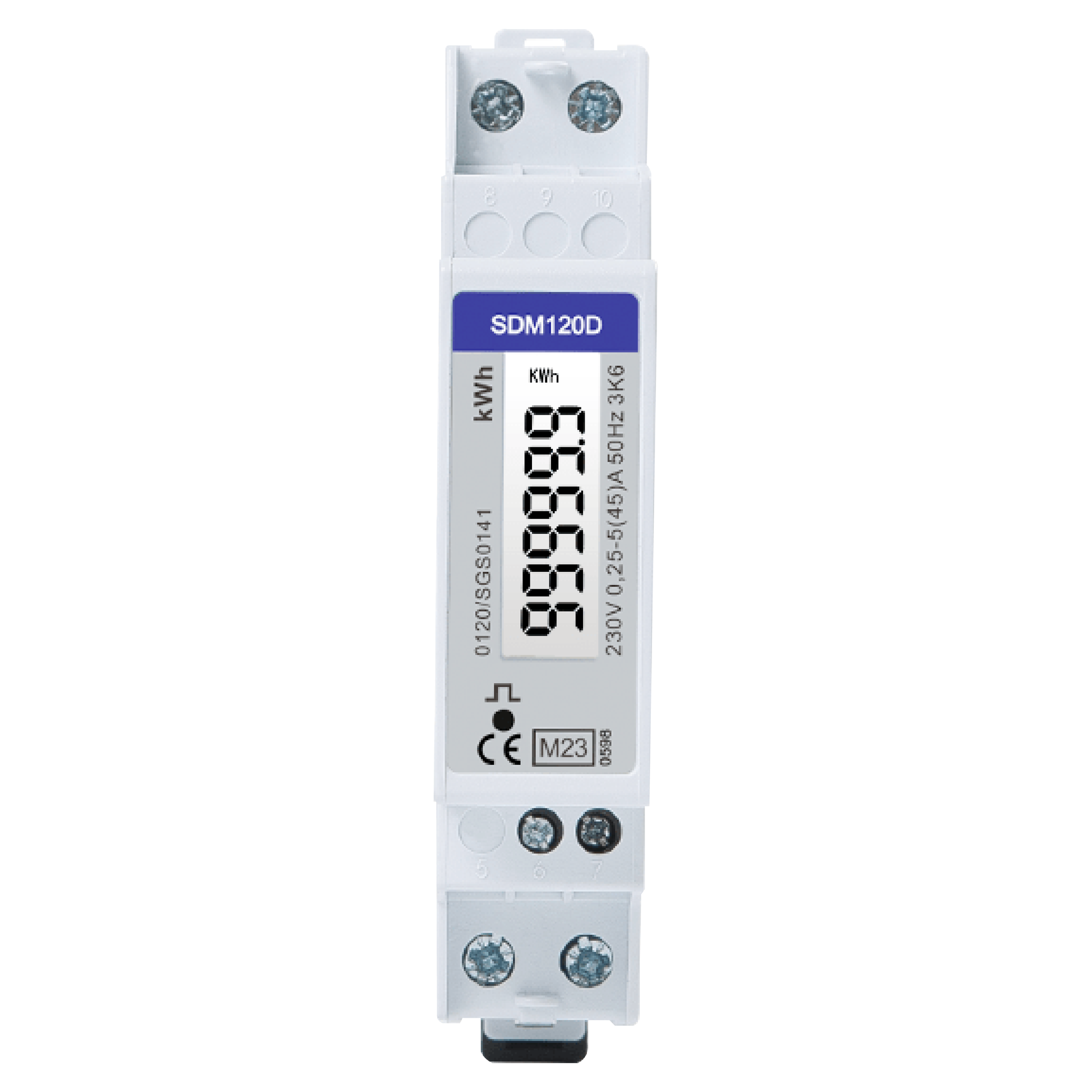

Eastron E-METER1 Single Phase Digital Energy Meter

This single-phase digital energy meter is designed for accurate monitoring of electrical energy consumption in residential and light commercial installations. It is commonly used with hybrid inverters for grid monitoring, sub-metering, and zero-export applications. The meter provides clear kWh readings via an integrated LCD display and supports reliable system integration.
Authorised retailer of Eastron via Sunsynk.

Specification

• Phase type: Single phase
• Rated voltage: 230V AC
• Frequency: 50Hz
• Current range: 0.25–5(45)A
• Measurement type: Active energy (kWh)
• Accuracy class: Class 1
• Display type: LCD
• Mounting type: DIN rail
• Pulse output: Yes
• Degree of protection: IP51
• Compliance: MID approved
• Operating temperature range: −25°C to +55°C
