ECO WORTHY Integrated 5000W 48V Pure Sine Wave Inverter with 80A Charge Controller for Off-Grid Systems

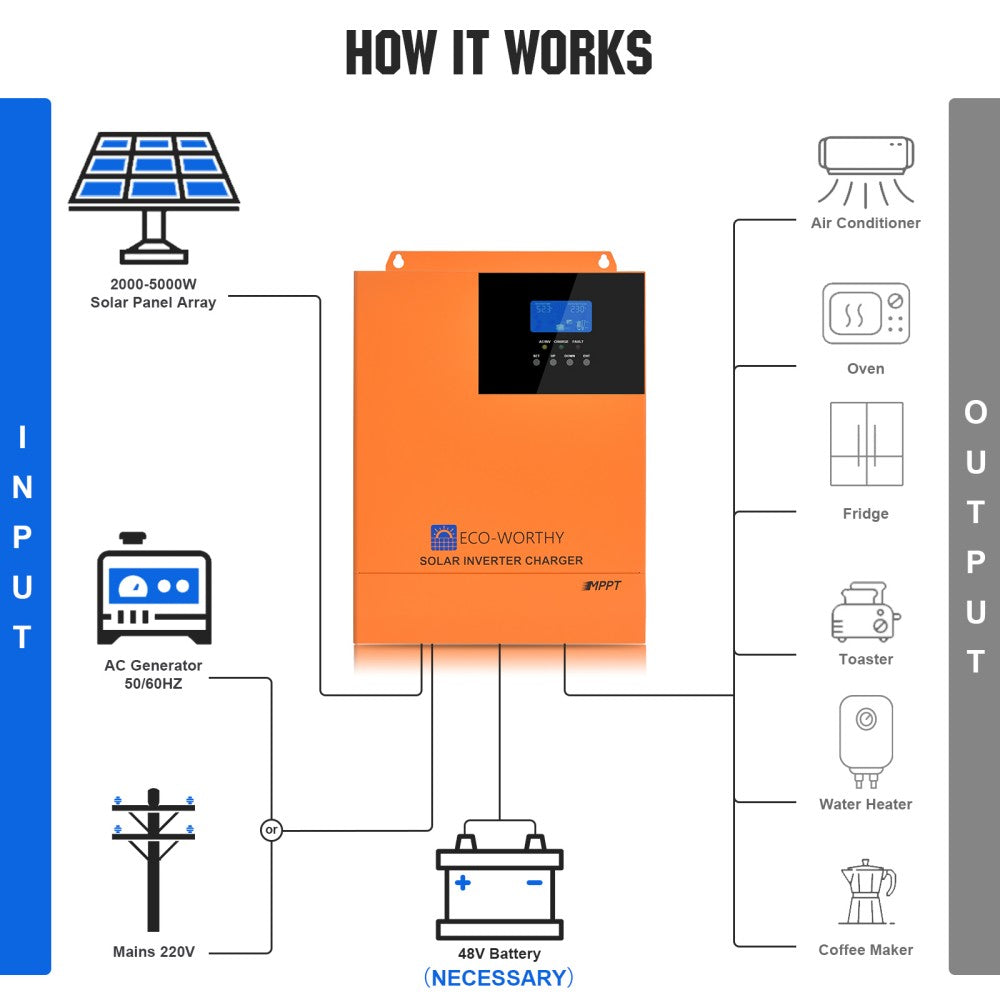

The ECO-WORTHY 5000W 48V Hybrid Inverter combines a pure sine wave inverter, MPPT solar charge controller, and AC charger into one compact unit. It provides complete energy management for hybrid and off-grid solar systems, offering seamless power conversion from solar, grid, or battery sources. Designed for efficiency and reliability, it integrates advanced DSP control for fast response, stable output, and intelligent protection.

The inverter supports four charging modes and three output modes, ensuring flexible operation across different energy scenarios. It includes Wi-Fi monitoring for remote management and compatibility with a wide range of battery types, including lead-acid, AGM, and lithium. With a 5000W continuous output and 10000W surge capacity, it is suitable for both residential and small commercial power systems.

Authorised retailer of ECO-WORTHY.

Specification

• Rated Output Power: 5000W
• Peak Power: 10000W
• Rated Battery Voltage: 48V
• Input Voltage Range: 90–140VAC
• Output Voltage: 220–230VAC
• Output Waveform: Pure sine wave
• Frequency: 50Hz / 60Hz (auto detect)
• Maximum Efficiency: >95%
• Maximum PV Input Power: 5000W
• Maximum PV Open-Circuit Voltage: 500VDC
• MPPT Voltage Range: 120–450VDC
• PV Charging Current Range: 0–80A (adjustable)
• Maximum AC Charge Current: 60A
• Battery Voltage Range: 40–60VDC
• Power Saving Mode: Load ≤25W
• Operating Modes: Solar only / Grid priority / Solar priority / Hybrid
• Communication: Wi-Fi module (included)
• Protection: Overload, short circuit, overvoltage, undervoltage, reverse polarity, overtemperature
