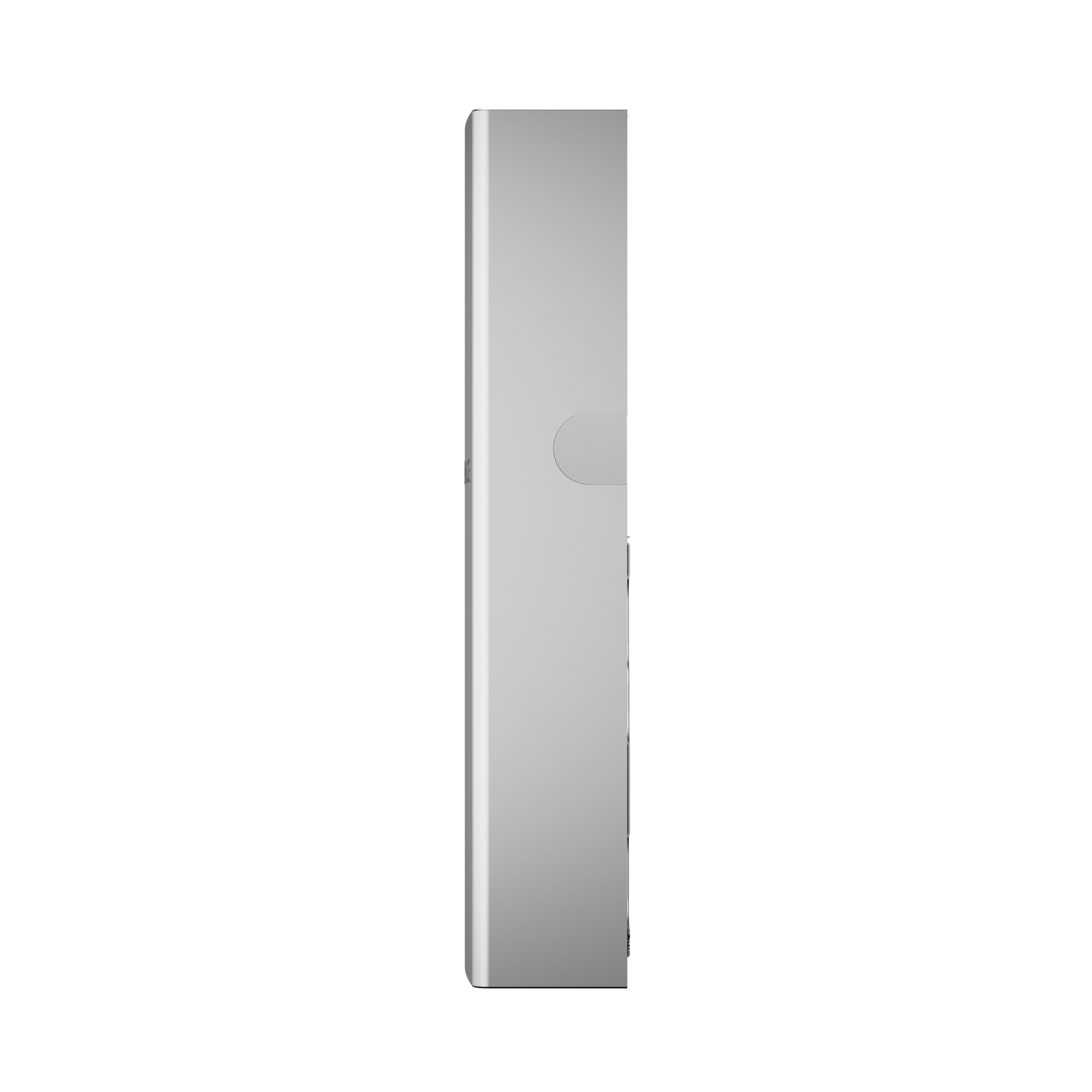

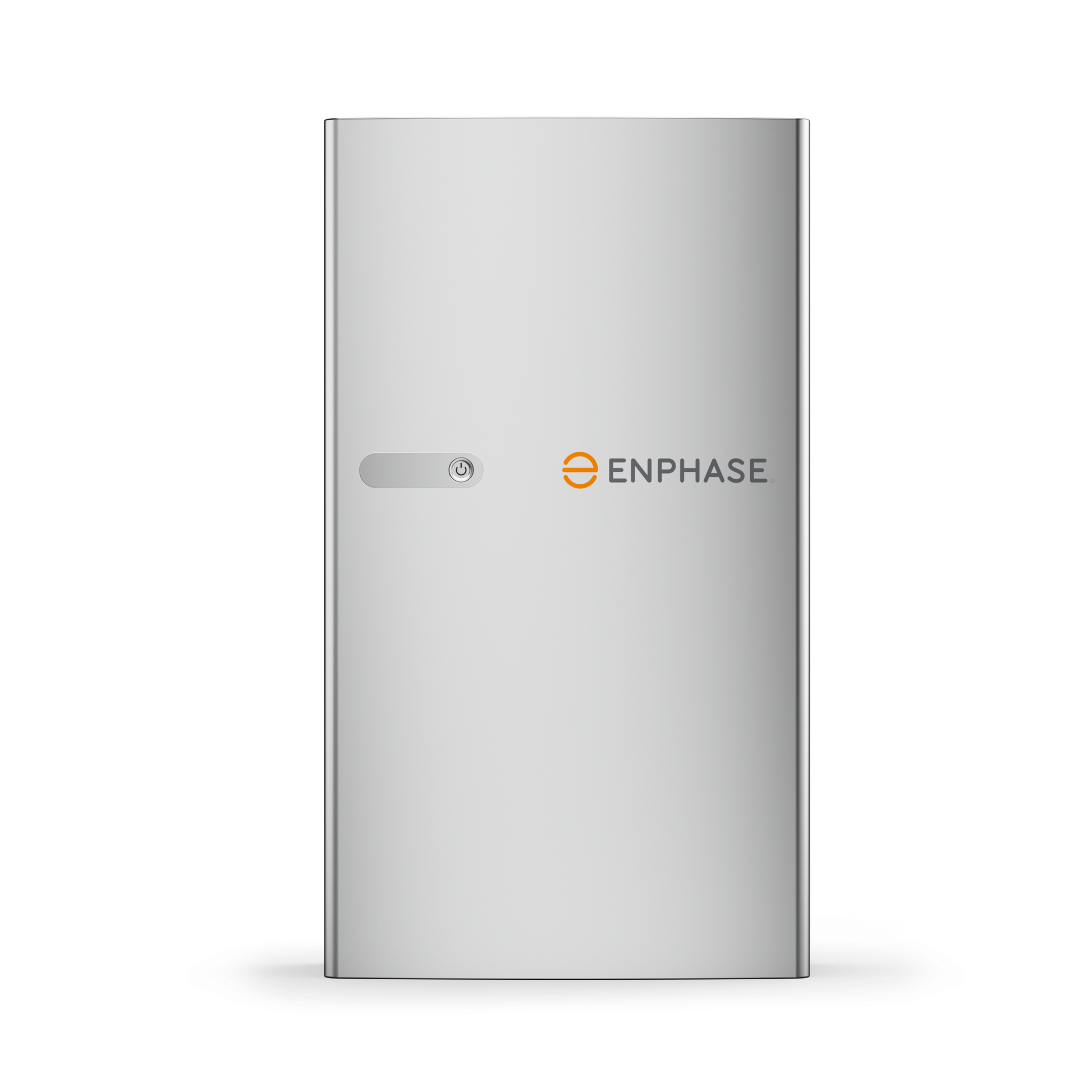

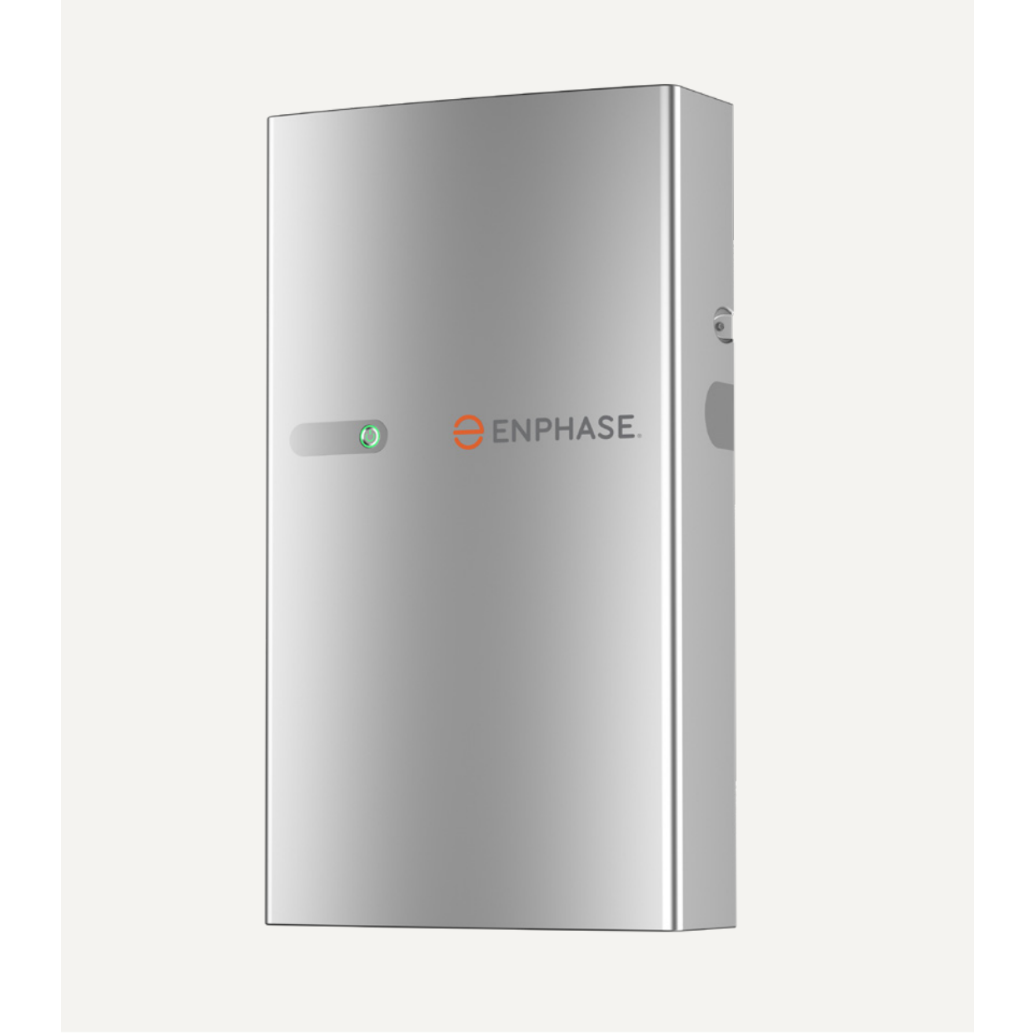

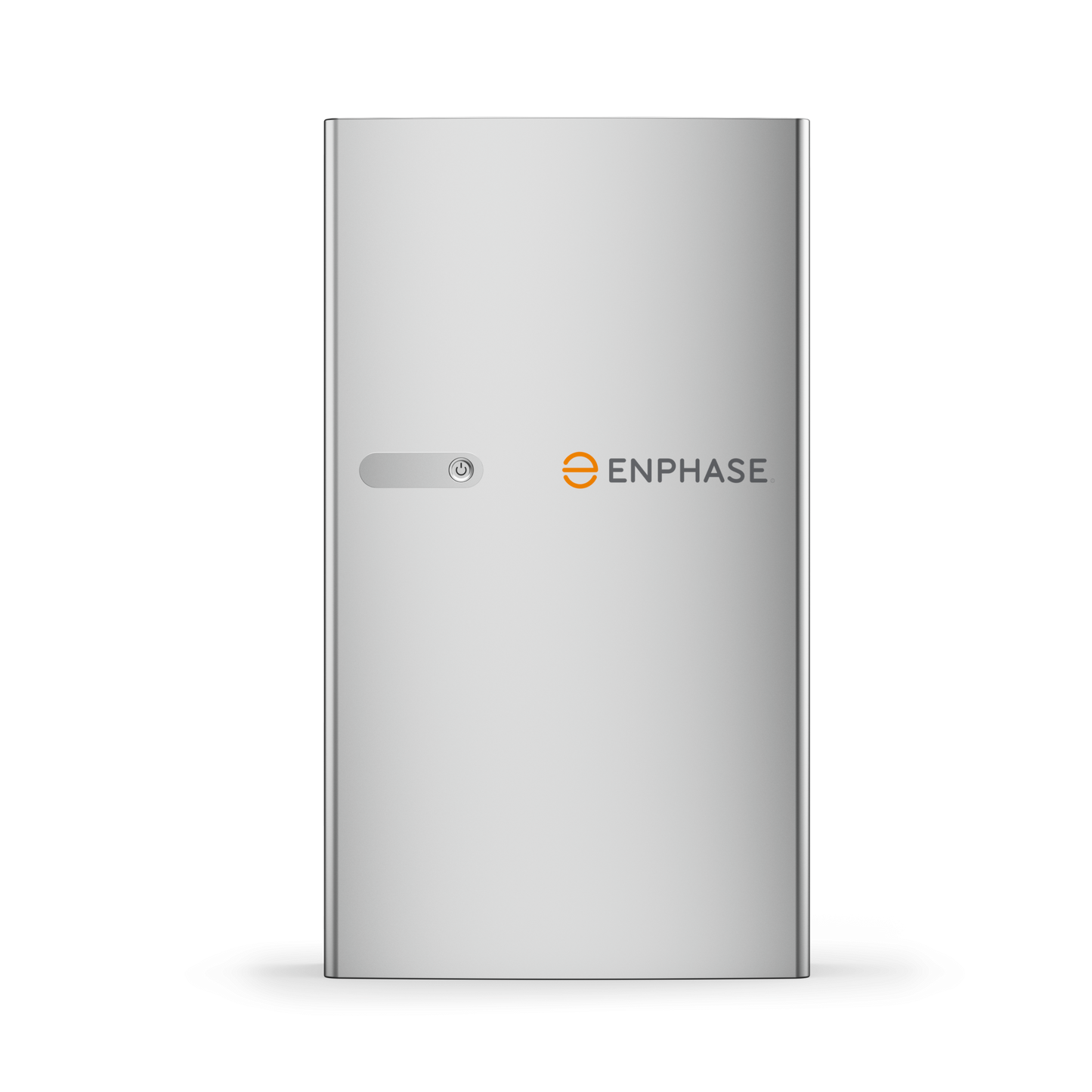

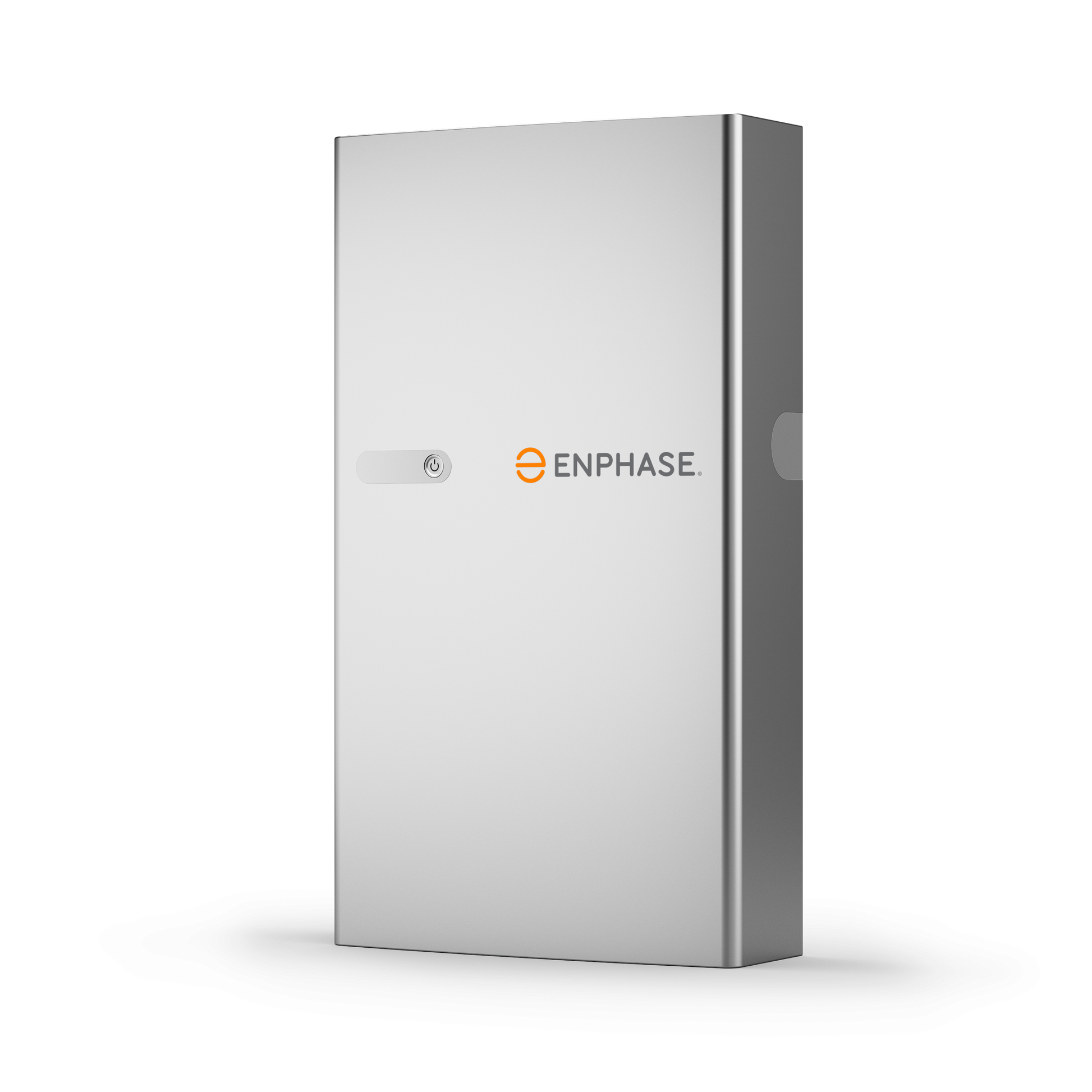

Enphase IQ Battery 5P

The Enphase IQ Battery 5P is an AC-coupled energy storage unit designed for residential energy storage applications within compatible Enphase Energy Systems. It integrates lithium iron phosphate battery technology with embedded microinverters and a battery management system.

The system is designed to support self-consumption and grid-assisted charging when configured as part of a complete and compatible system. It may be used in modular configurations depending on system design requirements.

This equipment is intended for professional installation and commissioning by qualified and experienced solar installation professionals in accordance with applicable regulations and standards.

The battery enclosure is IP55-rated and designed for outdoor or indoor installation. Monitoring and system interaction are available via compatible Enphase monitoring platforms when correctly configured.

Authorised retailer of Enphase Energy.

Specification
• Usable Energy Capacity: 5.0 kWh
• Battery Chemistry: Lithium Iron Phosphate (LFP)
• Continuous Output Power: 3.2 kVA
• Nominal AC Voltage: 230 V
• Grid Connection: Single-phase
• Round-Trip Efficiency (AC): Approximately 90 % (system-dependent)
• Cooling Method: Passive (natural convection)
• Enclosure Rating: IP55
• Operating Temperature Range (Discharge): −20 °C to +55 °C

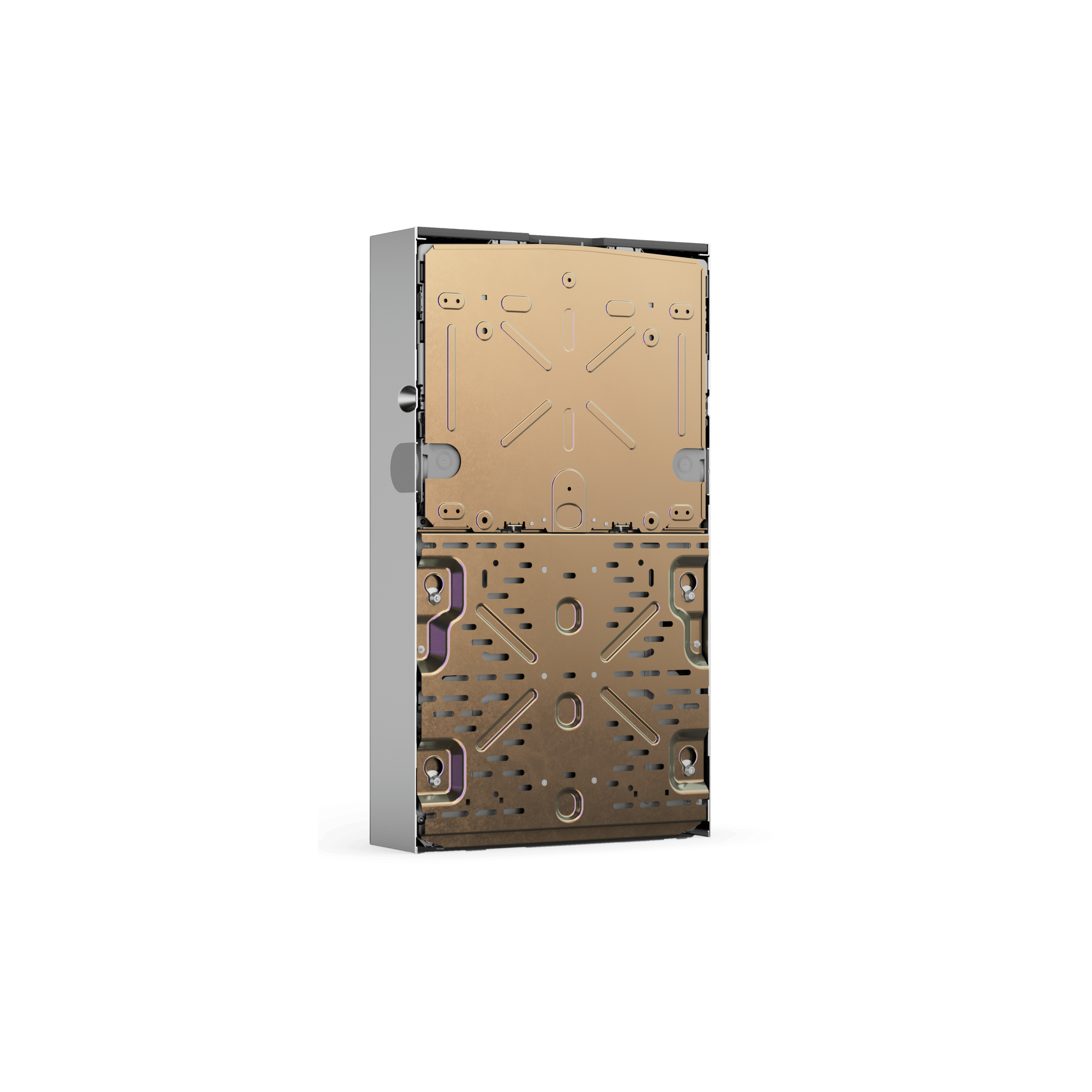

• Mounting Options: Wall-mounted or pedestal-mounted
• Compliance: G98, G99, G100, IEC 62109-1, IEC 62109-2
