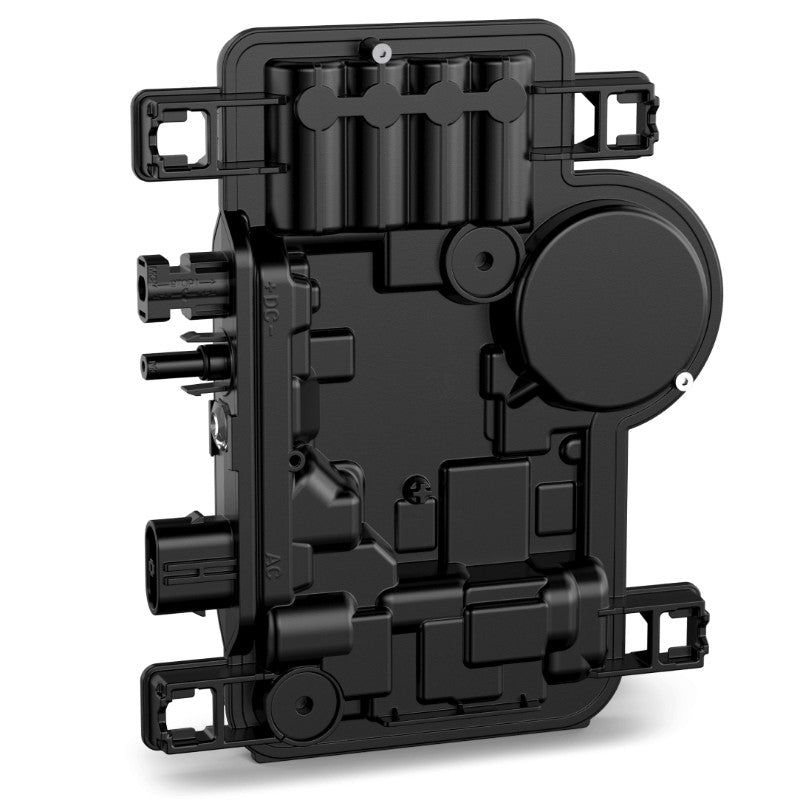

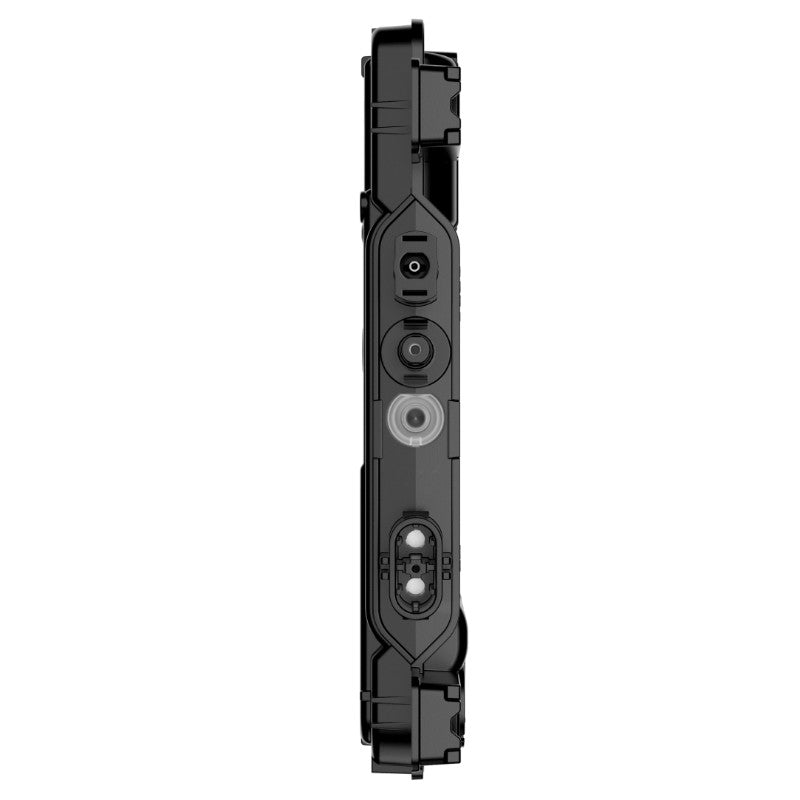

Enphase IQ7 Series Microinverter

The Enphase IQ7A Microinverter is a compact inverter designed for solar modules with 60 to 144 cells. It delivers 349W rated output power and supports up to 500W DC input, suitable for modern high-efficiency solar panels.

The microinverter includes plug-and-play MC4 connections and Enphase IQ cabling for simplified installation. It features a Class II double-insulated, IP67-rated enclosure for outdoor durability. Communication via power line (PLC) enables integration and monitoring through the IQ Gateway system.

The IQ7A meets multiple grid compliance standards, including G98, G99, CEI 0-21, and VDE-AR-N 4105, making it suitable for residential installations in the UK and EU.

Authorised retailer of Enphase.

Specification

• Model: IQ7A
• Inverter Type: Microinverter
• Rated Output Power: 349W
• Peak Output Power: 366VA
• Maximum DC Input Power: 500W
• DC Input Voltage Range: 18–58V
• Nominal DC Input Voltage: 40V
• Maximum DC Input Current: 10A
• Output Voltage: 230V AC
• Output Frequency: 50/60Hz
• Maximum Continuous Output Current: 1.52A
• Efficiency: 97% peak
• Enclosure Rating: IP67
• Insulation Class: Class II, double-insulated
• Communication Interface: Power Line Communication (PLC) with IQ Gateway
• Operating Temperature Range: –40°C to +65°C
• Dimensions: 212 × 175 × 30 mm
• Weight: 1.08 kg
• Compliance: G98, G99, CEI 0-21, VDE-AR-N 4105
