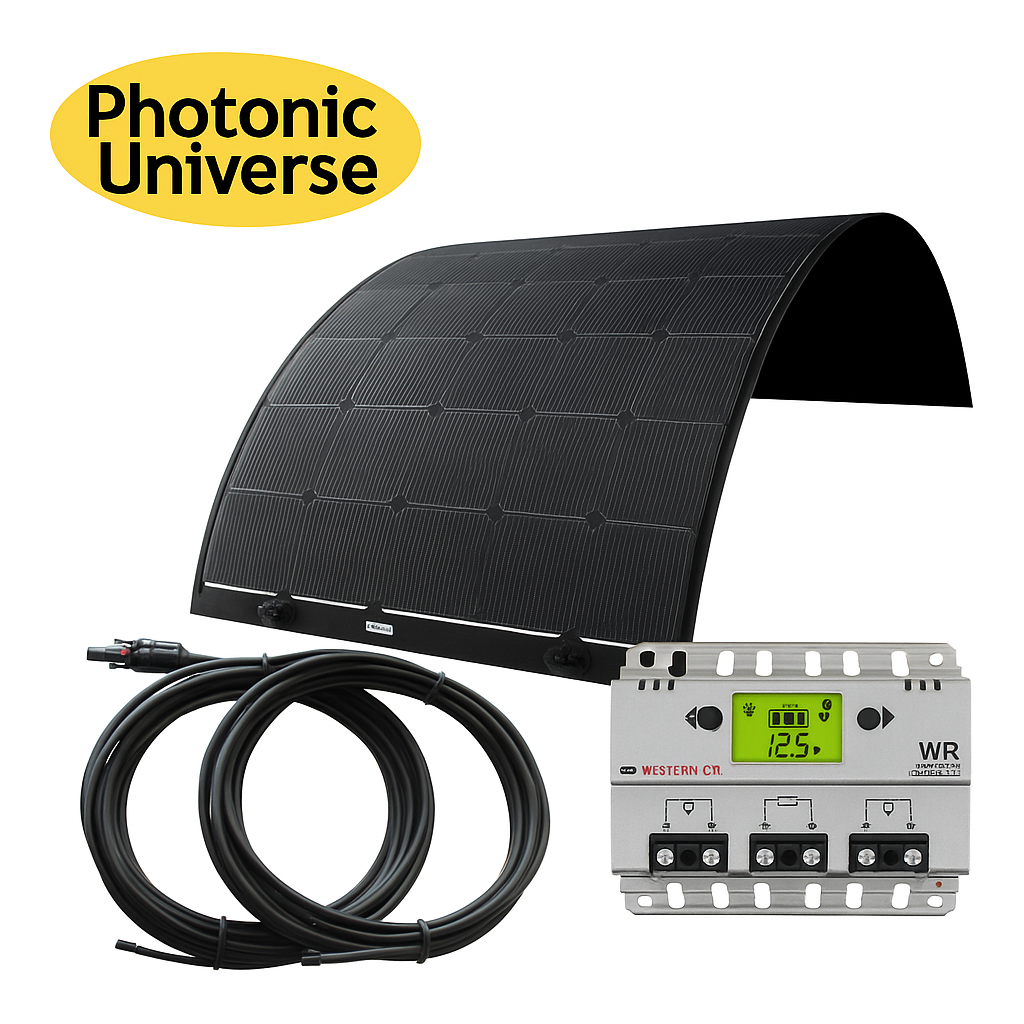

Photonic Universe Flexible 240W Solar Charging Kit with CIGS Panel, Cables & Controller

Introducing our complete Flexible 240W Solar Charging Kit, engineered for maximum efficiency, durability, and flexibility. This fully integrated system includes premium European components, delivering reliable off-grid power for a wide range of applications.

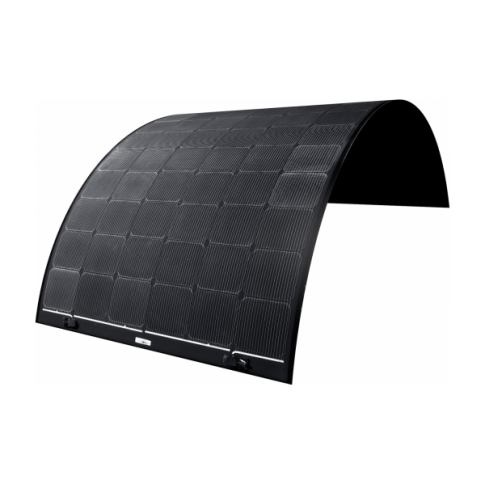

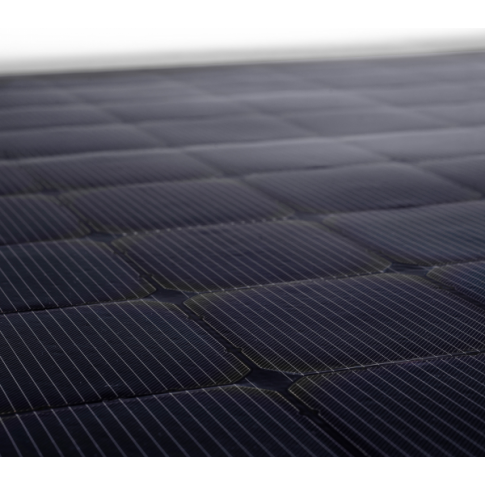

At the core of the kit is the Swedish-made SELM 240W CIGS flexible solar panel, utilizing advanced thin-film technology to provide superior shading tolerance and long-term performance. The panel is fully flexible, shatterproof, crack-resistant, and walkable — perfect for rooftops, mobile installations, marine vessels, or curved surfaces where traditional rigid panels are not suitable.

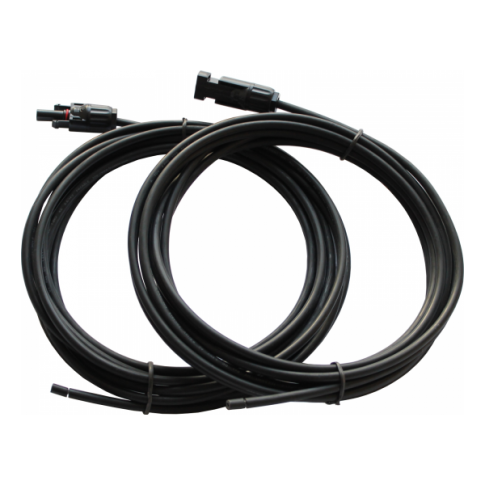

To ensure optimal power transfer, the kit includes a pair of 5-meter 4.0mm² tinned copper solar cables with waterproof MC4 connectors, offering weatherproof, plug-and-play connections with minimal power loss. These cables are designed to perform reliably in extreme temperatures ranging from -40°C to +120°C.

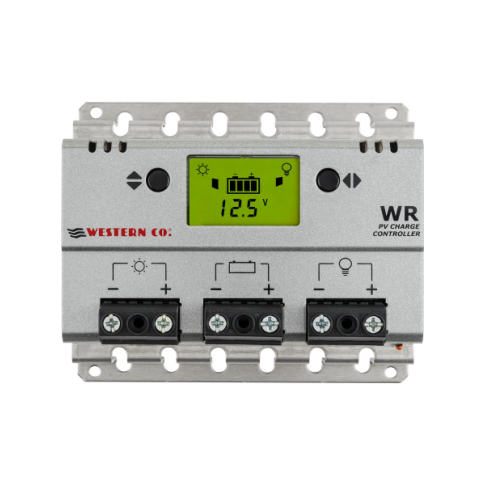

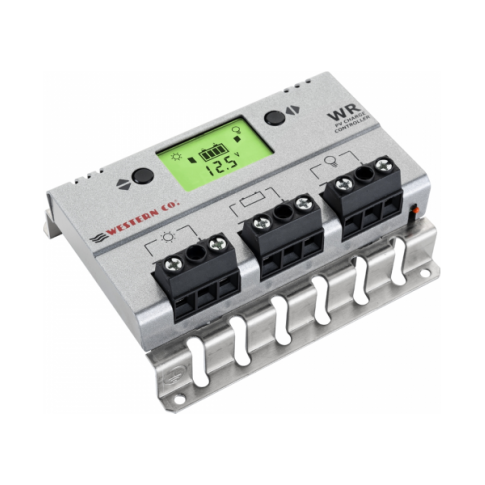

The system is controlled by a high-quality 30A 12V/24V PWM solar charge controller, designed and manufactured in Italy. Featuring advanced battery protection, programmable settings for various lead-acid battery types, and real-time system monitoring via the built-in LCD display, this controller maximizes battery charging efficiency and extends battery lifespan.

With full electronic protection, programmable load control options, and intuitive system monitoring, this complete kit offers a reliable, efficient, and user-friendly off-grid solar solution.

Whether for residential rooftops, mobile setups, marine applications, industrial buildings, or remote off-grid systems, this flexible solar kit delivers outstanding performance and long-term energy independence.

• Complete flexible solar charging kit: 240W SELM CIGS panel, cables, and charge controller
• Swedish-made fully flexible CIGS thin-film solar panel
• Superior shading tolerance with bypass diodes between every cell
• Shatterproof, crack-resistant, and walkable design for curved and mobile surfaces
• Includes 5m 4.0mm² tinned copper extension cables with MC4 waterproof connectors
• Cables rated for extreme temperatures: -40°C to +120°C
• Italian-made 30A PWM solar charge controller with LCD display and advanced battery protection
• Supports 12V/24V lead-acid battery systems (sealed, gel, flooded)
• Programmable load control for lighting, fans, pumps, and off-grid applications
• Ultra-low carbon footprint: 4-6 g/kWh CO₂ emissions during lifecycle
• 10-year product warranty and 25-year performance warranty on solar panel

Authorised retailer of Photonic Universe.

Solar Panel Specifications

• Peak power: 240W
• Maximum power voltage: 37.4V
• Maximum power current: 6.6A
• Open circuit voltage: 45.7V
• Short circuit current: 7.6A

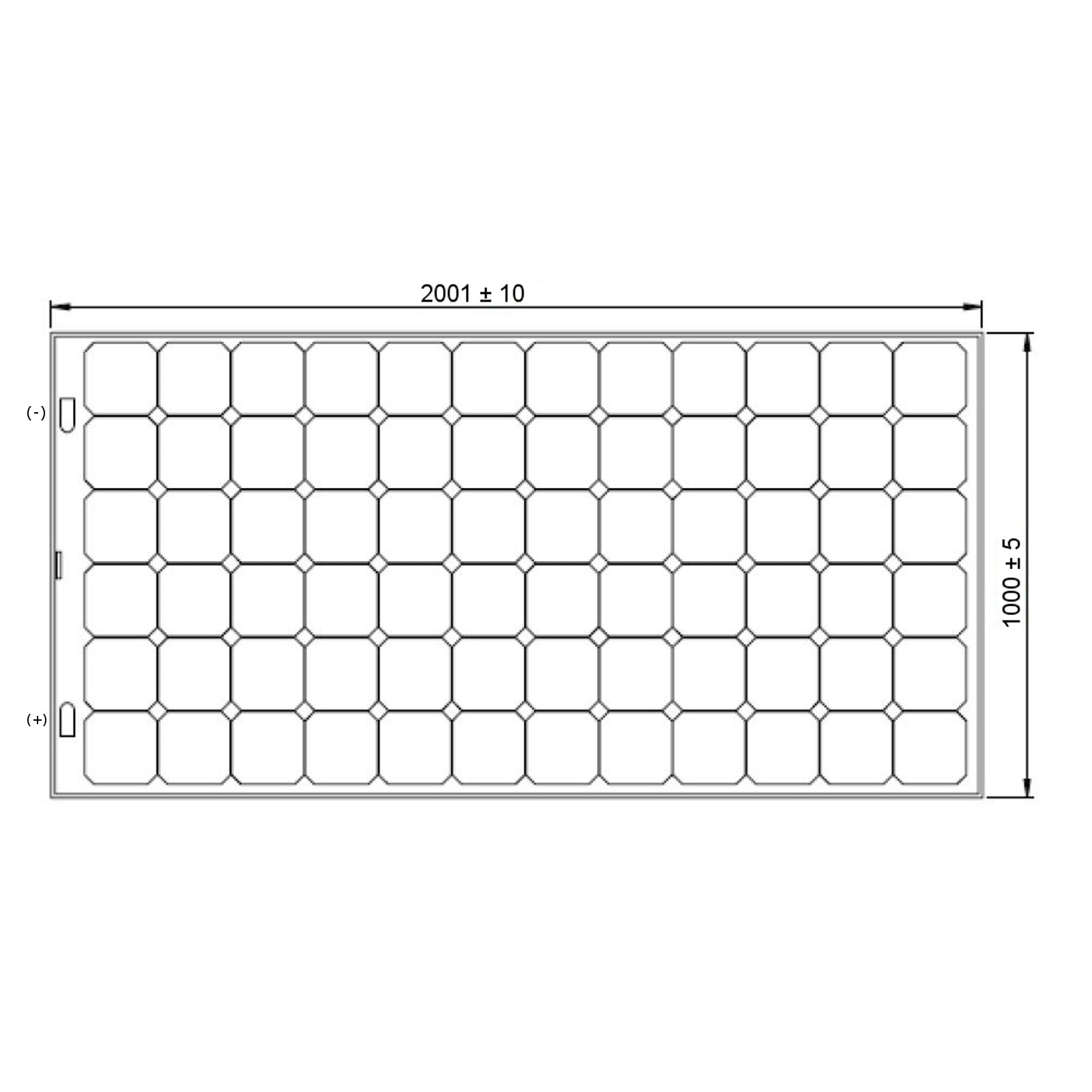

• Dimensions: 2001 x 1000 x 2mm
• Weight: 6.0kg


This product comes with a 10 year product warranty which covers material and production defects and a 25-year performance warranty.

Controller Specifications

• Fully automated operation and auto 12V/24V selection
• Rated charging and load current: 30A
• Enhanced monitoring and charging / load work control
• Maximum solar panel input voltage 55V
• 3 pairs of terminals (input, battery, load) for wire up to 10mm2
• Temperature sensor: built in
• Full set of electronic protection functions
• Self-consumption: 8mA
• Working temperature: -10C to +60C
• Size: 15 x 12 x 5 cm
• Weight: 500 g
• Multiple mounting holes for ease of installation

This product is covered by a 5 year manufacturer warranty.

Cable Specifications

• Conductor: tinned copper
• Cross section: 4.0mm
• Conductor resistance: 5.09 Ohm/km (20C)
• Insulation and Jacket: 120C XLPE
• Working temperature range: -40C to +120C
• Certification: TUV
• Outer diameter: 6.1mm

Warranty

Electrical equipment such as solar charge controllers and inverters have 1 year warranty, unless stated otherwise in our product description. Warranty for our own "Photonic Universe" branded products is provided by Photonic Universe Ltd. If we find any defects in our own products within the warranty period, we will repair or replace such products at our discretion free of charge. Warranty for other products is provided by the product manufacturer and terms and conditions of this warranty might be different from our terms and conditions. Full terms and conditions of the warranty can normally be found in the product manual.

Photonic Universe solar panels are covered by 1 year workmanship warranty in relation to assembly, materials and accessories (connection, cables, diodes, frame etc). In addition, there's a separate performance warranty on solar cells provided by solar cells manufacturers. Most manufacturers of solar cells we use for our solar panels provide the standard industry warranty, which is that solar cells are guaranteed to produce at least 90% of nominal power in 10 years and 80% of nominal power in 25 years.

If you suspect a product defect within the warranty period, please contact us by phone or email with a detailed description of the problem. If the problem cannot be solved remotely and an examination is required, you will be asked to send the item back to us for testing at your cost. If we are involved into repair / replacement of the product and the problem is covered by the warranty, we will return the repaired / replaced item to you at our cost. If the item you sent to us under warranty is in good working condition and no defect is found, it will incur a test service charge and the shipping cost to send the item back to you.
