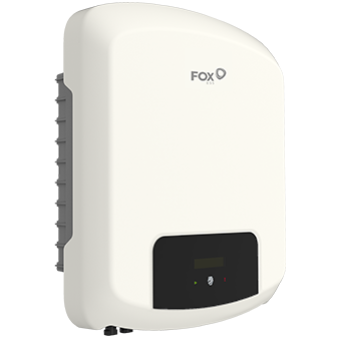

FOX ESS F3600 SP Inverter – 3.6kW Dual MPPT | Single-Phase

The FOX ESS F3600 is a single-phase inverter designed for residential solar energy systems. It features dual MPPT tracking to improve solar input efficiency and maintain consistent performance under varied sunlight conditions.

The unit includes IP65-rated protection, making it suitable for both indoor and outdoor installation. It supports remote monitoring through the Fox Cloud app or web portal and can be combined with a FOX ESS charge controller for future battery integration.

The F3600 offers quiet operation, compact dimensions, and high conversion efficiency, providing stable energy conversion with minimal maintenance requirements.

Authorised retailer of FOX ESS.

Specification

• Rated Output Power: 3.6kW
• Inverter Type: Single-phase, grid-tied
• Maximum DC Input Power: 5,400W
• Maximum DC Input Voltage: 1,100V
• MPPT Voltage Range: 160–950V
• MPPT Trackers: Dual MPPT
• Maximum DC Input Current (per MPPT): 12A
• Rated AC Output Voltage: 230V
• Rated AC Output Current: 16A
• Maximum Efficiency: 97.8%
• European Efficiency: 97.0%
• Communication Interface: RS485 / Wi-Fi / LAN (optional)
• Protection Rating: IP65
• Cooling Method: Natural convection
• Operating Temperature Range: –25°C to +60°C
• Monitoring Platform: Fox Cloud app or web portal
• Noise Level: <30 dB
• Dimensions: 333 × 397 × 147 mm
• Weight: 10.5 kg
