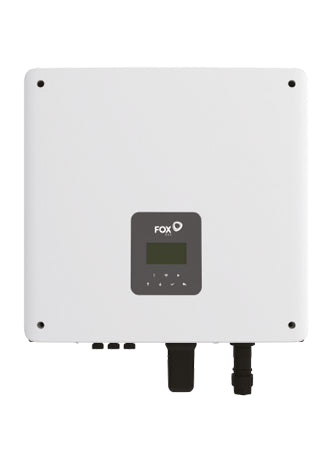

Fox ESS H1 G2 3.68kW Single-Phase Hybrid Inverter (H1-3.7-E-G2)

The Fox ESS H1 G2 3.68kW is a single-phase hybrid inverter for solar and high voltage battery systems, with two MPPT inputs and an integrated EPS backup output.

It operates with Fox ESS high voltage LFP batteries, including the EP series, and is rated IP65 with natural convection cooling for indoor or outdoor installation.

A Wi-Fi dongle and CT clamp are included for monitoring and export control.

Grid-connected equipment must be installed by a qualified electrician and notified to the Distribution Network Operator under G98 or G99 as applicable.

Supplied as a single inverter with Wi-Fi dongle and CT clamp.

Supplied through authorised UK distribution, dispatched directly from the distributor to your address.

DC and battery

• Rated AC output: 3.68kW
• MPPT trackers: 2
• MPPT voltage range: 80–550V
• Max. DC input voltage: 600V
• Start-up voltage: 75V
• Max. input current: 16A per MPPT
• Battery type: LFP, high voltage (80–480V)
• Battery charge efficiency (PV to battery): 98.5%
• Backup: Integrated EPS output

Mechanical and monitoring

• Protection rating: IP65
• Cooling: Natural convection
• Dimensions: 434 × 418 × 185 mm
• Weight: 22 kg
• Monitoring: Wi-Fi dongle, Fox ESS app and web portal
• Included: Wi-Fi dongle, CT clamp

Warranty

• Product: Manufacturer warranty – see Fox ESS UK terms
