ECO-WORTHY
Integrated 5000W 48V Pure Sine Wave Inverter with 80A Charge Controller for Off-Grid Systems
Integrated 5000W 48V Pure Sine Wave Inverter with 80A Charge Controller for Off-Grid Systems
Couldn't load pickup availability

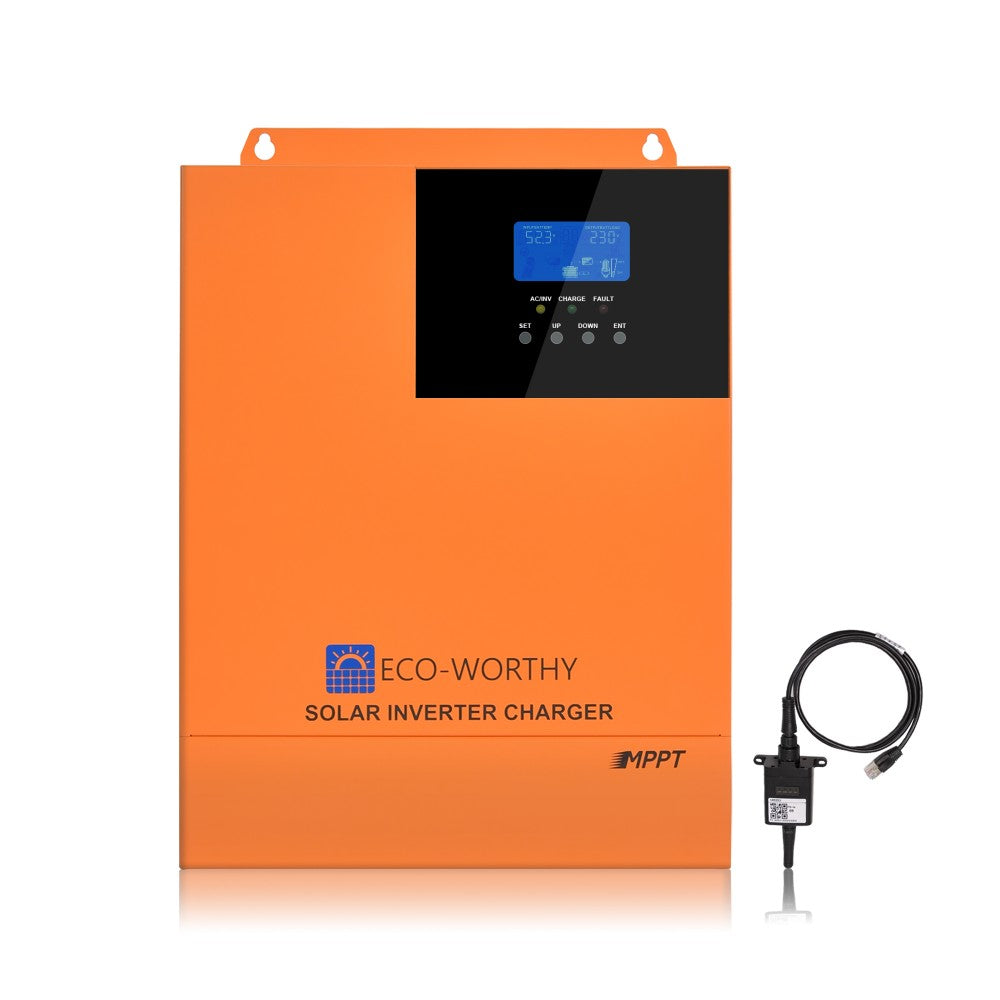

The ECO-WORTHY All-in-One Inverter seamlessly combines a 5000W 48V pure sine wave power inverter with an 80A MPPT controller, delivering a complete hybrid solar energy storage and management solution.
This advanced system integrates solar charging, grid charging, and stable AC sine wave output, powered by DSP control and cutting-edge response algorithms for superior reliability and industrial-grade performance.
It offers four flexible charging modes — Solar Only, Grid Priority, Solar Priority, and Solar & Grid Hybrid — along with three output modes — Solar Priority, Grid Priority, and Inverter Priority — to adapt to a wide range of energy needs and application scenarios.
-

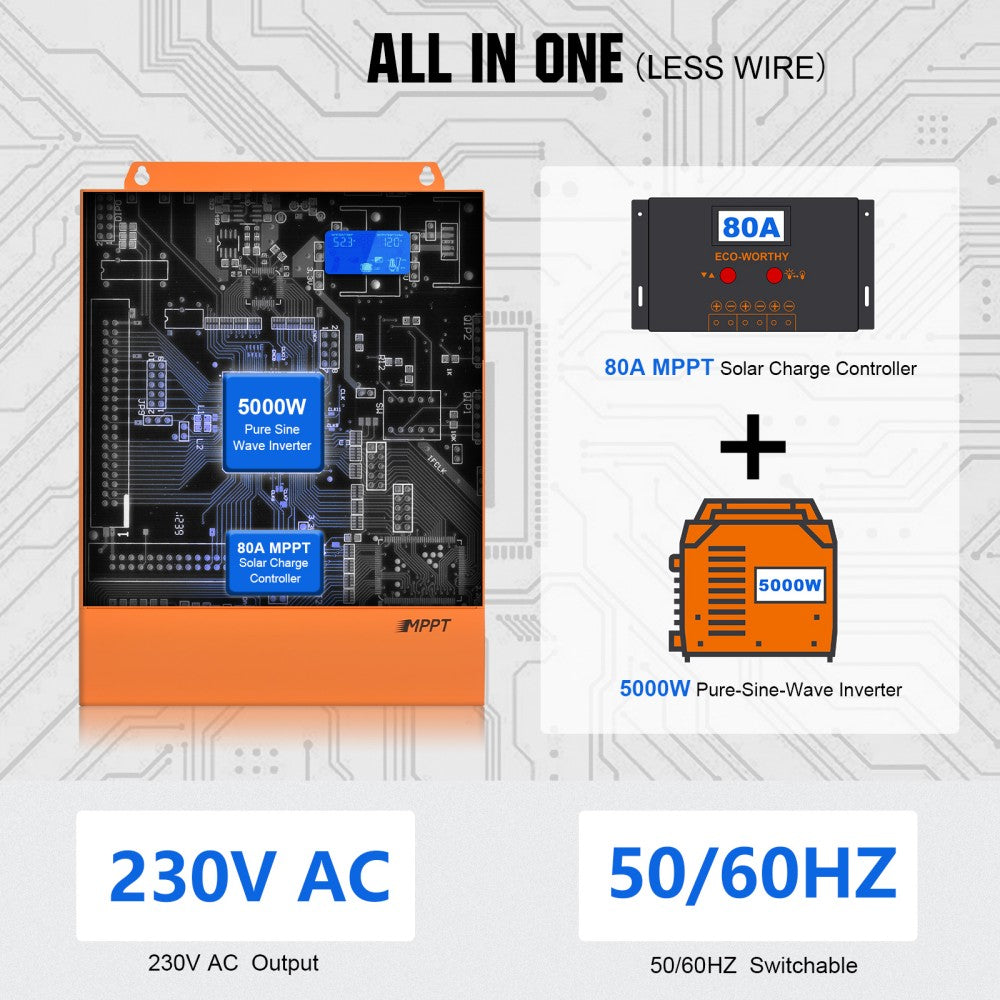

Hybrid Inverter Solution: Combines a 5000W 48V DC to 220V/230V AC pure sine wave inverter with an 80A MPPT controller, delivering over 95% efficiency. Reduces wiring complexity, maximizes solar energy utilization, and offers full protection against short circuits, overvoltage, undervoltage, overloads, and reverse polarity.
-

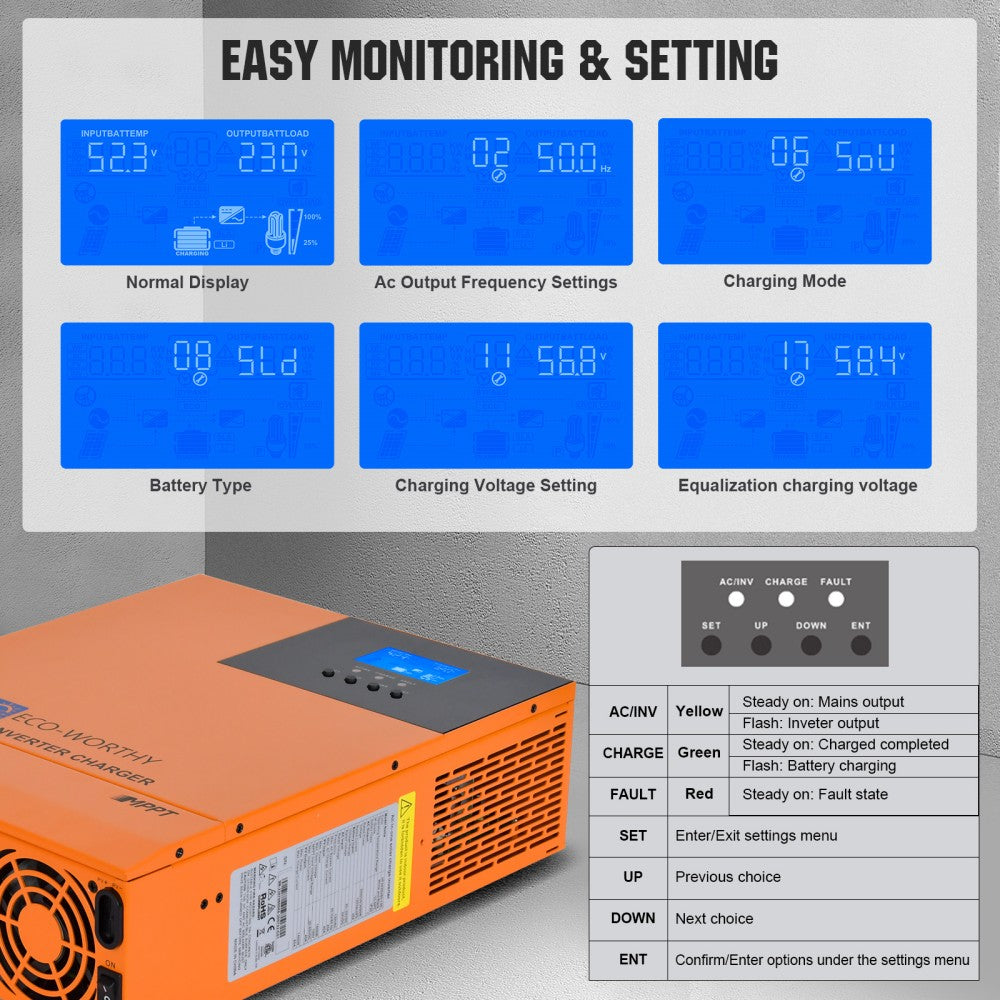

Remote Monitoring: Equipped with a Wi-Fi monitoring module, allowing real-time system monitoring via smartphone or laptop from anywhere, anytime.
-
Versatile Battery Compatibility: Supports a wide range of batteries, including Lead-Acid, AGM, Flooded, NCM, and Lithium types. Operates in bulk and float charging modes (requires a 48V battery bank connection).
-

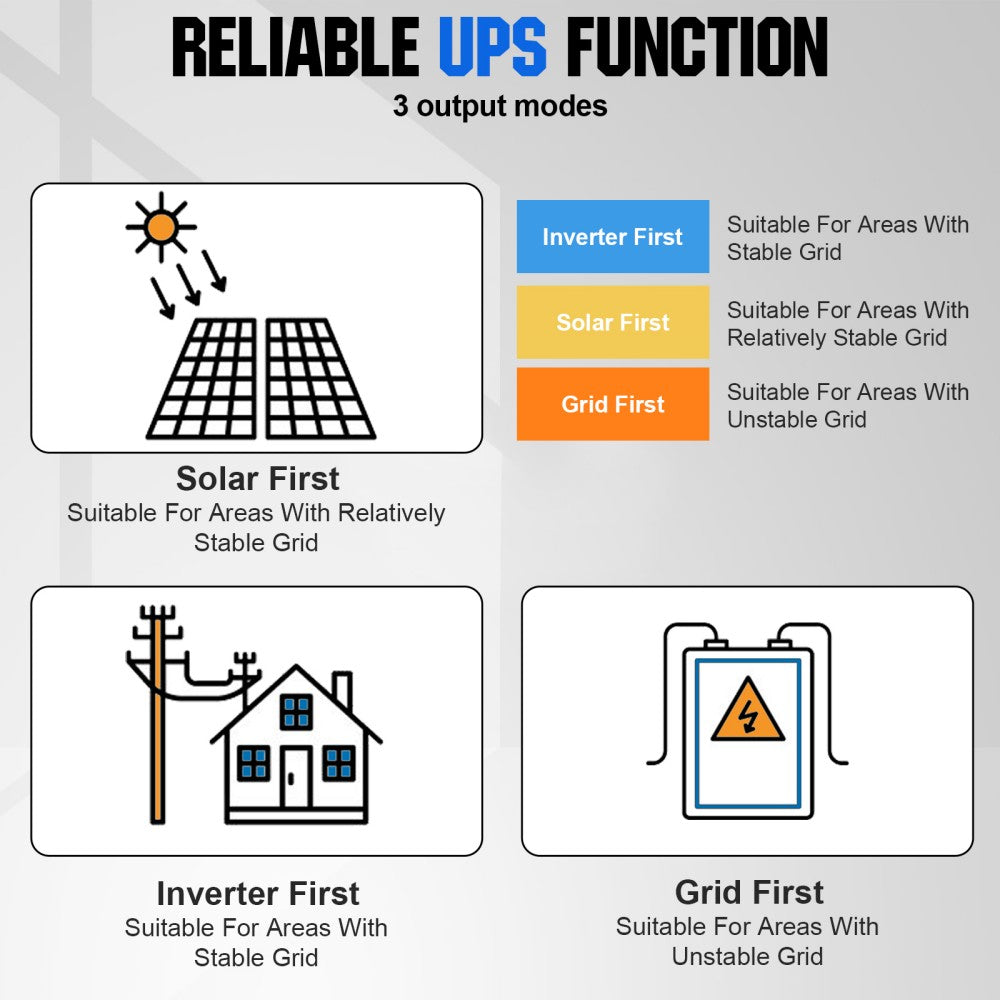

UPS Functionality: Offers four smart charging modes and three automatic output modes, seamlessly switching between mains and battery to ensure uninterrupted power supply to your appliances.
-

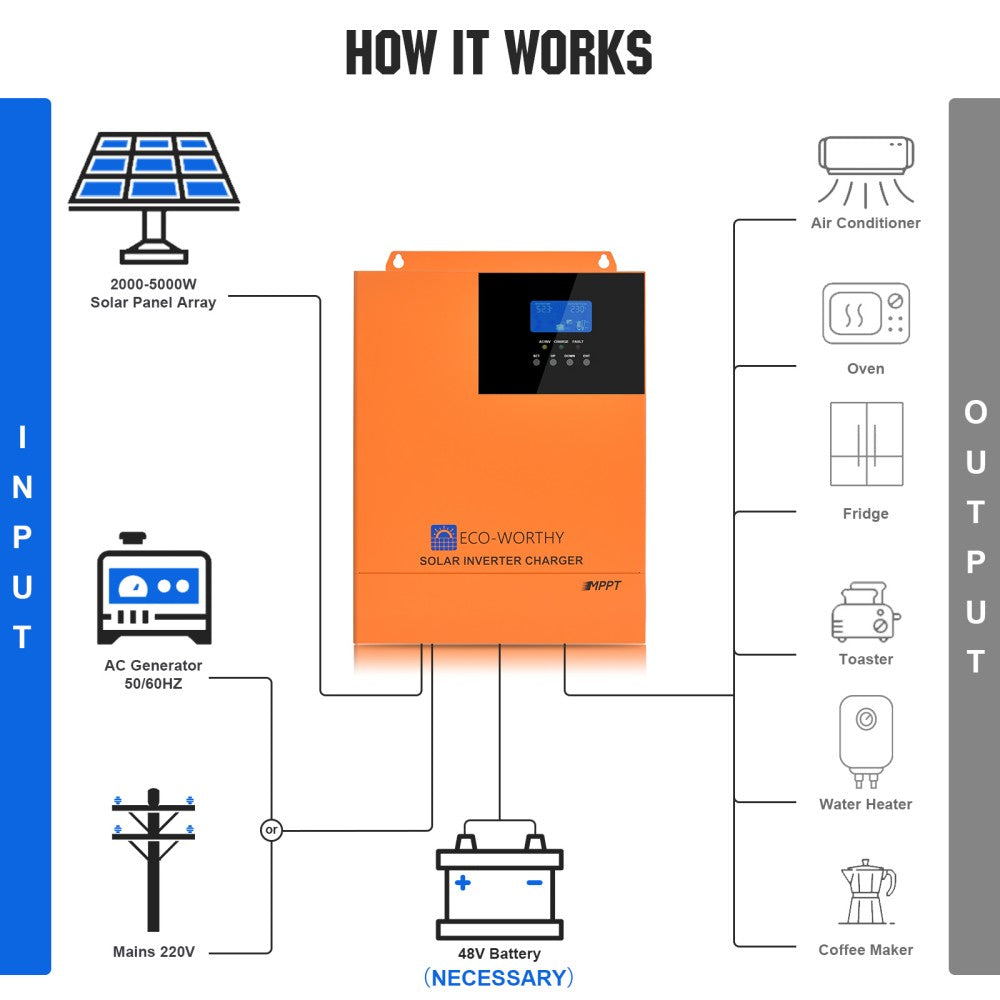

Wide Applications: Compatible with 120–500V DC solar panel arrays, 50/60Hz generators, and 220V/230V AC mains power. Capable of delivering 5000W continuous (10,000VA peak) output, perfect for powering air conditioners, coffee makers, refrigerators, and more.
-
Package Includes: 5000W all-in-one solar hybrid inverter plus Wi-Fi module.
Specification
| AC Input Mode | |
| Rated Input Voltage: 220/230VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 20A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 220VAC | Peak Power: 10000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 5000W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 5000W | Charging Short Circuit Protection: Blown fuse |
