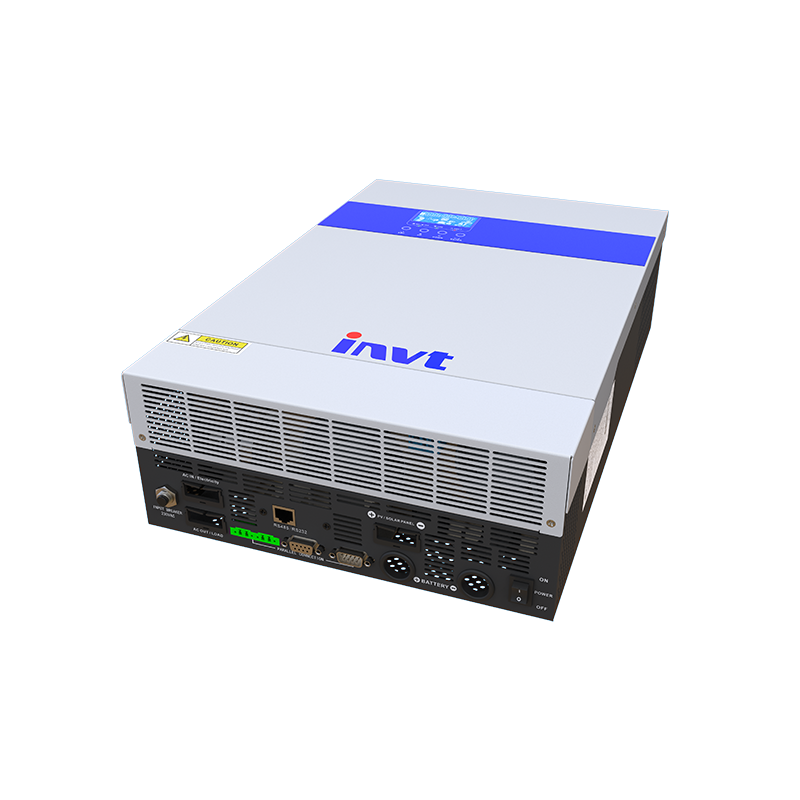

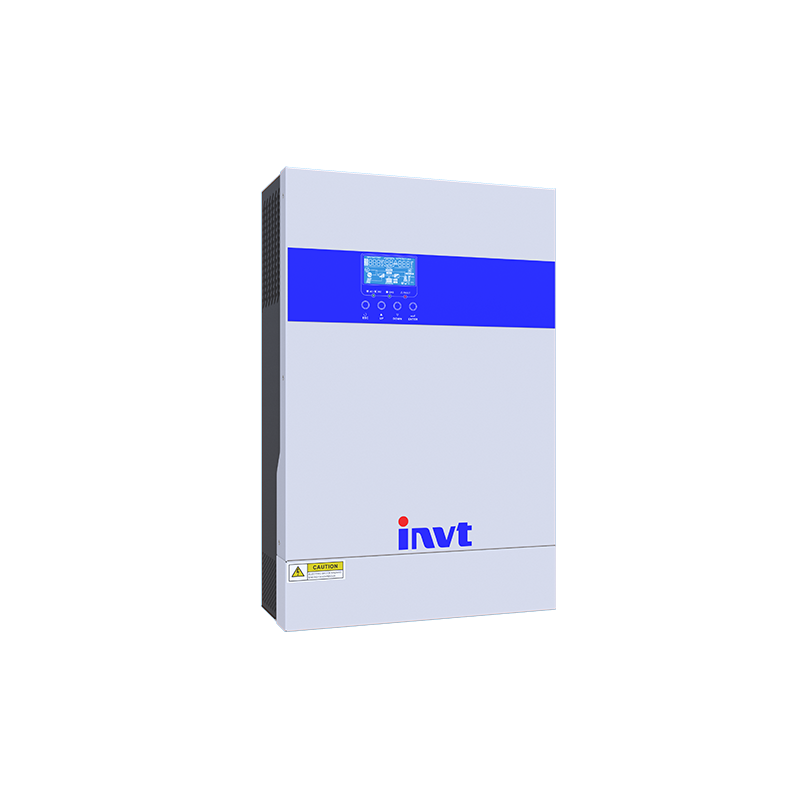

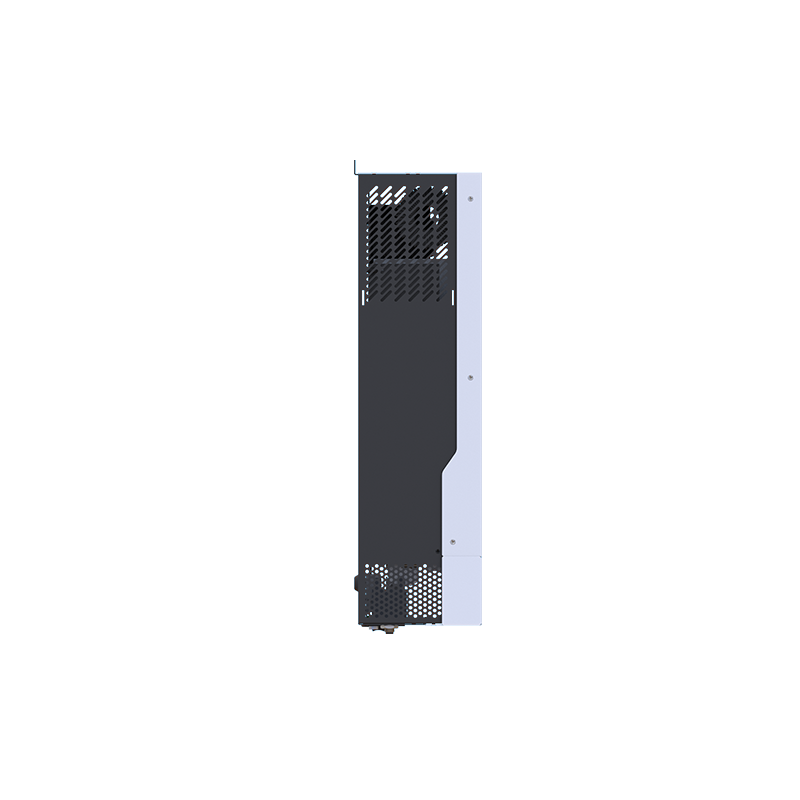

INVT XN5548-P 5500W Single Phase Off-Grid Solar Inverter

The INVT XN5548-P is a robust single-phase off-grid inverter designed for solar systems requiring intelligent energy management, battery charging flexibility, and expandable power output. With pure sine wave output and integrated MPPT solar charger, this inverter supports both solar and generator input, providing seamless energy conversion for homes, cabins, and off-grid applications.

Whether you're powering essential appliances or running a full remote system, the XN5548-P offers stable performance, high efficiency, and the ability to connect up to 6 units in parallel for higher energy demands. Its flexible work modes, wide PV input range, and lithium battery compatibility make it a future-ready solution for smart solar installations.
Authorised retailer of INVT.

Key Features

• Pure sine wave off-grid inverter with 5500VA / 5500W rated output
• MPPT solar charger supports up to 6000W PV array power
• Wide MPPT input voltage range: 120Vdc–450Vdc
• Dual input support: solar and generator/AC grid
• Battery voltage: 48VDC (compatible with lithium and lead-acid types)
• Supports multiple charging modes: solar priority or AC priority
• Up to 6 inverters can be connected in parallel (XN5548-P model)
• High surge capacity: up to 11000VA for motor loads
• Smart battery charger optimises battery performance and lifespan
• Overload, short-circuit, and over-temperature protection

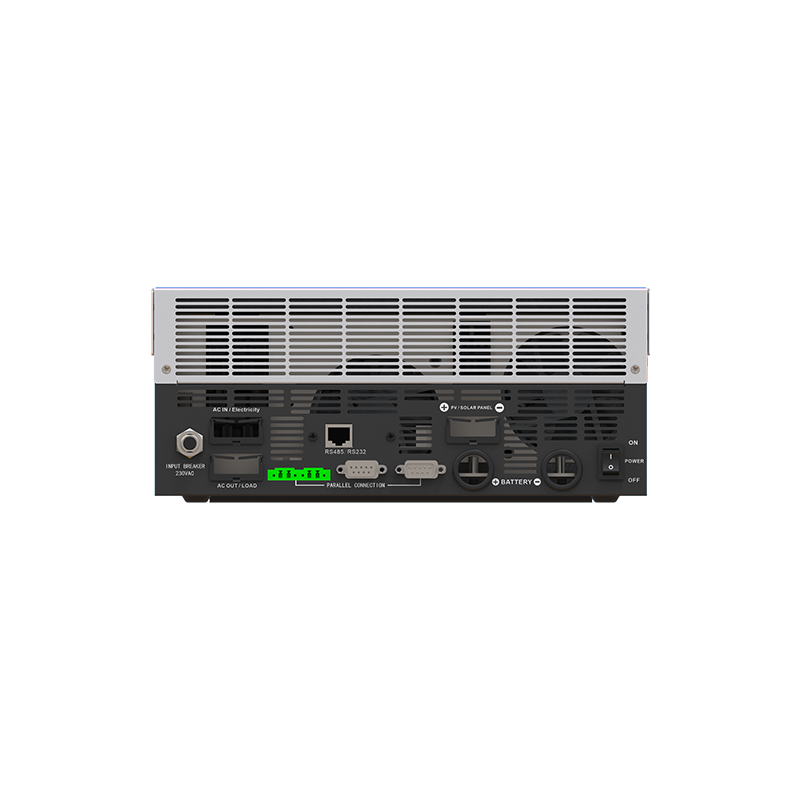

• RS232 / RS485 communication ports with LCD display
• CE-certified, IP20-rated metal enclosure
• Operating temperature range: -10°C to +50°C
• Dimensions: 120 x 295 x 468 mm
• Net weight: 11.5 kg

Specifications

• Rated Output Power: 5500VA / 5500W
• Output Voltage (Battery Mode): 230Vac ±5%
• Output Frequency: 50Hz / 60Hz (auto-sensing)
• Surge Power: 11000VA
• Output Waveform: Pure Sine Wave
• Transfer Time: 10ms (PCs), 20ms (home appliances)
• Battery Voltage: 48VDC
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 66VDC
• Max. PV Array Power: 6000W
• MPPT Voltage Range: 120VDC – 450VDC
• Max. PV Open Circuit Voltage: 500VDC
• Max. Solar Charge Current: 100A
• Max. Utility (AC) Charge Current: 60A
• Parallel Operation: Up to 6 units (XN5548-P only)
• Protection: Overload, short circuit, AC overcurrent, temperature
• Display: LCD
• Communication Ports: RS232 / RS485
• Dimensions (W x H x D): 120 x 295 x 468 mm
• Net Weight: 11.5 kg
• Protection Class: IP20
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -15°C to +60°C
• Humidity: 5%–95% (non-condensing)
• Certification: CE

Warranty

INVT SOLAR WARRANTY TERMS AND CONDITIONS – EUROPE
Version: V2.1_20221213
Effective for Stock Code: SZ 002334
Issued by: INVT Solar Technology (Shenzhen) Co., Ltd.
Website: www.invt-solar.com | Email: solar-service@invt.com.cn | Tel: +86 755 2353 5666

1. Scope of Warranty
This warranty applies only within the European market and covers the following products:

Wi-Fi/GPRS monitoring module: 5-year warranty
BD, XD series hybrid inverters: 5-year warranty
MG, BG, XG series solar grid-tied inverters: 10-year warranty
XN series solar off-grid inverters: 1-year warranty

The warranty period starts 6 months after the date of delivery from the INVT factory and is subject to the formal sales contract. If no contract is signed, this document serves as the governing warranty terms.

For grid-tied inverters: the 10-year warranty applies only to products purchased from 01/06/2022 onwards.

The warranty is valid only for the original purchaser or INVT-authorised distributor, solar retailer, or installer.

2. Warranty Process
In the event of a fault not covered by exclusions, follow these steps:

Complete the Service Claim Form, including:

• Product model and serial number

• System configuration (panel strings, layout, grid details)

• Fault description (error code, display message, photos/videos)

Provide a copy of the invoice or warranty certificate

Contact INVT service staff or an authorised service agency and submit the Service Claim Form along with supporting materials

INVT will respond with a solution within 48 hours on working days

INVT reserves the right to reject incomplete claims. The customer assumes responsibility for any resulting loss or consequence

3. Service Provision
If a product defect is confirmed during the valid warranty period, INVT may offer:

On-site service or remote technical support
Shipment of spare parts with guidance for customer-side replacement
Return of the product to the nearest INVT repair centre
Replacement with an equivalent model (remaining warranty is transferred to the new unit)

Defective units must be returned in their original packaging

4. Transportation Terms
For valid warranty claims: INVT covers freight; customer is responsible for customs clearance
For expired or void warranties: customer bears all related transportation and handling costs

5. Warranty Extension
INVT offers paid extended warranty services if all conditions are met:

For inverters ≥25kW: must apply within 12 months from manufacture date
For inverters <25kW: must apply within 30 months from manufacture date
Product must be purchased directly from factory or official distributor

Required for extension:

• Proof of purchase

• Product serial number

• Completed application form

Once processed, INVT will issue a Warranty Extension Certificate

No extension is available after the time window expires. Refer to the extension policy for full terms

6. Warranty Exclusions
This warranty does not cover defects resulting from:

Use outside the Operating Manual specifications
Unauthorised repair or reconstruction
Storage-related damage
Environmental conditions causing abnormal aging
Force majeure (earthquake, storm, lightning, fire, flood, abnormal voltage, etc.)
Transportation damage or loss
Misuse, negligence, or operation outside standard application range

7. Consumer Rights
This warranty does not limit or replace statutory rights under European Consumer Law. Consumers are entitled to:

Replacement or refund in case of major failure
Compensation for foreseeable losses
Repair or replacement for goods not meeting acceptable quality standards

8. Contact Details
INVT Solar Technology (Shenzhen) Co., Ltd.
INVT Guangming Technology Building, Songbai Road, Matian, Guangming District, Shenzhen, China
Tel: +86 755 2353 5666
Website: www.invt-solar.com
Email: solar-service@invt.com.cn
