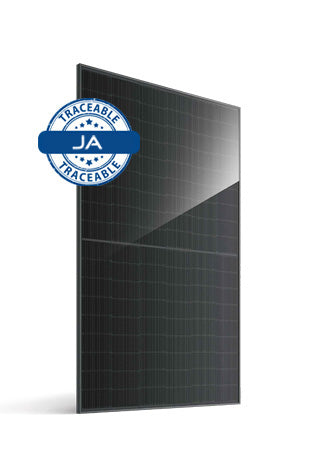

JA Solar 460W JAM54D41 LR N-Type Full Black Dual Glass Solar Panel – Pack of 8 (3.68kW)

The JA Solar JAM54D41-460/LR is a 108-cell N-type TOPCon monofacial module with a full black appearance.

Dual 1.6 mm glass replaces a polymer backsheet, improving resistance to moisture and micro-cracking. The module is fitted with MC4-EVO2A connectors on 1.2 m cables.

This pack of 8 modules provides 3.68kWp.

Supplied as a pack of 8 modules on a single pallet.

Supplied through authorised UK distribution, dispatched directly from the distributor to your address.

Electrical (STC, per module)

• Rated power: 460W
• Module efficiency: 23.0%
• Open circuit voltage (Voc): 40.6V
• Short circuit current (Isc): 14.43A
• Voltage at Pmax: 33.68V
• Current at Pmax: 13.66A
• Temperature coefficient of Pmax: -0.29%/°C
• Maximum system voltage: 1500V DC
• Maximum series fuse rating: 25A

Mechanical

• Cell type: N-type TOPCon, 108 cells
• Glass: Dual glass, 1.6 + 1.6 mm
• Colour: Full black
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 22.0 kg
• Connector: MC4-EVO2A

Pack

• Modules per pack: 8
• Total power: 3.68kWp

Warranty

• Product: 25 years
• Performance: 30-year linear
