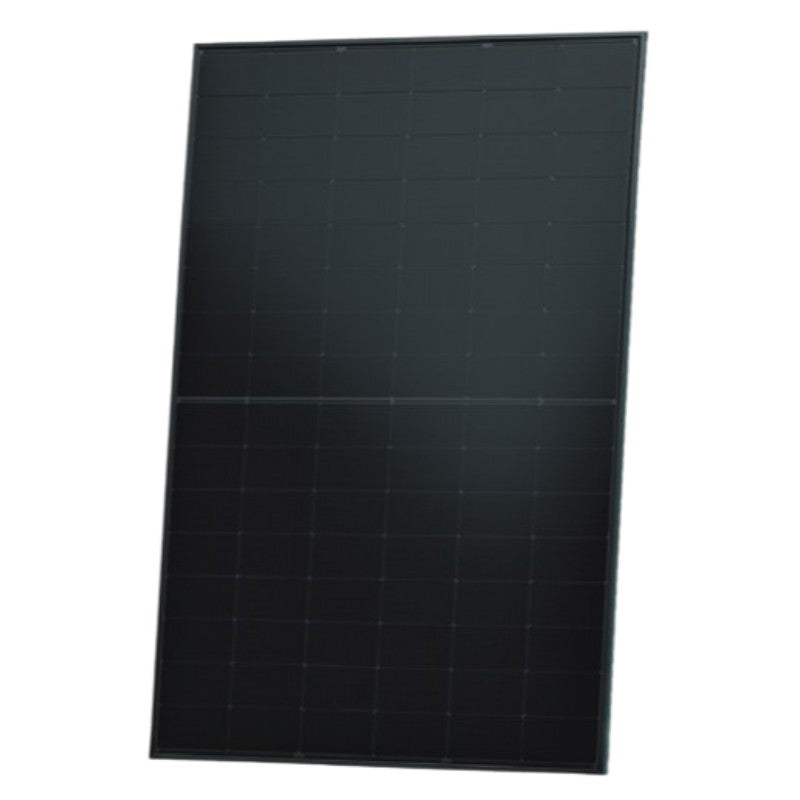

Jinko Tiger Neo 460W 48HL4M-DB N-Type Full Black Dual Glass Solar Panel – Pack of 8 (3.68kW)

The Jinko Tiger Neo JKM460N-48HL4M-DB is a 96-cell N-type TOPCon module in a full black dual glass format.

The module uses 2.0 + 2.0 mm glass and is rated for 6000 Pa snow load and 4000 Pa wind load, with an IP68 junction box.

This pack of 8 modules provides 3.68kWp.

Supplied as a pack of 8 modules on a single pallet.

Supplied through authorised UK distribution, dispatched directly from the distributor to your address.

Electrical (STC, per module)

• Rated power: 460W
• Module efficiency: 23.02%
• Open circuit voltage (Voc): 36.38V
• Short circuit current (Isc): 15.86A
• Voltage at Pmax: 30.71V
• Current at Pmax: 14.98A
• Temperature coefficient of Pmax: -0.29%/°C
• Maximum system voltage: 1500V DC
• Maximum series fuse rating: 30A

Mechanical

• Cell type: N-type TOPCon, 96 cells
• Glass: Dual glass, 2.0 + 2.0 mm
• Colour: Full black
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 24.0 kg
• Mechanical load: 6000 Pa snow, 4000 Pa wind

Pack

• Modules per pack: 8
• Total power: 3.68kWp

Warranty

• Product: 25 years
• Performance: 30-year linear
