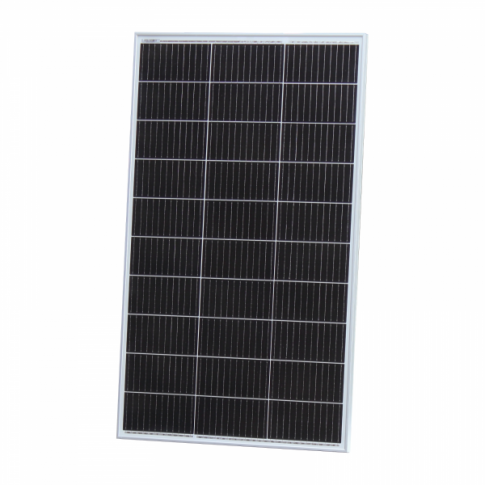

Photonic Universe 150W Monocrystalline Solar Panel

The Photonic Universe 150W monocrystalline solar panel is designed for permanent outdoor installations where reliable 12V power is required. It provides stable and efficient energy generation for a wide range of applications, including camper vans, motorhomes, boats, garden sheds, farms, and remote systems such as telecommunications and monitoring equipment.

The panel delivers 150W peak output using high-efficiency monocrystalline cells and innovative multi-busbar technology for improved performance and durability. Its IP-rated waterproof construction and corrosion-resistant aluminium frame ensure long-term operation in various weather conditions.

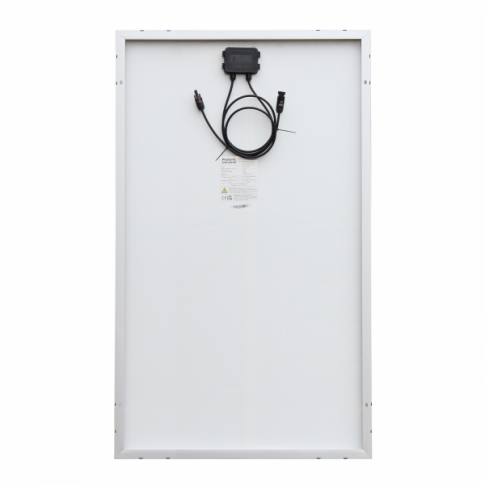

Equipped with two 90 cm solar cables (4.0 mm²) and MC4 connectors, the panel supports simple connection to other panels or charge controllers. It is suitable for both battery charging and direct power supply for devices not sensitive to voltage fluctuations.

Authorised retailer of Photonic Universe.

Specification

• Rated Power: 150W
• Cell Type: Monocrystalline multi-busbar cells
• Maximum Power Voltage (Vmp): 17.31V
• Maximum Power Current (Imp): 8.67A
• Open Circuit Voltage (Voc): 20.92V
• Short Circuit Current (Isc): 9.23A
• Power Tolerance: ±3%
• Cable Length: 2 × 90 cm (4.0 mm²) solar cable
• Connector Type: MC4 male/female
• Frame Material: Anodised aluminium
• Mounting Holes: 4 pre-drilled
• Dimensions: 1120 × 670 × 30 mm
• Weight: 8.0 kg
• Application: 12V battery charging and direct-power systems
