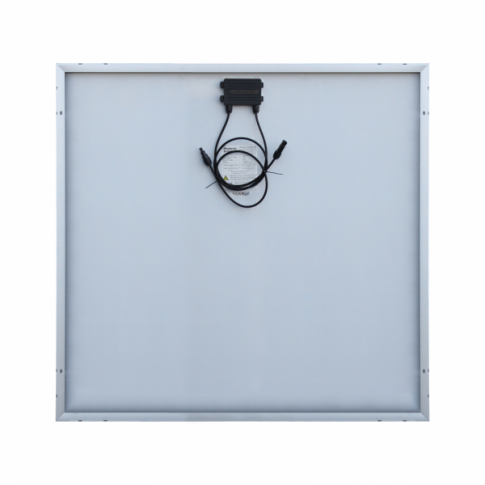

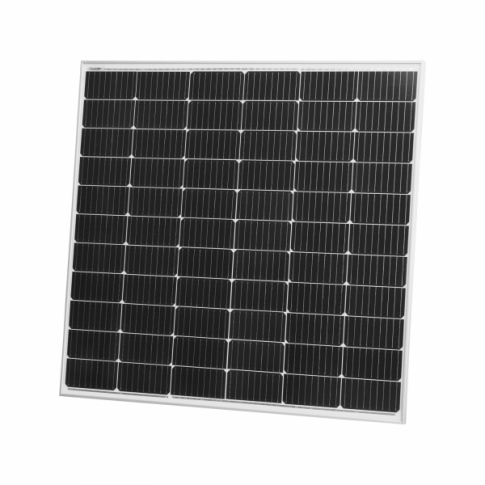

Photonic Universe 200W Monocrystalline Solar Panel

The Photonic Universe 200W monocrystalline solar panel is a high-efficiency module designed for permanent outdoor installations where reliable 12V power is required. It provides free, clean energy for a variety of off-grid applications including camper vans, motorhomes, boats, sheds, farms, and remote sites such as telecommunications or monitoring equipment.

This panel uses advanced multi-busbar monocrystalline cells that deliver excellent performance and higher energy yield in limited space. Its sealed aluminium frame and waterproof construction ensure long-term durability and reliable operation in all weather conditions.

Supplied with two 90 cm solar cables (4.0 mm²) and MC4 connectors for straightforward integration with other panels or solar charge controllers. Suitable for both battery charging and direct-power systems for non-sensitive loads such as pumps or motors.

Authorised retailer of Photonic Universe.

Specification

• Rated Power: 200W
• Cell Type: Monocrystalline multi-busbar cells
• Maximum Power Voltage (Vmp): 17.49V
• Maximum Power Current (Imp): 11.44A
• Open Circuit Voltage (Voc): 21.12V
• Short Circuit Current (Isc): 12.24A
• Power Tolerance: ±3%
• Cable Length: 2 × 90 cm (4.0 mm²) solar cable
• Connector Type: MC4 male/female
• Frame Material: Anodised aluminium
• Mounting Holes: 8 pre-drilled
• Dimensions: 1038 × 992 × 30 mm
• Weight: 10.5 kg
• Application: 12V battery charging and direct-power systems
