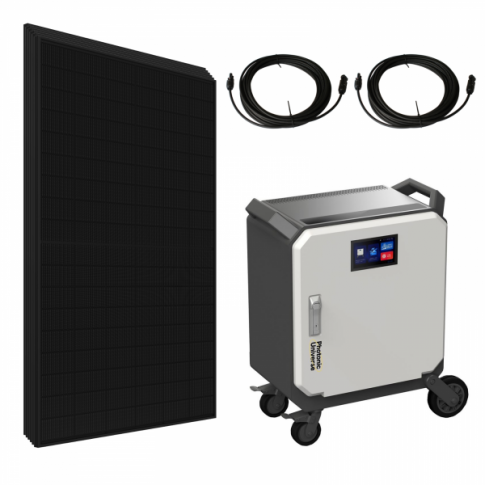

Photonic Universe P5000M-2500 Off-Grid Full System

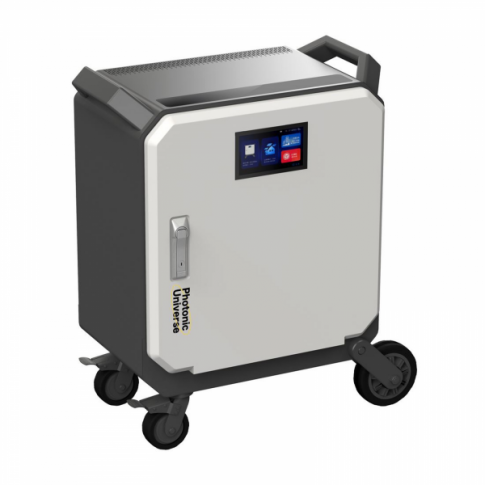

The P5000M-2500 is a complete off-grid solar power system combining a portable solar generator with a 5.12kWh LiFePO₄ battery and a 2.5kW monocrystalline solar panel array. The system integrates the inverter, dual MPPT solar charge controllers, AC/DC distribution, protection systems, and monitoring interfaces into a single self-contained unit.

All major electrical components are factory-installed and pre-configured, eliminating the need for separate inverters or external control equipment. Operation requires only the connection of the supplied solar panels via MC4 connectors. The system delivers up to 5,000W of continuous AC output and supports solar charging up to 7,000W across two MPPT inputs.

Energy storage is provided by a long-life LiFePO₄ battery rated for up to 6,000 cycles at 80% capacity. Monitoring is available via the integrated LCD display, with additional access through Wi-Fi or Bluetooth connectivity. The generator enclosure is IP65-rated, while the solar panels are IP68-rated for outdoor use.

Authorised retailer of Photonic Universe.

Specification

• System model: P5000M-2500
• Continuous AC output power: 5,000 W
• Maximum AC EPS input: 5,000 W
• Maximum AC EPS output: 5,000 W
• AC socket output: 2,000 W per socket
• Number of AC sockets: 4
• Total AC socket output: 5,000 W
• Battery capacity: 5,120 Wh
• Battery chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Battery lifecycle: 6,000 cycles at 80% capacity
• Maximum solar input power: 7,000 W (2 strings)
• Maximum solar input voltage: 500 V @ 14 A per string
• Operating temperature range: 0°C to +40°C
• Dimensions (with base): 722 × 809 × 399 mm
• Dimensions (without base): 651 × 670 × 399 mm
• Weight: 93 kg

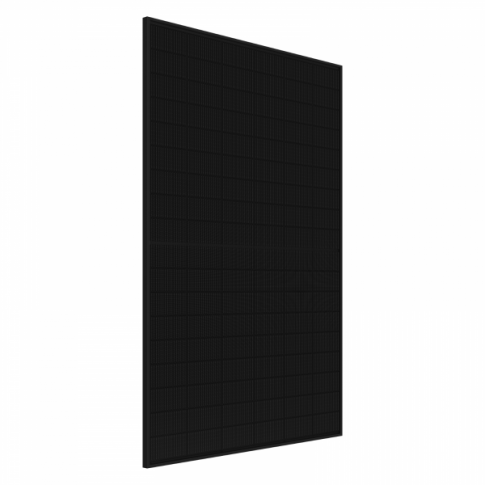

Solar panels (per panel)

• Peak power: 430 W
• Maximum power voltage (Vmp): 32.73 V
• Maximum power current (Imp): 13.14 A
• Open circuit voltage (Voc): 39.09 V
• Short circuit current (Isc): 14.01 A
• Power tolerance: 0 / +5%
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 20.7 kg
• Mounting holes: included
• Integrated solar cable length: 2 × 1.25 m
• Connector type: MC4 male and female waterproof connectors

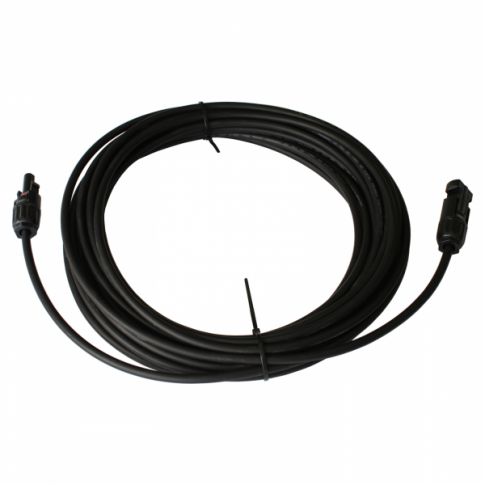

Solar extension cables

• Conductor material: tinned copper
• Cross section: 6.0 mm²
• Insulation and jacket: XLPE (120°C rated)
• Working temperature range: -40°C to +120°C
• Certification: TUV
