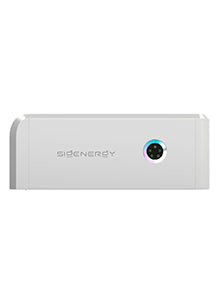

Sigenergy SigenStor EC 3.6 SP 3.6kW Single-Phase Energy Controller

The Sigenergy SigenStor EC 3.6 SP is the single-phase hybrid inverter and energy management unit of the SigenStor modular storage system.

It combines two MPPT solar inputs, a battery power conversion system and an integrated energy management system in one IP66 enclosure, designed to stack directly with SigenStor battery modules.

Backup operation requires the Sigenergy Gateway HomePro SP-F, sold separately.

Grid-connected equipment must be installed by a qualified electrician and notified to the Distribution Network Operator under G98 or G99 as applicable.

Supplied as a single energy controller. Batteries, sensor, mounting kit and gateway are sold separately.

Supplied through authorised UK distribution, dispatched directly from the distributor to your address.

DC and battery

• Rated AC output: 3.6kW
• MPPT trackers: 2
• MPPT voltage range: 50–550V
• Max. DC input voltage: 600V
• Start-up voltage: 100V
• Max. input current: 16A per MPPT
• Battery compatibility: SigenStor BAT 6.0 / BAT 10.0, up to 6 modules per stack

Mechanical and compliance

• Protection rating: IP66
• Weight: 18 kg
• Grid connection: G99, G100
• Monitoring: mySigen app

Warranty

• Product: 10 years
