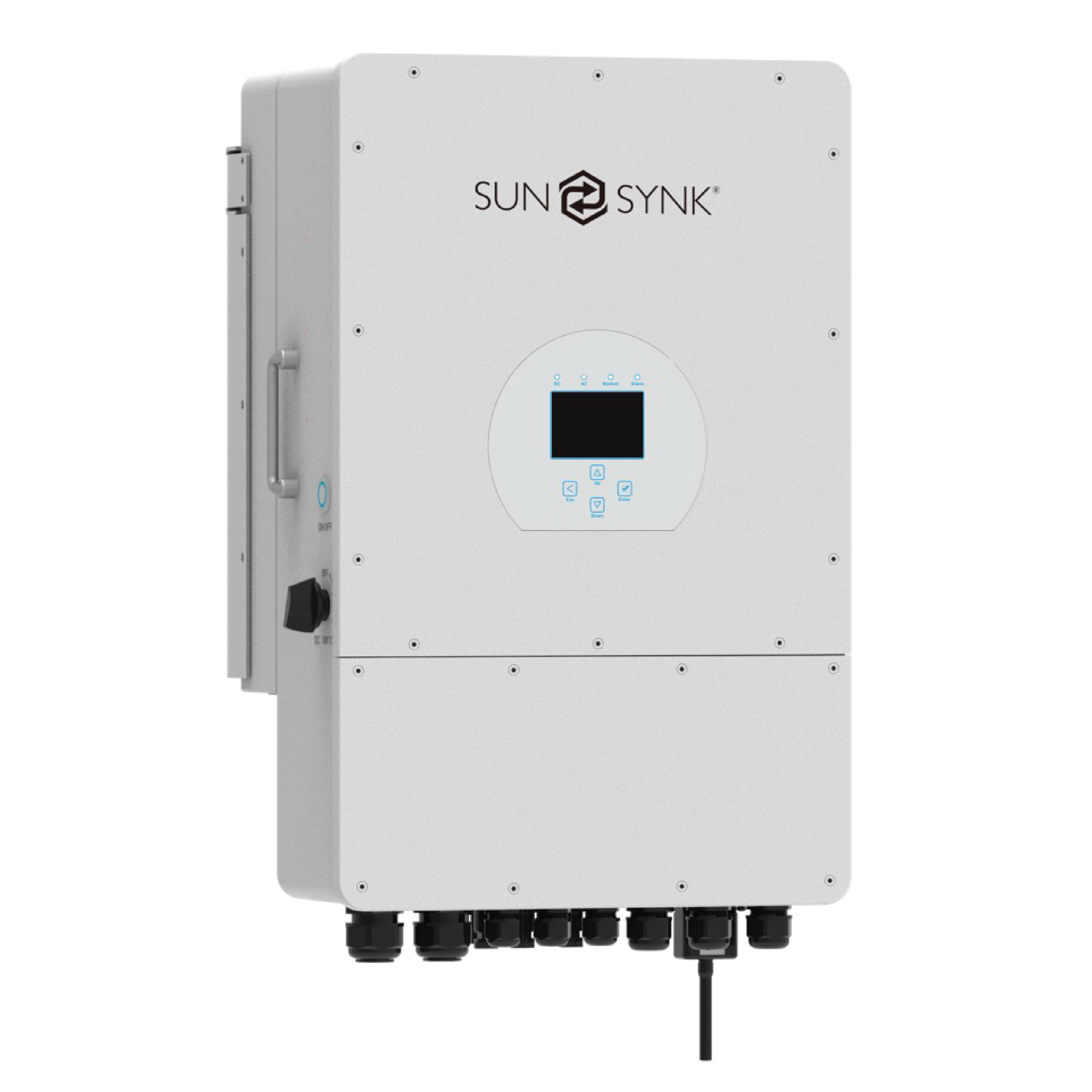

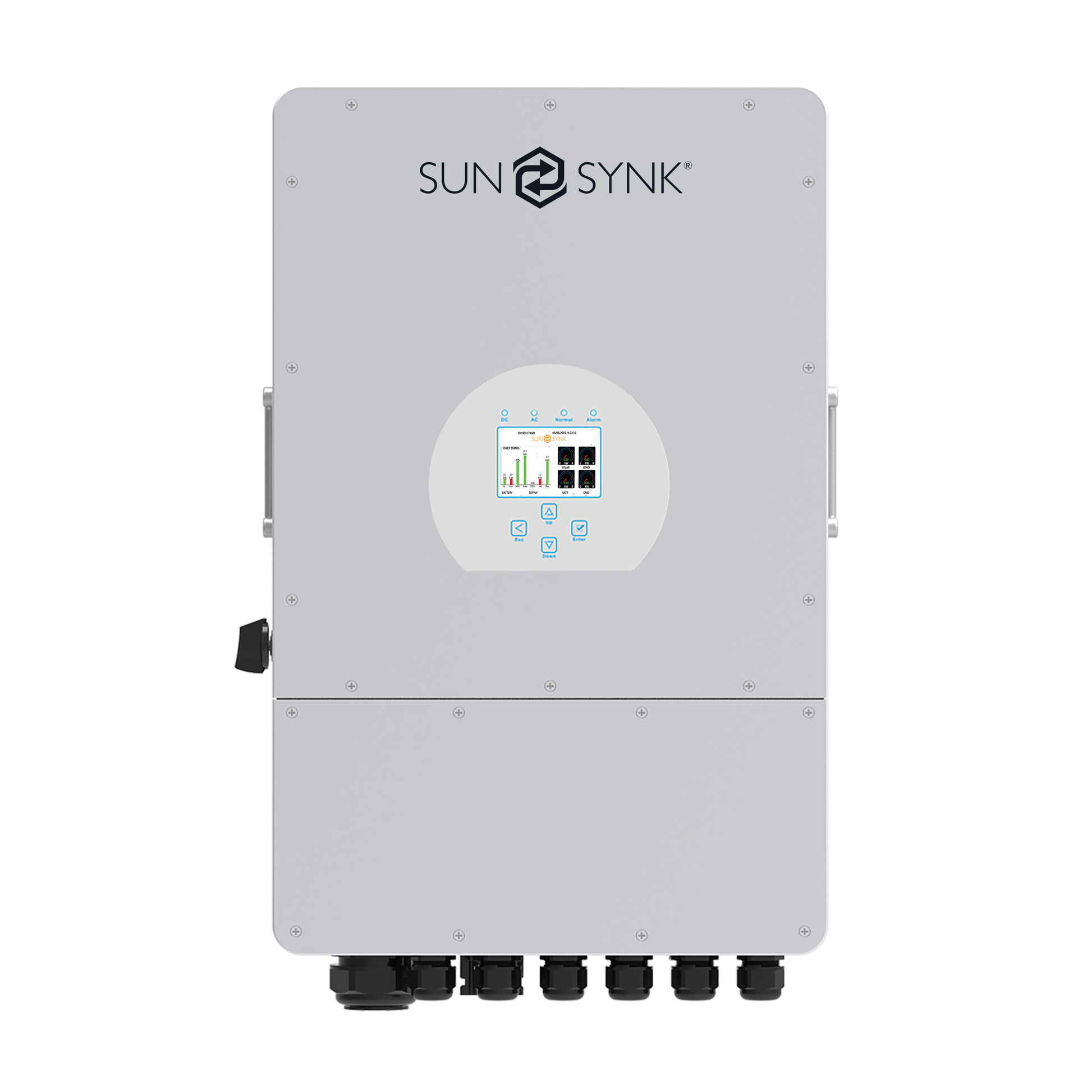

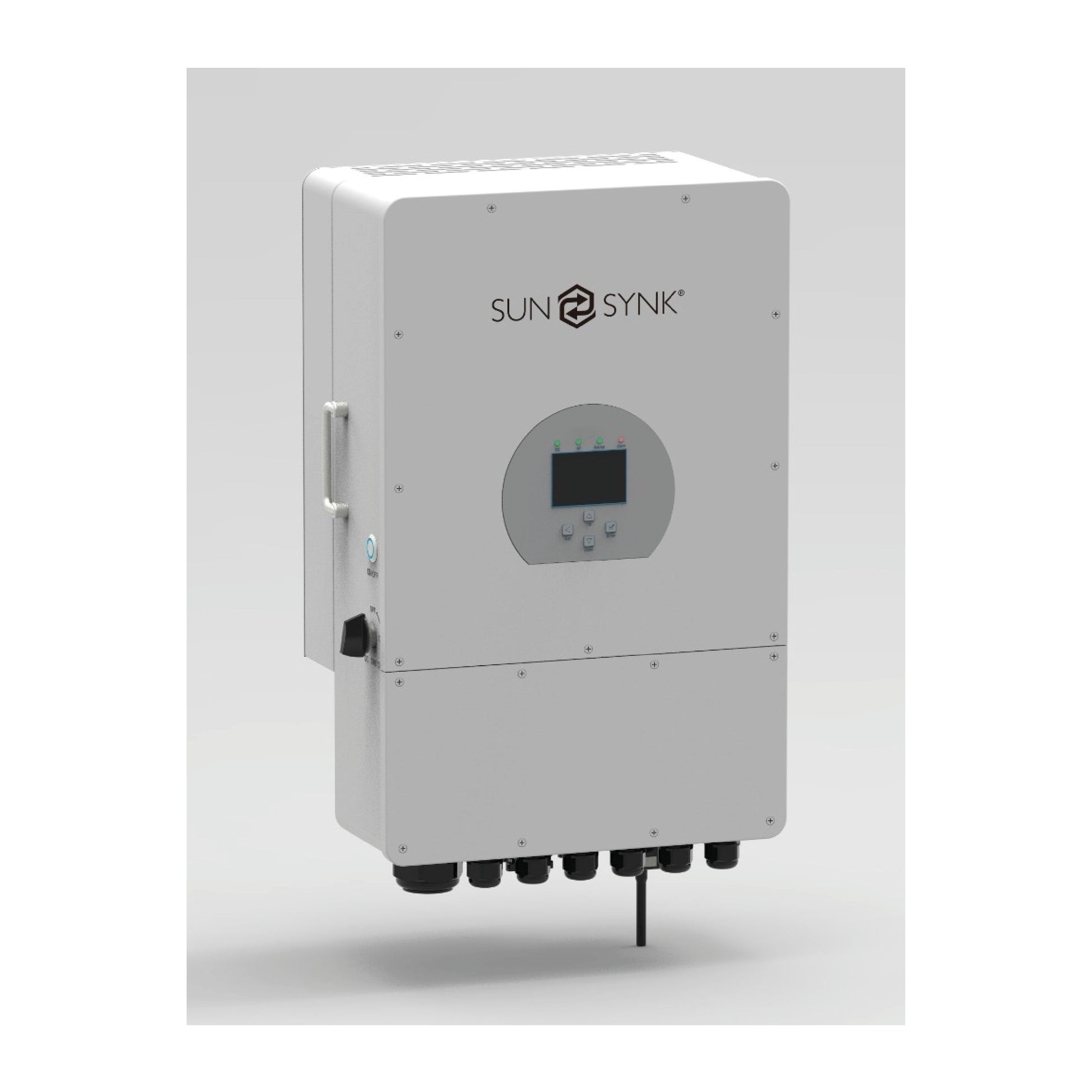

Sunsynk 10.0kW Three Phase Hybrid Inverter

The Sunsynk 10.0kW Three Phase Hybrid Inverter is a three-phase solar inverter designed for residential and commercial energy systems. It manages power flow between solar panels, batteries, the grid, and backup generators, supporting both on-grid and off-grid operation.

The inverter supports up to 13,000W PV input power and a maximum charge and discharge current of 210A. It operates with a 48V low-voltage battery configuration for safe and efficient energy conversion. The unit supports unbalanced three-phase output, allowing flexible load distribution while maintaining correct phase rotation.

The system features IP65-rated weather protection, intelligent air cooling, and low-noise operation below 45dB. Integrated protection systems include arc fault detection, surge protection, lightning protection, reverse polarity prevention, and anti-islanding functionality.

Authorised retailer of Sunsynk.

Specification

• Rated AC Output Power: 10.0kW
• PV Input Power: 13,000W
• PV Input Voltage Range: 125–850V
• Maximum PV Input Voltage: 1,000V
• Maximum PV Input Current (per MPPT): 26A
• MPPT Trackers: Dual MPPT
• Maximum Efficiency: 97.6%
• Battery Voltage: 48V (Low Voltage)
• Maximum Charge/Discharge Current: 210A
• AC Output Type: Three Phase (Unbalanced Support)
• AC Output Voltage: 400V ±5%
• AC Frequency: 50/60Hz
• Cooling Method: Intelligent air cooling
• Enclosure Rating: IP65
• Protection Features: Arc fault detection, surge protection, lightning protection, reverse polarity, anti-islanding, residual current monitoring
• Communication Ports: RS485 / CAN / Wi-Fi
• Operating Temperature Range: –25°C to +60°C
• Dimensions: 670 × 580 × 250 mm
• Weight: 33 kg
