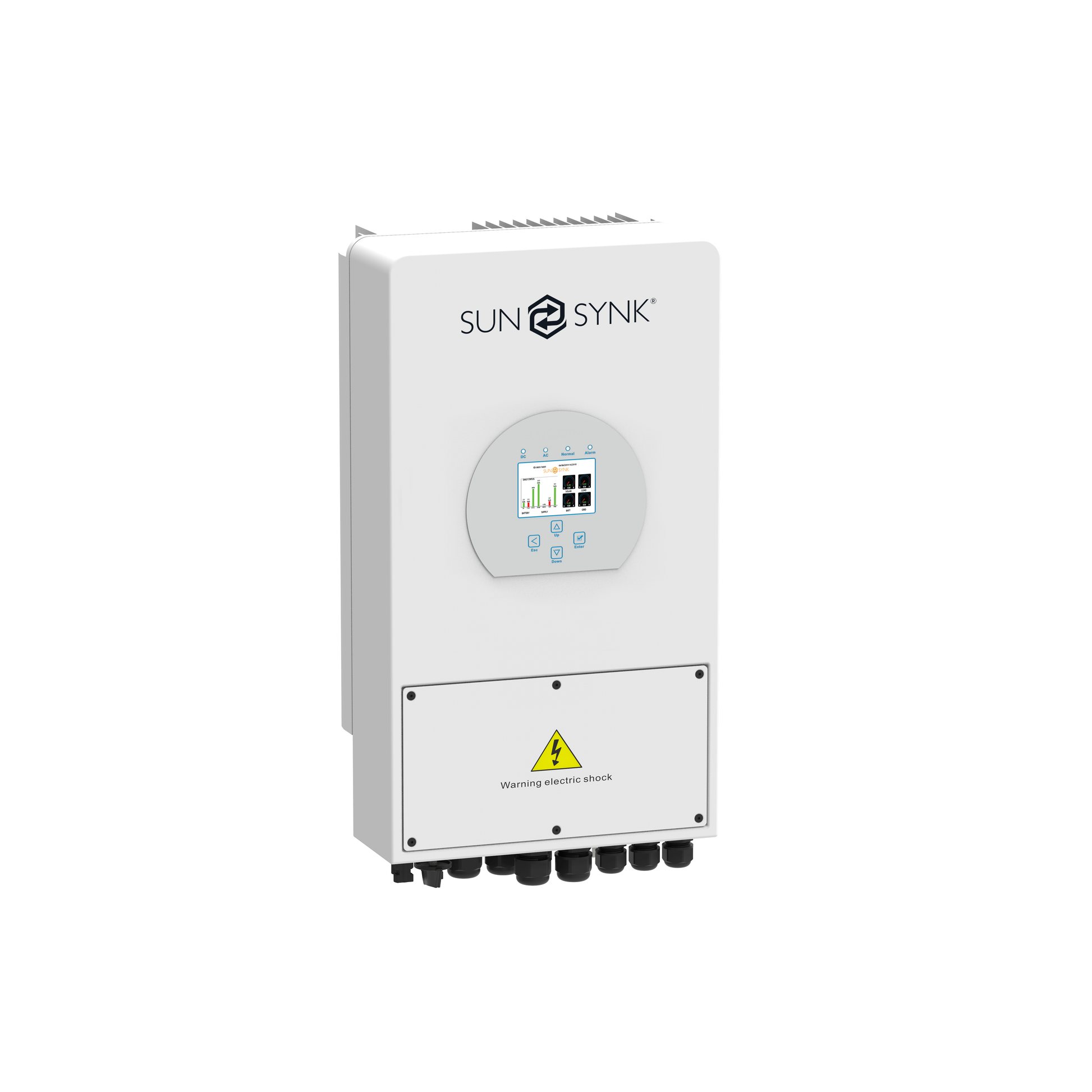

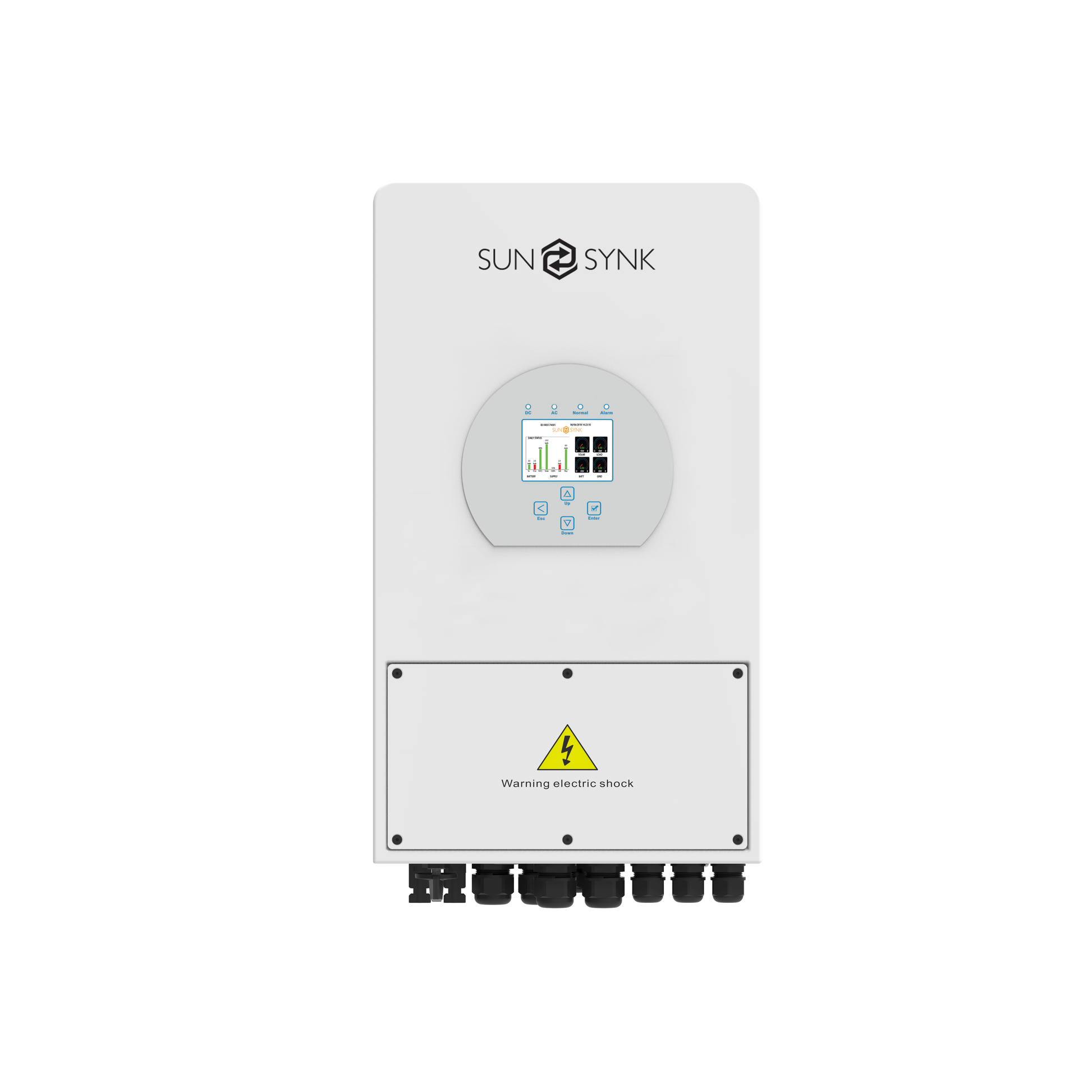

Sunsynk Ecco 5.0kW Single Phase Hybrid Inverter

The Sunsynk Ecco 5.0kW Hybrid Inverter is a high-performance solar power solution engineered for residential and commercial applications across the UK. Combining dual MPPT technology with intelligent battery management, it ensures maximum energy efficiency, flexibility, and seamless power distribution between solar panels, batteries, and the grid.

With up to 6500W PV input power and a 120A charge/discharge capacity, the Sunsynk Ecco 5.0kW Hybrid Inverter provides exceptional adaptability for both on-grid and off-grid systems. Supporting lithium-ion and lead-acid batteries, it enables efficient daytime energy use, reliable night-time storage, and uninterrupted backup power during grid outages — optimising self-consumption and long-term energy savings.

Built for durability and all-weather performance, this single-phase inverter features IP65 protection, smart cooling, and over 97% conversion efficiency. Its wall-mounted design with silent operation (<30dB) and advanced communication interfaces (RS485 and CAN) delivers exceptional reliability and easy integration with modern UK solar installations.

Achieve superior energy independence and control with the Sunsynk Ecco 5.0kW Hybrid Inverter — precision-engineered for long-lasting performance and sustainable power management.

Authorised retailer of Sunsynk.

Specifications

Rated Output Power: 5.0kW
Max. PV Input Power: 6500W
Battery Type: Lead-acid or Li-Ion
Battery Voltage Range: 48V (40–60V)
Max. Charge/Discharge Current: 120A
PV Input Voltage: 370V (125–500V)
MPPT Operating Range: 150–425V
No. of MPPTs / Strings per MPPT: 2 / 1+1
Rated Output Voltage: 220/230V (Single Phase)
Rated Output Current: 22.7A
Max. Efficiency: 97.6%
European Efficiency: 96.5%
Noise Level: <30 dB
Cooling Method: Smart cooling system
Protection: Lightning, anti-islanding, reverse polarity, overcurrent, surge protection (Type II DC/AC)
Ingress Protection: IP65 (weatherproof)
Communication: RS485, CAN (BMS integration)
Dimensions: 330 × 433 × 238 mm
Weight: 17.5 kg
Certifications: EN 50549-1, IEC/EN 62109-1/2, EMC Standards
Warranty: 5 years (extendable to 10 years when installed with Sunsynk battery)

Warranty

SUNSYNK WARRANTY POLICY

Version 2.0 – Consolidated Summary for UK & Ireland

1. Scope of Warranty

This warranty covers Sunsynk inverters and battery products sold through authorised Sunsynk distributors or retailers. The policy applies to products installed and operated in accordance with Sunsynk’s official installation manuals and safety standards. This warranty does not serve as a performance guarantee but covers manufacturing defects and workmanship under normal operating conditions.

2. Contracting Parties

The warranty applies to the original purchaser or end user of Sunsynk products when purchased from authorised Sunsynk partners. If the product is resold or transferred, the warranty remains valid only if proper proof of purchase and installation documents are provided.

3. Warranty Period

Standard Warranty: All Sunsynk inverters and batteries are covered by a standard 5-year warranty from the date of installation or a maximum of 65 months from the manufacturing date, whichever occurs first.
Extended Warranty: When a Sunsynk inverter is installed together with a Sunsynk battery, the warranty period is automatically extended to 10 years. Additional paid warranty extensions may be available via authorised Sunsynk partners and must be purchased within 36 months of installation.

4. Registration Requirements

To activate and maintain warranty coverage, each product must be registered on the Sunsynk Portal within six months of installation. Required information includes product model and serial number, installation date and location, installer name and company details, and proof of purchase. Failure to register within this timeframe may limit the warranty to the base 5-year coverage.

5. Claim Eligibility and Procedure

Warranty claims can only be submitted by the original installer or an authorised Sunsynk service partner. In case the installer is no longer in operation, the end user may contact Sunsynk directly to appoint a certified local installer at their own cost.
Procedure for submitting a claim:

1. Provide serial number, installation date, fault description, and photos or videos if applicable.

2. A Sunsynk RMA (Return Merchandise Authorisation) form will be issued.

3. Upon validation, Sunsynk may repair the product on-site, replace it with an equivalent model, or issue a refurbished unit of similar performance.
   The defective unit must be returned within 30 days of receiving the replacement.

6. Exclusions and Limitations

This warranty does not cover improper installation, misuse, or unauthorised modification, external damage, corrosion, or force majeure events such as fire, flood, or lightning. It also excludes damage caused by incompatible third-party devices, transport damage, or cosmetic wear that does not affect functionality. If the returned product is found to be fault-free or excluded under these terms, inspection and shipping fees may apply.

7. Service and Replacement Terms

Sunsynk reserves the right to provide a replacement unit that may differ in model, colour, or specifications but offers equal or superior performance. Repaired or replaced products continue under the remaining period of the original warranty; no new warranty period begins.

8. Limitation of Liability

Sunsynk’s liability is strictly limited to the repair or replacement of defective equipment. Sunsynk shall not be responsible for indirect, consequential, or financial losses, including loss of revenue or energy generation during downtime.

9. Legal Rights

This warranty operates alongside statutory consumer rights under applicable UK law and does not limit or exclude such rights. Customers may have additional protections under national legislation beyond this Sunsynk policy.

10. Contact Information

Sunsynk UK Ltd
17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN, United Kingdom
Email: service@sunsynk.com
Website: www.sunsynk.com
