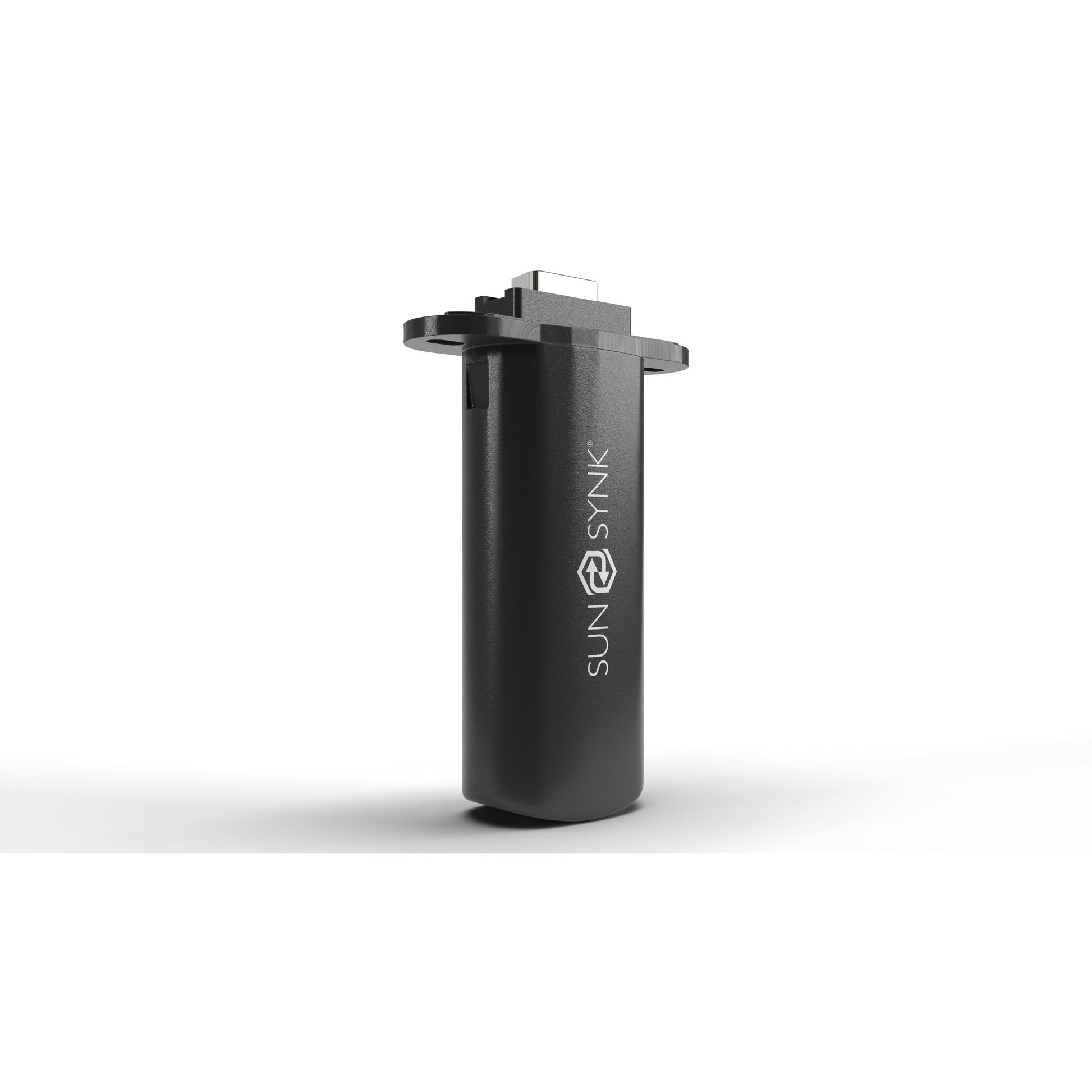

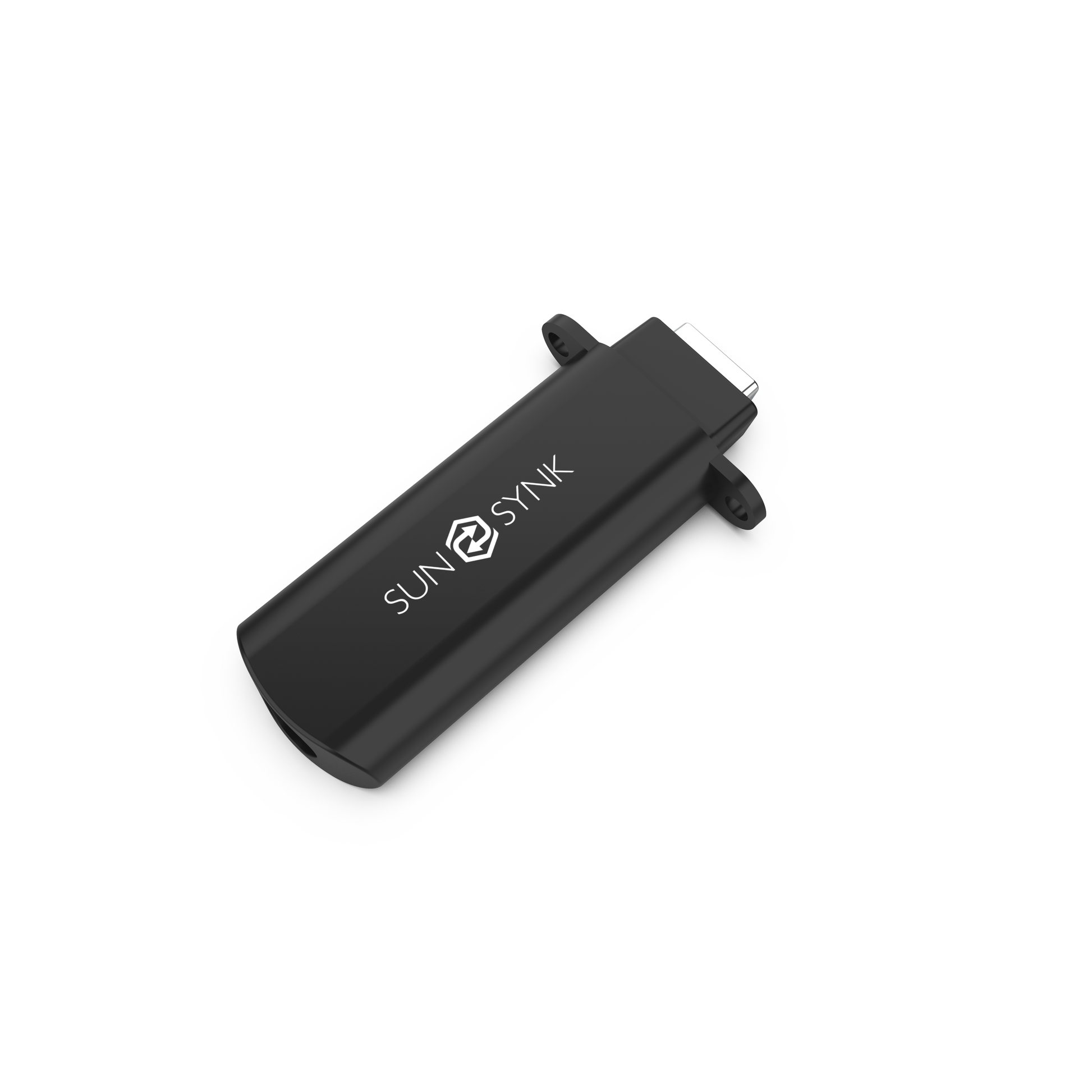

Sunsynk Wi-Fi Inverter Data Logger

Sunsynk Wi-Fi data logger is designed to enable remote monitoring and management of compatible Sunsynk inverters. The device connects directly to the inverter via the DB9 communication port and transmits operational data to the Sunsynk monitoring platform over a Wi-Fi network. It allows users and installers to monitor system performance, review energy data, and manage inverter settings remotely through the Sunsynk web portal and mobile application.
Authorised retailer of Sunsynk.

Specification

• Product type: Inverter data logger
• Communication method: Wi-Fi
• Inverter connection: DB9 interface
• Network configuration: Web-based local setup
• Monitoring platform: Sunsynk web portal and mobile application
• Supported functions:
• Real-time inverter monitoring
• Energy production and consumption data
• System status and fault notifications
• Remote inverter configuration (permission dependent)
• Remote firmware updates
• Installation type: Plug-in module with screw fixing
• Power supply: Supplied directly from the inverter
• Operating environment: Indoor use
• Compatibility: Sunsynk inverters equipped with DB9 communication port
