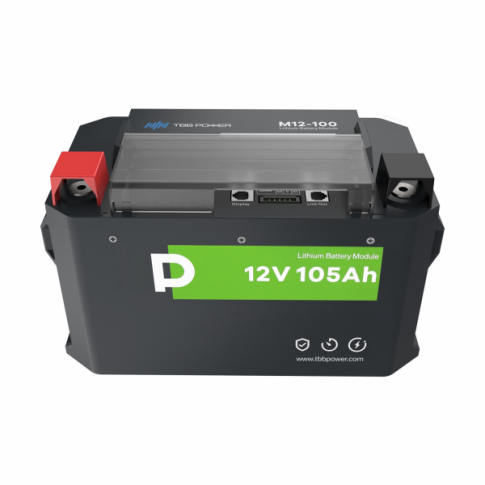

TBB Power 105Ah 12V LiFePO₄ Battery with Heating & 200A BMS – For Solar, Wind, Off-Grid & Leisure Applications
TBB Power 105Ah 12V LiFePO₄ Battery with Heating & 200A BMS – For Solar, Wind, Off-Grid & Leisure Applications
Couldn't load pickup availability
TBB Power 105Ah 12V LiFePO₄ Battery with Heating & 200A BMS – For Solar, Wind, Off-Grid & Leisure Applications
Description

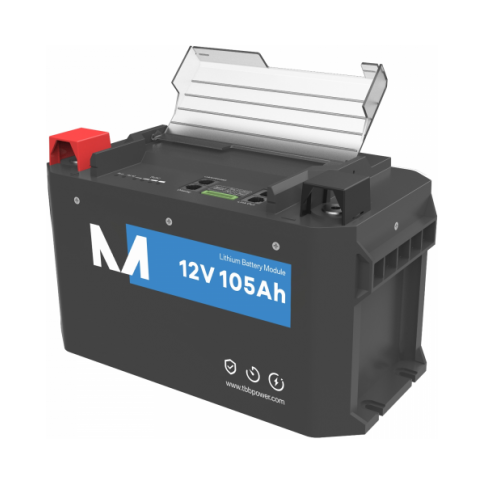

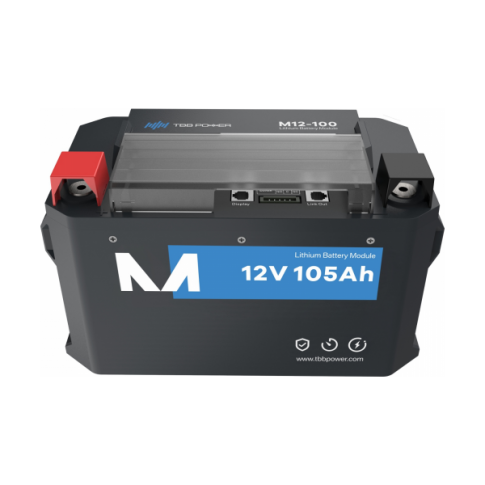

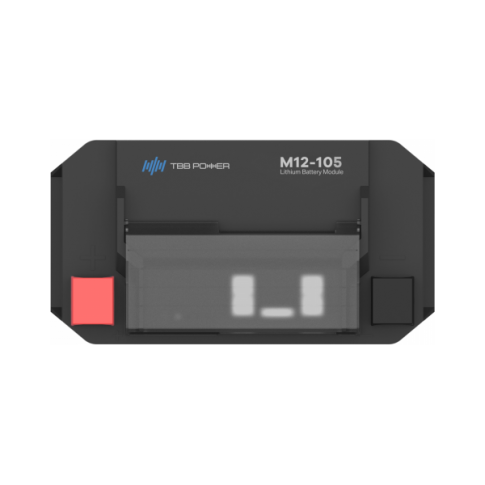

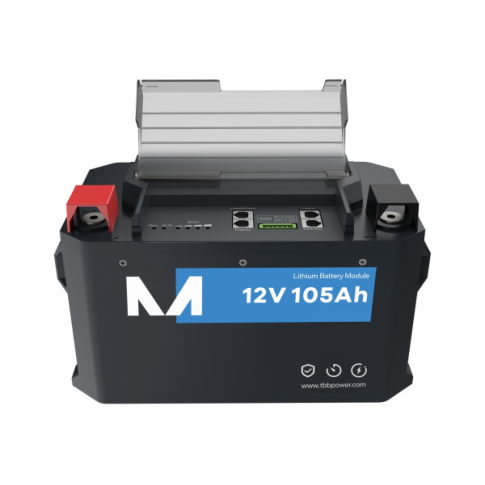

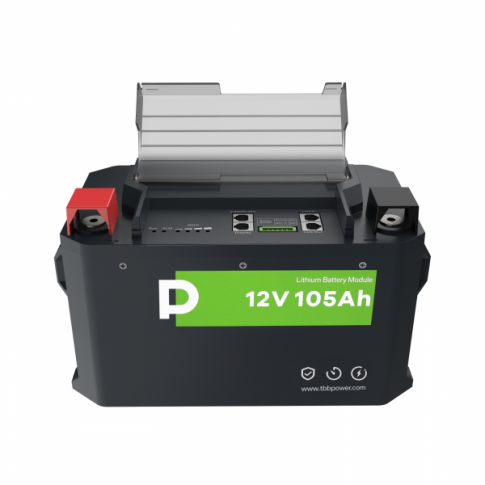

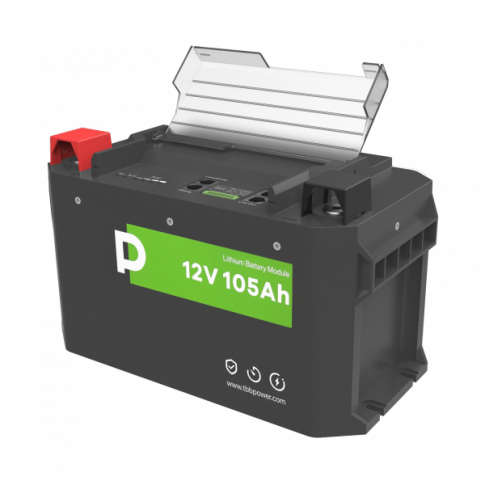

The TBB-M12100 is a high-performance 12V 105Ah Lithium Iron Phosphate (LiFePO₄) battery engineered by TBB Power for demanding off-grid, marine, and mobile energy systems. It features an integrated 200A Battery Management System (BMS), low-temperature heating, and the ability to connect up to 8 units in parallel, making it ideal for scalable energy storage solutions.
Key Features
-
Long Life: Up to 3,000 cycles at 0.5C charge/discharge rate (25°C)
-
200A Smart BMS: Protects against overcharge, over-discharge, short circuit, over-current, and temperature extremes
-
Integrated Heating: Safely charges from -20°C with auto-heating when connected to external power
-
High Power Output: Supports up to 200A discharge current
-
Parallel Ready: Expandable up to 840Ah (8 units)
-
Auto Wake-Up Function: Activates automatically with charging input >14V
-
Low Standby Draw: <50mA active / <0.1mA in deep sleep mode
-
Wide Temperature Range: Operates from -30°C to +60°C
-
Compact & Lightweight: Optimised for space-constrained installations
Optional Accessories
-
MEH-B Remote Display Panel (sold separately): Enables real-time voltage, current, and SoC monitoring, plus remote switching
Applications
-
Off-grid solar and wind systems
-
Campervans and motorhomes
-
Marine and boat power
-
Backup and emergency energy storage
Advanced Protection
-
Short circuit and over-current protection
-
Low/high voltage protection (cell and battery level)
-
Charging/discharging temperature safeguards
-
BMS overheating and external input overvoltage protection
Note:
This product is supplied via Photonic Universe, an authorised distributor of TBB Power products. SolarVoxGreen does not represent TBB Power directly. All warranties, certifications, and technical specifications are in accordance with the manufacturer’s documentation and handled through our supply partner.
Battery specifications
- Nominal voltage: 12.8V
- Nominal capacity: 105Ah
- Nominal energy: 1.34kWh
- Life cycle: 3000 cycles @100% DoD, at 25°C
- Recommended charge voltage: 14.2V
- Maximum charge current: 100A
- Recommended charge current: 50A
- Maximum discharge current: 100A (Continuous)/ 150A (30 minutes)
- Operating charge temperature: from 2°C to +60°C
- Operating discharge temperature: from -30°C to +60°C
- Humidity: 10-90% (RH)

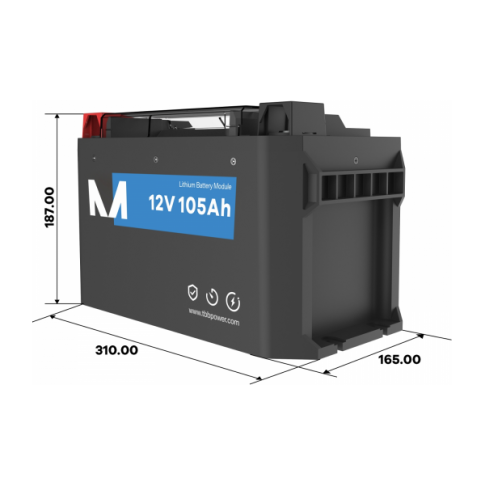

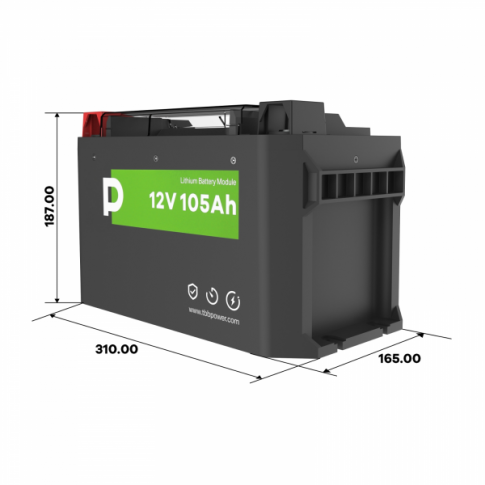

- Size: 310 x 165 x 187 mm
- Weight: 11kg
Warranty
Electrical equipment such as solar charge controllers and inverters have 1 year warranty, unless stated otherwise in our product description. Warranty for our own "Photonic Universe" branded products is provided by Photonic Universe Ltd. If we find any defects in our own products within the warranty period, we will repair or replace such products at our discretion free of charge. Warranty for other products is provided by the product manufacturer and terms and conditions of this warranty might be different from our terms and conditions. Full terms and conditions of the warranty can normally be found in the product manual.
Photonic Universe solar panels are covered by 1 year workmanship warranty in relation to assembly, materials and accessories (connection, cables, diodes, frame etc). In addition, there's a separate performance warranty on solar cells provided by solar cells manufacturers. Most manufacturers of solar cells we use for our solar panels provide the standard industry warranty, which is that solar cells are guaranteed to produce at least 90% of nominal power in 10 years and 80% of nominal power in 25 years.
If you suspect a product defect within the warranty period, please contact us by phone or email with a detailed description of the problem. If the problem cannot be solved remotely and an examination is required, you will be asked to send the item back to us for testing at your cost. If we are involved into repair / replacement of the product and the problem is covered by the warranty, we will return the repaired / replaced item to you at our cost. If the item you sent to us under warranty is in good working condition and no defect is found, it will incur a test service charge and the shipping cost to send the item back to you.
