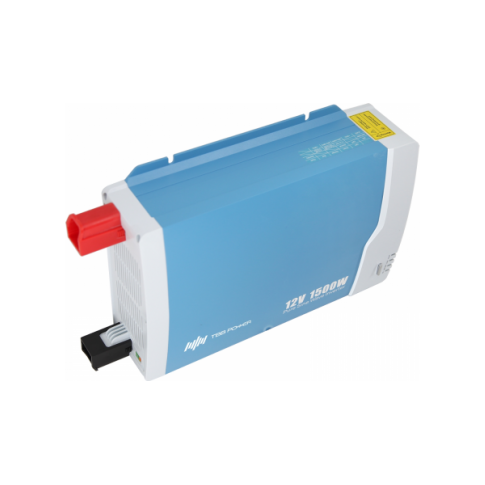

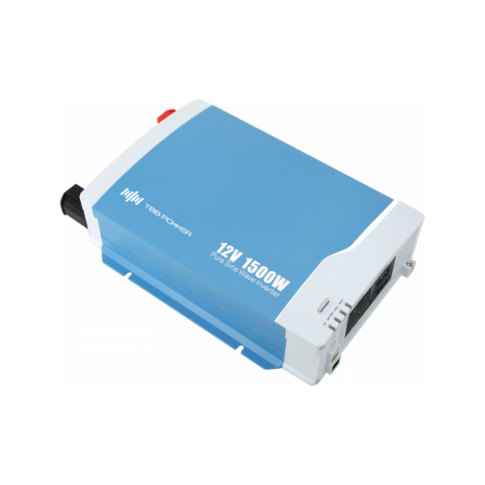

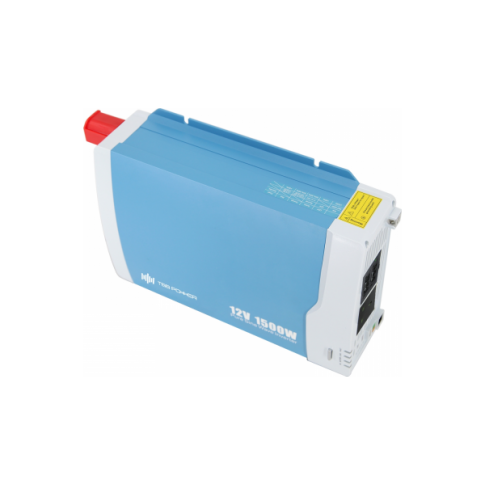

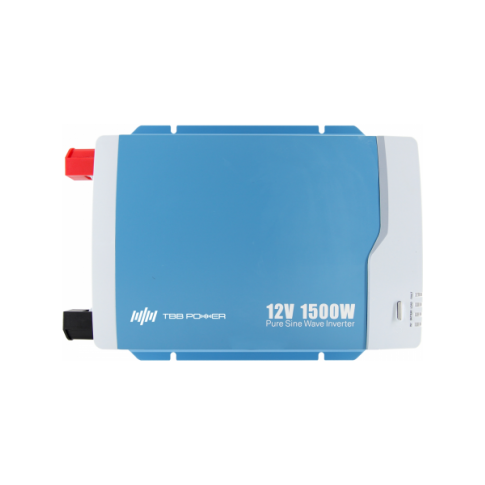

TBB Power 1500W 12V Pure Sine Wave Inverter with Integrated AC Bypass

The TBB eRay 1500W inverter delivers clean and stable AC power, ideal for RVs, utility vehicles, boats, and off-grid systems. Designed to power demanding appliances such as coffee machines, microwaves, and sensitive electronics, it ensures high efficiency, safe operation, and reliable performance even in harsh conditions.

Key Features:

• Pure sine wave output for smooth and stable power

• Full 1500W continuous output at 35°C ambient temperature

• Compact, lightweight high-frequency design for easy installation

• 200% surge power (1 second) to support high start up loads

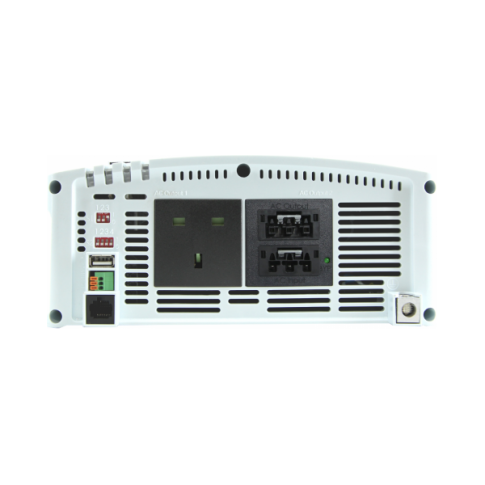

• AC bypass functionality for seamless switching to grid/shore power (bypass model only)

• Power saving mode with adjustable thresholds to extend battery life

• Built-in 5V/2A USB charging port for mobile devices

• Configurable output voltage and frequency (via DIP switch)

• Thermally controlled cooling fan for efficient and quiet operation

• LED indicators for system status, load, battery level, and faults

Advanced Protection:

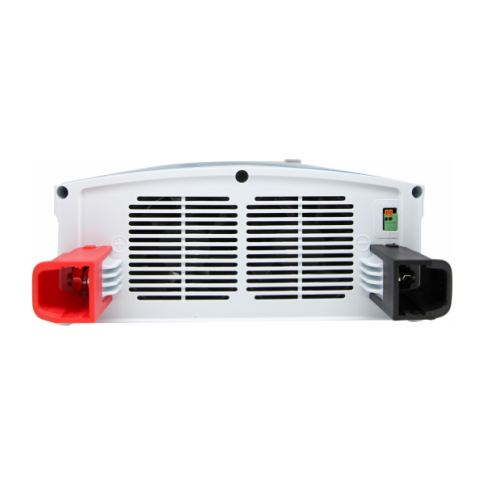

• Reverse polarity protection

• Under/over voltage protection

• Overload and over-temperature shutdown

• Short circuit protection

• Integrated ground relay and bypass output for safety

Smart Control & Connectivity:

• RS485 communication port for remote monitoring and integration

• Dry contact input/output for external automation

• Optional remote controller available

Energy Management:
The intelligent power-saving mode detects load every 6 seconds and reduces standby consumption when power demand is low, restoring full power instantly when needed.

Ideal for off-grid applications where space, efficiency, and performance matter.

Authorised retailer of TBB Power.

Inverter specifications

• Nominal battery voltage: 12/24VDC
• Continuous power output: 1500W (220-240V AC)
• Maximum power output (1 minute): 1600W
• Output waveform: Pure sine wave
• Maximum bypass output current: 20A
• Transfer time: <30ms
• Peak efficiency: 90%
• THD: <3%
• Operating temperature: -20°C to +40°C
• Humidity: 10-95% RH
• Size: 403 x 256 x 99 mm
• Weight: 4.6 kg
