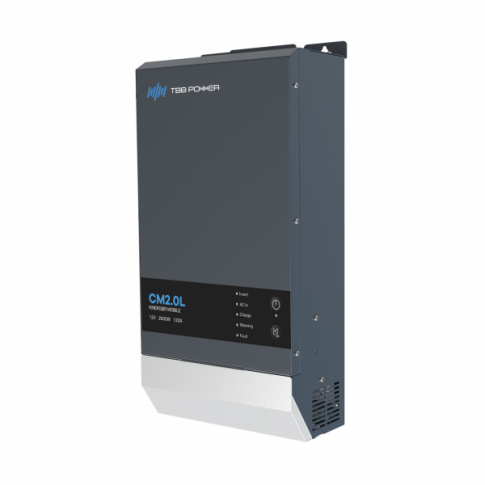

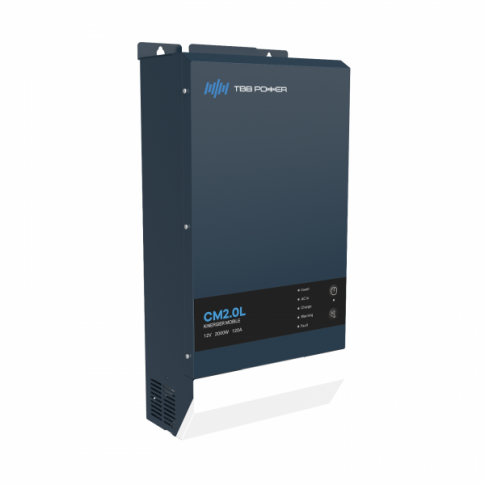

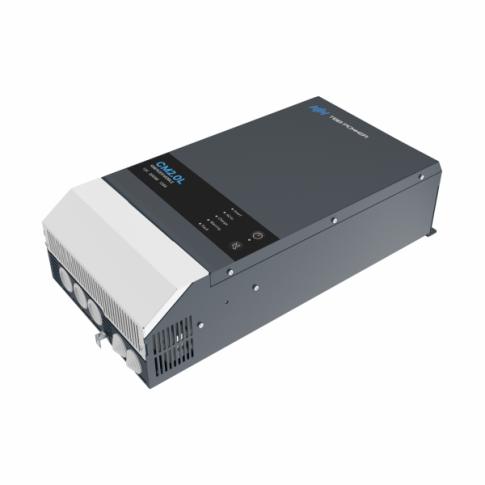

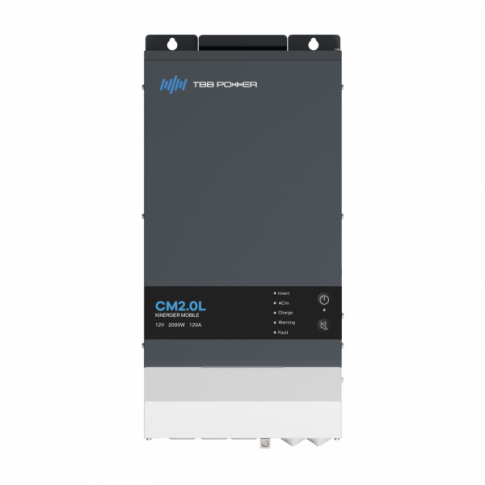

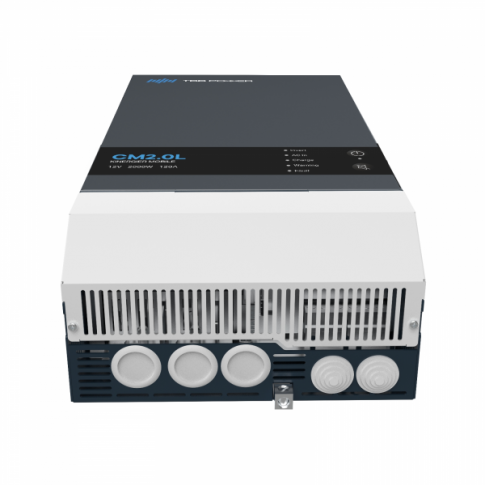

TBB Power 2000W 12V Inverter Charger with Bi-directional Function – Kinergier Mobile Series

The TBB Power Kinergier Mobile 2000W 12V Inverter-Charger is a bi-directional power unit designed for mobile and off-grid energy systems such as RVs, boats, vans, and utility vehicles. It combines inverter and charger functionality to provide AC power and efficient battery charging from grid or generator sources.

The inverter delivers 2000W continuous pure sine wave output and allows peak power up to 4000W. It includes a transfer time below 2ms for uninterrupted operation when switching between shore power, generator, or battery supply.

The unit supports multiple battery types including AGM, GEL, Flooded, Lead-Carbon, and Lithium, with built-in multi-stage charging and BMS communication for lithium batteries. It also features an auxiliary 3A charger for maintaining starter batteries and includes a temperature sensor for accurate charging control.

Authorised retailer of TBB Power.

Specification

• Nominal Battery Voltage: 12V DC
• Continuous Power Output: 2000W (220–240V AC)
• Peak Power: 4000W
• Output Waveform: Pure sine wave
• Maximum Mains AC Charging Current: 120A
• AC Transfer Current: 32A
• Transfer Time: <2ms
• Peak Efficiency: 93%
• Auxiliary Charger: 3A for starter batteries
• Battery Compatibility: AGM, GEL, Flooded, Lead-Carbon, Lithium (with BMS integration)
• Cooling Method: Intelligent fan-assisted
• Protection Features: Overload, short circuit, overheat, reverse polarity, deep discharge
• Safety: Ground relay protection for off-grid use
• Protection Rating: IP20
• Operating Temperature Range: –20°C to +65°C
• Humidity: Up to 95% (non-condensing)
• Altitude Limit: <2000m
• Dimensions: 510 × 245 × 135 mm
• Weight: 17 kg
• Communication Options: TBB-MCK remote monitoring (optional)
