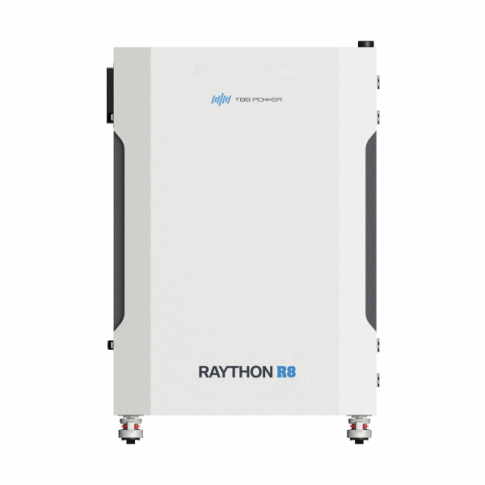

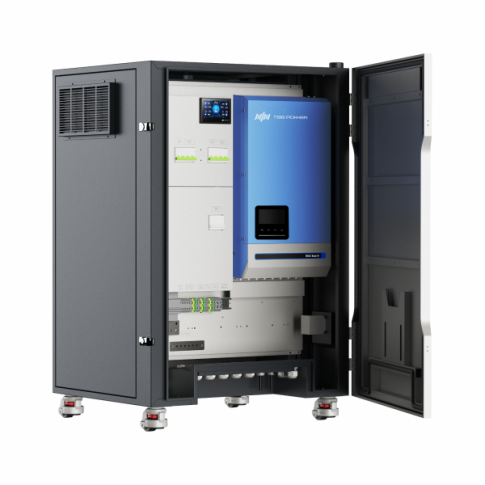

TBB Power Raython-R8 8kW All-in-One Solar Power System with 4 x ES100II Batteries

The TBB Power Raython-R8 is a fully integrated all-in-one solar energy storage system designed to provide complete off-grid power for remote homes, holiday properties, cabins, agricultural facilities, and hybrid generator applications. The system combines an 8kW 48V hybrid inverter charger, lithium iron phosphate battery storage, intelligent energy management, and monitoring within a single IP54-rated cabinet for simplified installation and reliable operation.

Engineered for standalone energy systems, the Raython-R8 enables independent power generation, storage, and distribution without reliance on utility grid infrastructure. Integrated Automatic Generator Start (AGS) functionality allows coordinated generator support when required, ensuring continuous power availability while improving fuel efficiency.

Dual MPPT solar inputs support flexible PV array design, while Power Assist enables temporary load support by combining inverter and generator power. Fast transfer switching supports uninterrupted operation of connected appliances and critical loads.

The integrated energy management system prioritises loads, balances available energy sources, and enables remote monitoring through the TBB E4 display and NOVA web/mobile platform.

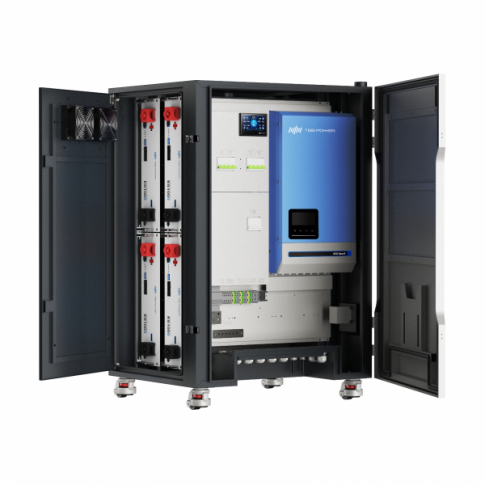

The system is supplied as a complete cabinet-based solution suitable for indoor or sheltered outdoor installation.

Authorised retailer of TBB Power.

Specification

System

Rated output power: 8000W
Nominal system voltage: 48V
Nominal energy capacity range: 10.08 – 20.16kWh
Total battery energy included: 20.16kWh
Battery modules included: 4
Transfer time: 4 ms
Enclosure rating: IP54
Installation: Indoor or sheltered outdoor
Dimensions (H × W × D): 750 × 650 × 1130 mm
Weight: 140 kg

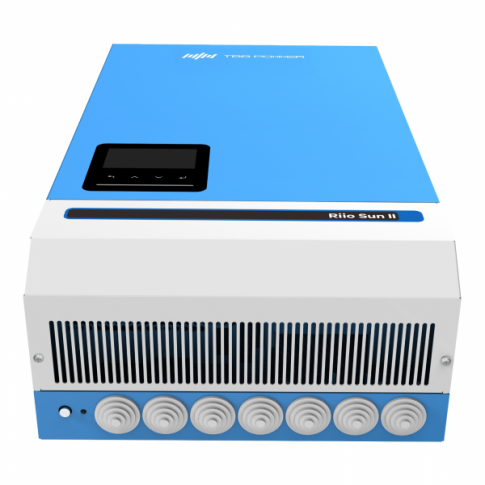

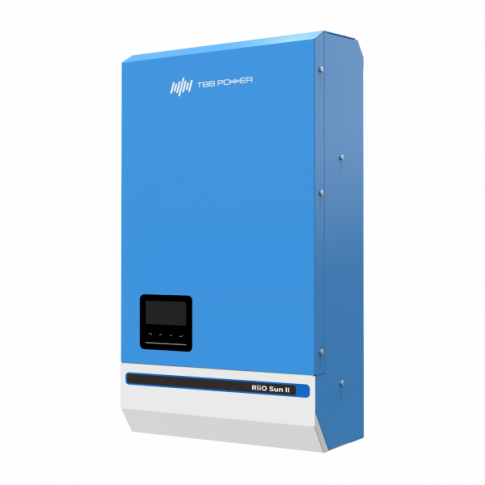

Inverter

Continuous power output: 8000W / 8000VA
Peak power: 16000W
Output voltage: 220–240V AC
Output frequency: 50/60 Hz
Waveform: Pure sine wave
Peak efficiency: 95%
AC transfer current: 50A
Maximum AC charging current: 90A
Zero load consumption: 32W

Solar Input (MPPT)

MPPT trackers: 2
Maximum PV power: 4400W + 4400W
Maximum PV open circuit voltage: 250V
MPPT voltage range: 65 – 245V
Maximum solar charge current: 100A (50A per tracker)
Peak MPPT efficiency: 98%

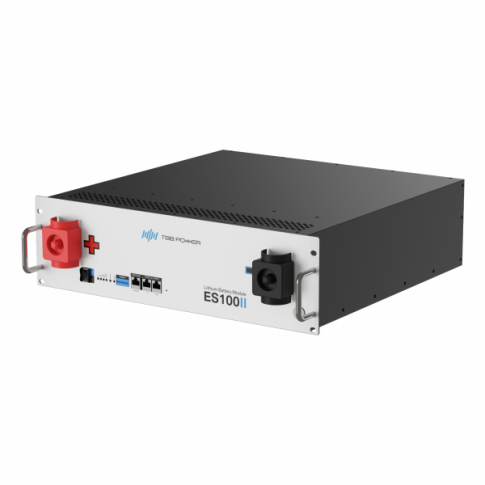

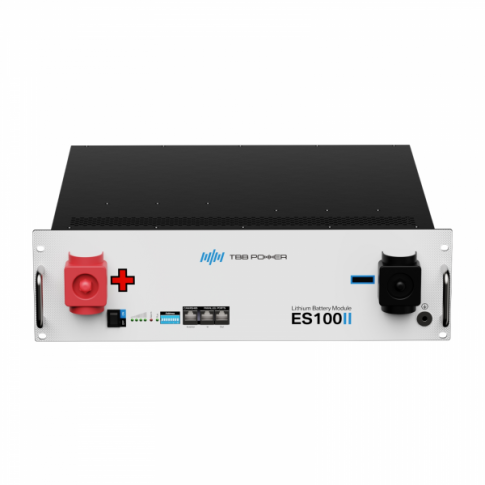

Battery (per module)

Battery chemistry: Lithium Iron Phosphate (LiFePO₄)
Nominal voltage: 48V
Capacity: 105Ah
Energy per battery: 5.04kWh
Total energy (4 units): 20.16kWh
Operating voltage range: 42 – 54.75V
Maximum charge/discharge current: 105A
Peak current: 120A
Cycle life: 6000 cycles (90% DoD, 25°C)
Self-discharge rate: <3% per month
Operating temperature (discharge): -20°C to +55°C
Operating temperature (charge): 0°C to +55°C

Monitoring & Communication

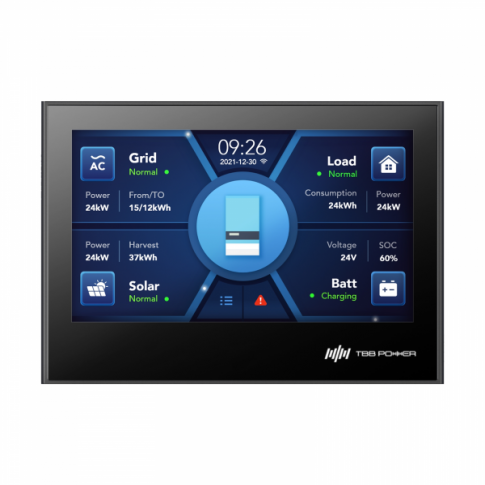

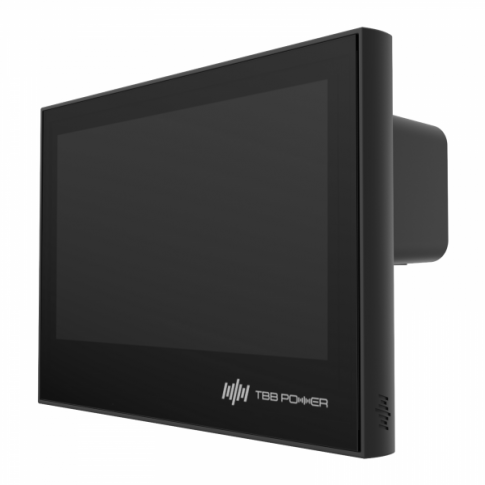

Display: TBB E4 LCD monitor (4.3")
Communication interfaces: CAN, RS485
Remote monitoring: NOVA web & mobile platform
