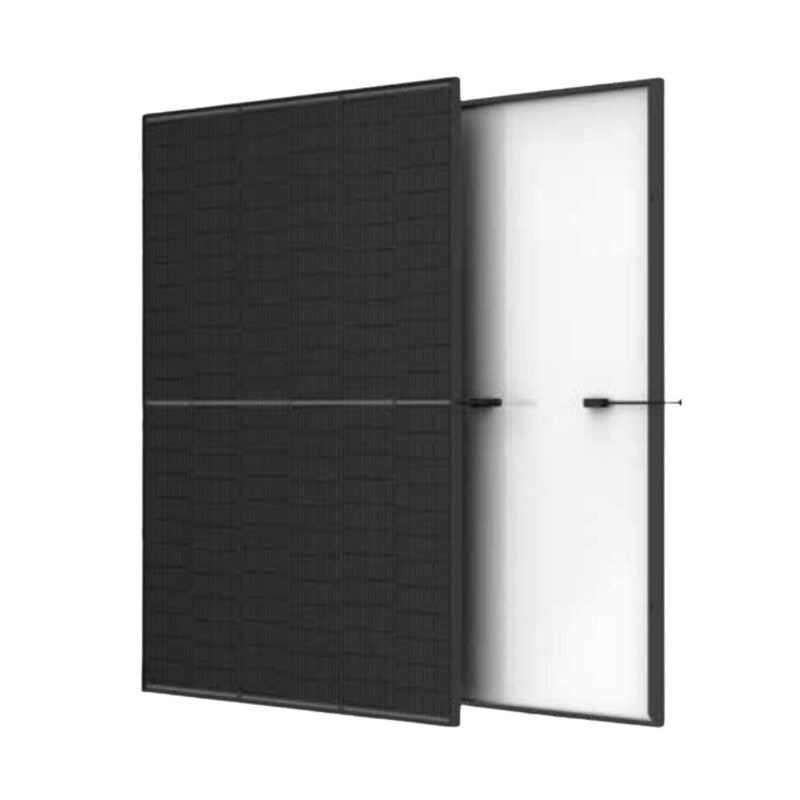

Trina Vertex S+ 455W NEG9R.25 N-Type Full Black Dual Glass Solar Panel – Pack of 8 (3.64kW)

The Trina Vertex S+ TSM-455NEG9R.25 is an N-type monofacial module in a full black dual glass construction, designed for residential roofs.

The module uses 1.6 mm glass front and rear, multi-busbar cell interconnection and a black frame, with a mechanical rating of 5400 Pa positive and 4000 Pa negative load.

This pack of 8 modules provides 3.64kWp.

Supplied as a pack of 8 modules on a single pallet.

Supplied through authorised UK distribution, dispatched directly from the distributor to your address.

Electrical (STC, per module)

• Rated power: 455W
• Module efficiency: 22.8%
• Short circuit current (Isc): 10.77A
• Temperature coefficient of Pmax: -0.29%/°C
• Maximum system voltage: 1500V DC

Mechanical

• Cell type: N-type, monofacial
• Glass: Dual glass, 1.6 + 1.6 mm
• Colour: Full black
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 21.0 kg
• Mechanical load: 5400 Pa positive, 4000 Pa negative

Pack

• Modules per pack: 8
• Total power: 3.64kWp

Warranty

• Product: 25 years
• Performance: 30 years
