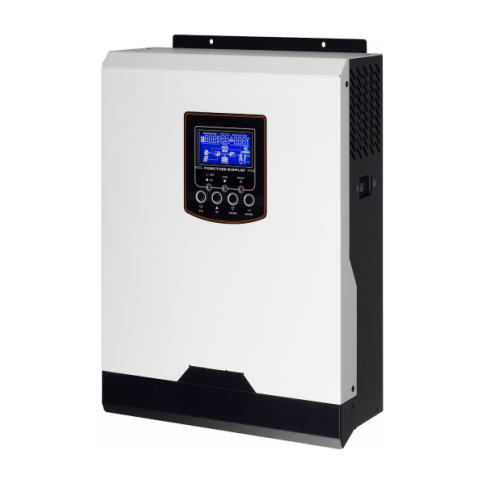

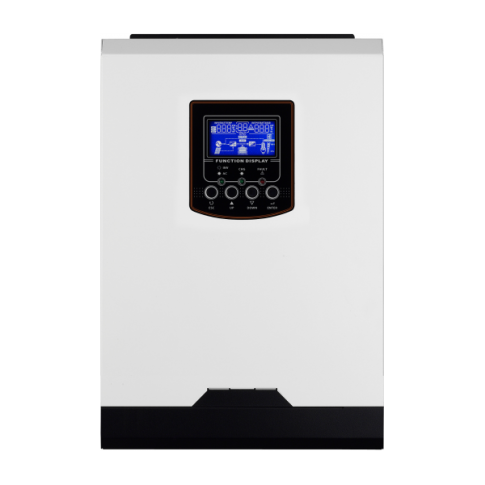

Iconica 2000W 24V Hybrid Pure Sine Wave Inverter with 50A MPPT Solar Controller and 20A Mains Battery Charger

The Iconica 2000W 24V Hybrid Inverter is a multi-function power unit that combines a 2000W 24V pure sine wave inverter, 50A solar charge controller, and 20A battery charger in one compact device. It can receive input from solar panels, mains power, generator, or battery, either as a single source or in combination.

The inverter provides continuous 230V AC output with a surge capacity up to 4000VA, suitable for various household and off-grid electrical loads. The integrated 50A PWM solar charge controller regulates solar input, while the 20A AC charger allows safe charging from grid or generator sources.

It includes user-configurable settings for power source priority, charging parameters, and battery type selection. The LCD display provides real-time system data, including voltages, frequency, and power status. Optional Wi-Fi and PC connection allow data logging and remote monitoring.

The unit supports 24V flooded, sealed GEL, and AGM lead-acid batteries, as well as custom-defined charging profiles for advanced charge control.

Authorised retailer of Photonic Universe.

• Nominal Battery Voltage: 24V
• Continuous Power Output: 2000W / 2000VA
• Surge Power: 4000VA
• Output Voltage: 230V AC
• Output Frequency: 50Hz / 60Hz
• Output Waveform: Pure sine wave
• Maximum Solar Input Power: 1200W
• Maximum Open Circuit Solar Input Voltage: 80V
• Maximum Solar Charging Current: 50A
• Maximum AC Charging Current: 20A
• Maximum Combined Charging Current: 50A
• Peak Efficiency: 93%
• Transfer Time: <10ms (UPS mode)
• Operating Temperature Range: –10°C to +50°C
• Battery Compatibility: Flooded, GEL, AGM lead-acid
• Communication Interfaces: USB, PC link, Wi-Fi (optional)
• Display: LCD (status, voltage, frequency, power, and battery statistics)
• Protection Features: Overload, short circuit, reverse polarity, overheating, overcharge
• Enclosure Type: Portable housing with integrated cooling
• Dimensions: 320 × 225 × 88 mm
• Weight: 5.5 kg
• Included Accessories: 1.5m AC power cable with UK 3-pin plug, PC connection cable
