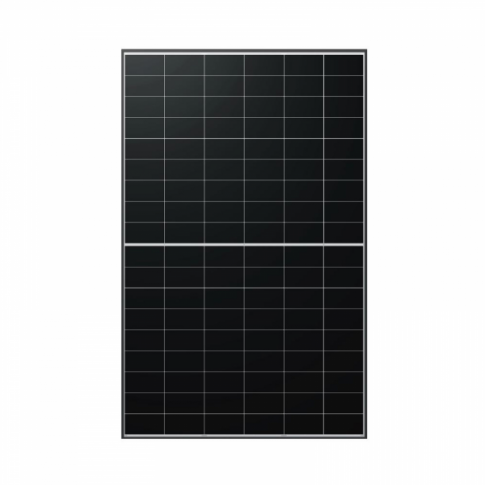

LONGi Hi-MO X6 430W HPBC Bifacial Solar Panel – Pallet of 36 (15.4kW)

The LONGi Hi-MO X6 430W bifacial solar panel is a high-efficiency module designed for permanent outdoor installations where maximum energy yield and long-term reliability are required. This pallet includes 36 modules, making it suitable for larger residential, commercial, and off-grid systems where efficient installation and system scaling are essential.

This module features HPBC 1.0 (Hybrid Passivated Back Contact) cell technology, which improves efficiency and thermal performance by eliminating front-side busbars and reducing electrical losses. The advanced cell structure enhances power output and supports stable performance in high-temperature and demanding environmental conditions.

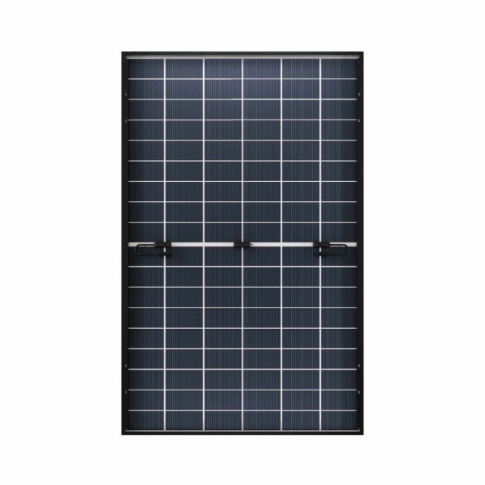

The bifacial glass-glass construction captures sunlight from both the front and rear surfaces, increasing total energy production by utilising reflected light from surrounding surfaces. This makes the panel suitable for rooftop arrays, ground-mounted systems, commercial installations, and off-grid applications.

Supplied with pre-installed MC4 connectors and high-quality solar cables, the module integrates easily into compatible systems. The durable frame and sealed junction box provide reliable operation in harsh weather conditions.

Authorised retailer of LONGi.

Specification

• Rated Power (per panel): 430W

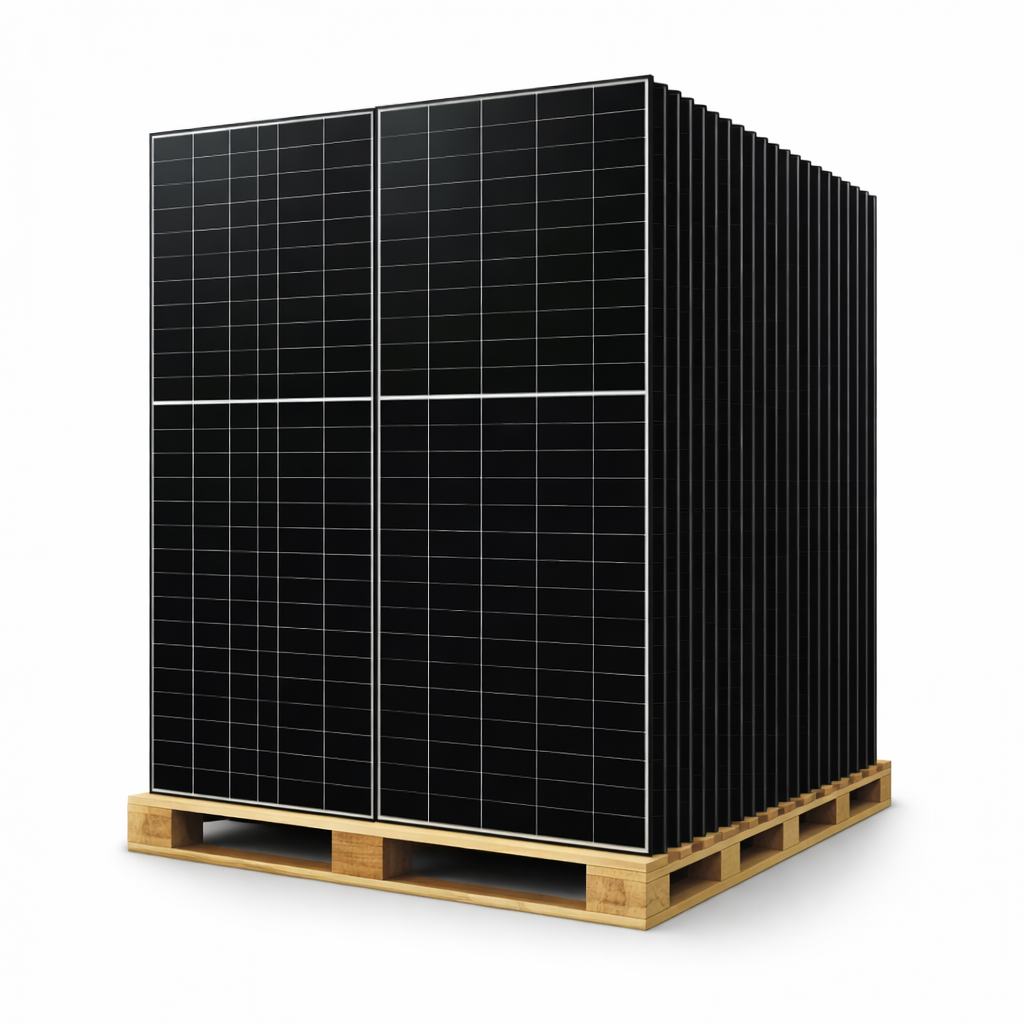

• Quantity per pallet: 36 panels
• Total pallet capacity: 15.48 kW
• Cell Technology: HPBC 1.0 back-contact
• Module Type: Bifacial glass-glass
• Maximum Power Voltage (Vmp): 32.90V
• Maximum Power Current (Imp): 13.07A
• Open Circuit Voltage (Voc): 39.62V
• Short Circuit Current (Isc): 13.86A
• Power Tolerance: 0/+3%
• Maximum System Voltage: 1500V DC
• Connector Type: MC4 compatible
• Cable Length: 2 × 1.2 m (4 mm²) solar cable
• Junction Box Protection: IP68
• Certifications: MCS certified
• Resistance: PID, salt mist, ammonia, dust and snow tested
• Dimensions (per panel): 1722 × 1134 × 30 mm
• Weight (per panel): 22.5 kg
