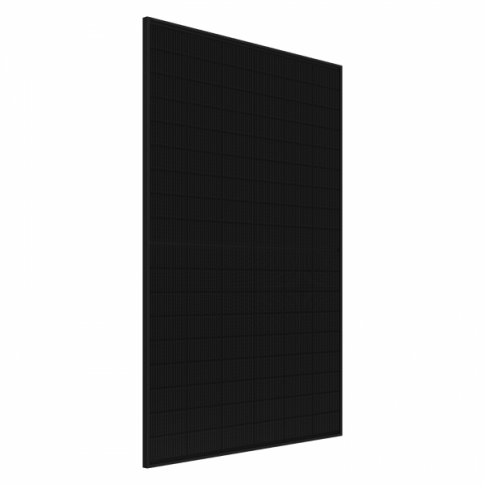

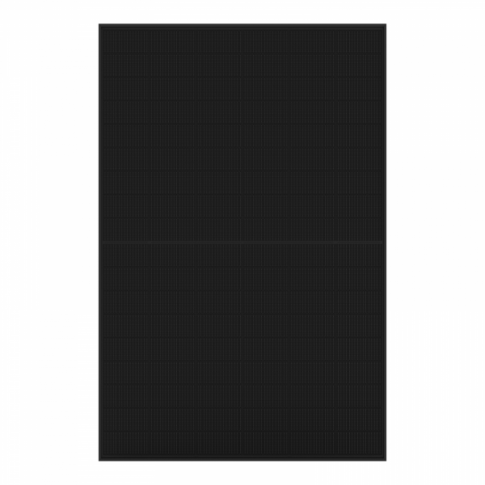

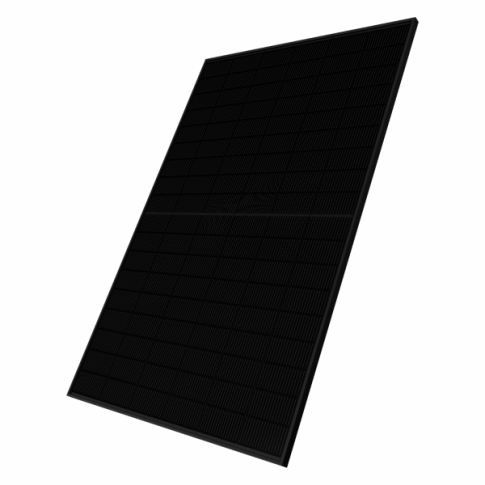

Sharp NU-JC430B 430W Full Black TOPCon Solar Panel – Pallet of 20 (8.6kW)

This pallet includes 20 high-efficiency 430W full black monocrystalline solar panels designed for residential, commercial, and off-grid energy systems. The panels utilise advanced TOPCon cell technology to improve efficiency, reduce energy losses, and enhance long-term performance.

The half-cut cell configuration reduces internal resistance and minimises hotspot risk while improving performance under partial shading conditions. These panels are suitable for grid-tied systems as well as off-grid installations where reliable power generation is required.

Built for durability, the panels are tested for resistance to environmental stress factors including salt mist, ammonia, dust, and heavy snow loads. Pre-fitted MC4 connectors allow straightforward integration with existing solar installations.

Authorised retailer of Sharp.

Specification

Per panel

• Peak power: 430W
• Cell technology: Monocrystalline TOPCon, half-cut cells
• Maximum power voltage (Vmp): 32.73V
• Maximum power current (Imp): 13.14A
• Open circuit voltage (Voc): 39.09V
• Short circuit current (Isc): 14.01A
• Power tolerance: 0 / +5%
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 20.7 kg

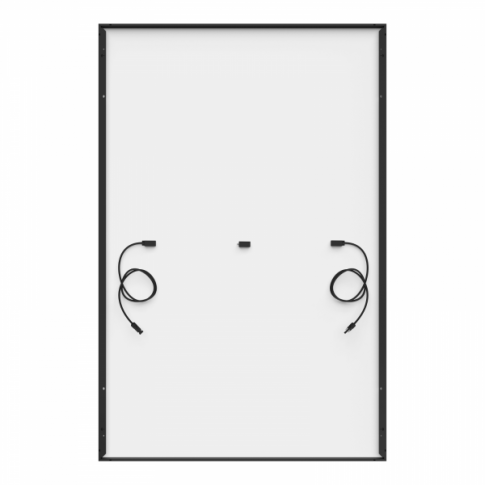

• Cable length: 2 × 1.25 m
• Connectors: MC4 compatible
• Mounting: Pre-drilled mounting holes

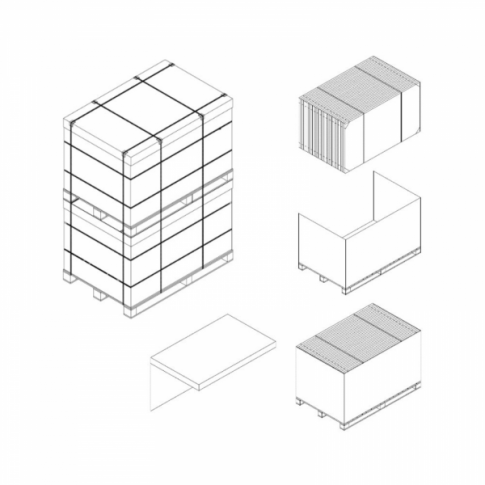

Pallet quantity

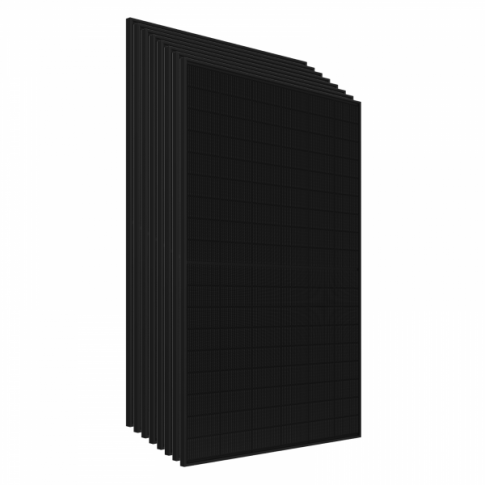

• Panels per pallet: 20
• Total peak power (pallet): 8.6 kW
