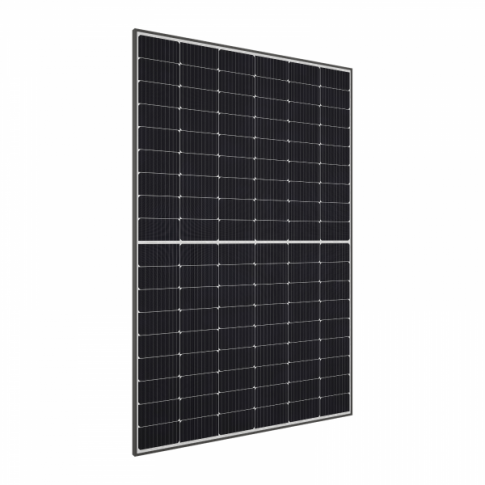

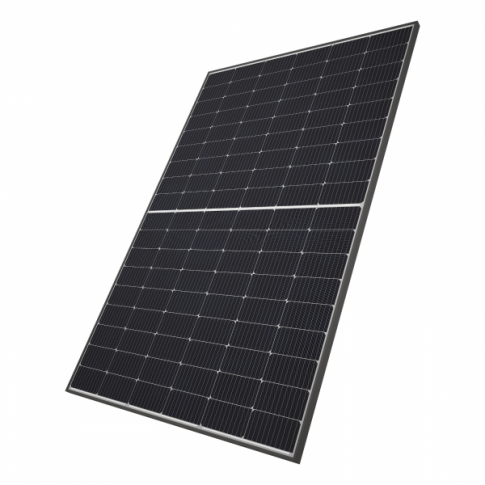

Sharp NU-JC410B 410W Black Frame PERC Solar Panel – Pallet of 36 (14.76kW)

This pallet contains 36 high-efficiency 410W monocrystalline solar panels designed for residential, commercial, and off-grid solar energy systems. The panels utilise PERC cell technology to improve energy capture and enhance overall performance.

The half-cut cell design reduces internal power losses, improves reliability, and helps maintain output in partial shading conditions. These panels are suitable for grid-connected installations as well as off-grid applications requiring dependable energy generation.

Engineered for durability, the panels are tested for resistance to environmental stress including salt mist, ammonia, dust, and heavy snow loads. Pre-fitted MC4 connectors enable straightforward connection to new or existing solar installations.

Authorised retailer of Sharp.

Specification

Per panel

• Peak power: 410W
• Cell technology: Monocrystalline PERC, half-cut cells, 10 busbars
• Maximum power voltage (Vmp): 31.3V
• Maximum power current (Imp): 13.1A
• Open circuit voltage (Voc): 37.79V
• Short circuit current (Isc): 13.81A
• Power tolerance: 0 / +5%
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 21.8 kg

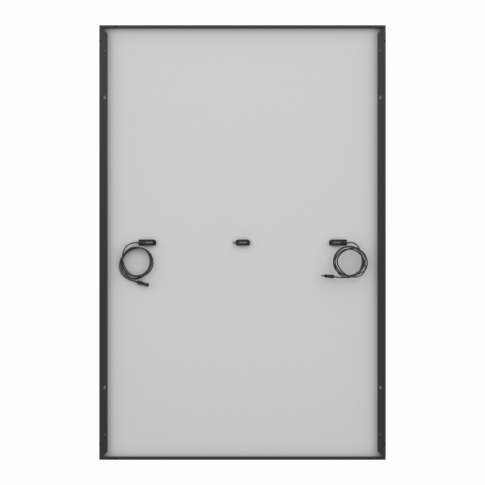

• Cable length: 2 × 1.25 m
• Connectors: MC4 compatible
• Mounting: Pre-drilled mounting holes

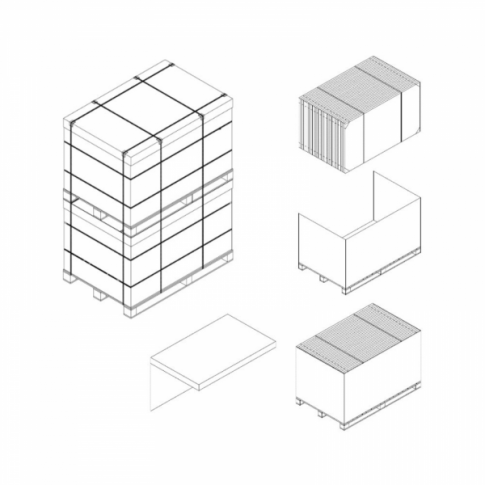

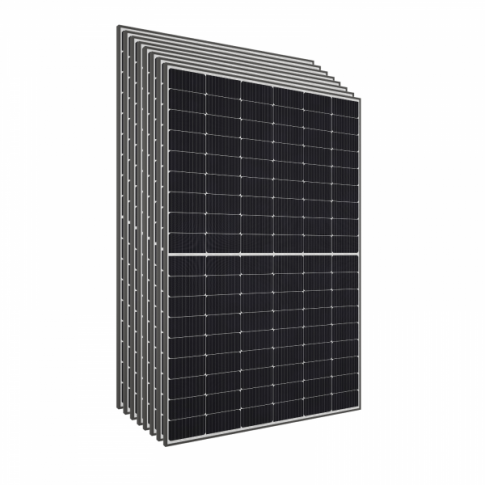

Pallet quantity

• Panels per pallet: 36
• Total peak power (pallet): 14.76 kW
