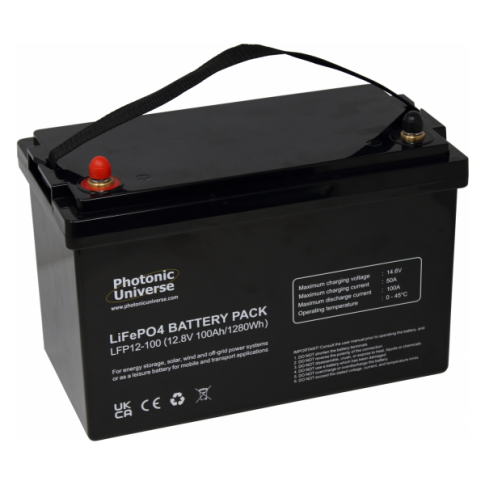

Photonic Universe 100Ah 12V LiFePO₄ Battery for Solar, Wind and Off-Grid Systems

The Photonic Universe 100Ah 12V Lithium Iron Phosphate (LiFePO₄) battery is designed for use in solar, off-grid, and backup power systems. It includes an integrated Battery Management System (BMS) and Bluetooth connectivity for real-time monitoring and performance tracking.

The battery provides a nominal voltage of 12.8V and a capacity of 100Ah, delivering stable power for deep-cycle applications. It supports up to 6,000 charge and discharge cycles at 80% depth of discharge and operates efficiently across a wide temperature range.

Bluetooth monitoring via the XiaoXiangElectric app (available for iOS and Android) allows users to view capacity, voltage, current, temperature, and cell balance data in real time. The system also provides historical graphs, equalisation functions, and protection alerts.

The unit is compatible with various applications such as caravans, campervans, boats, telecommunications systems, and renewable energy storage. It includes bolts, washers, and a user manual for installation.

Authorised retailer of Photonic Universe.

Specification

• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Nominal Energy: 1280Wh
• Cycle Life: 6000 cycles @80% DoD (25°C)
• Recommended Charge Voltage: 14.6V
• Recommended Charge Current: 20A
• Maximum Charge Current: 50A
• Maximum Discharge Current: 100A
• Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
• Built-in Battery Management System (BMS): Overcharge, over-discharge, overcurrent, and temperature protection
• Communication: Bluetooth via XiaoXiangElectric App (iOS/Android)
• Operating Charge Temperature: 0°C to +45°C
• Operating Discharge Temperature: –20°C to +55°C
• Humidity: 5–95% RH (non-condensing)
• Altitude: <4000m
• Dimensions: 339 × 185 × 218 mm
• Weight: 12 kg
• Mounting Orientation: Upright or side-mounted
• Enclosure Type: ABS case
