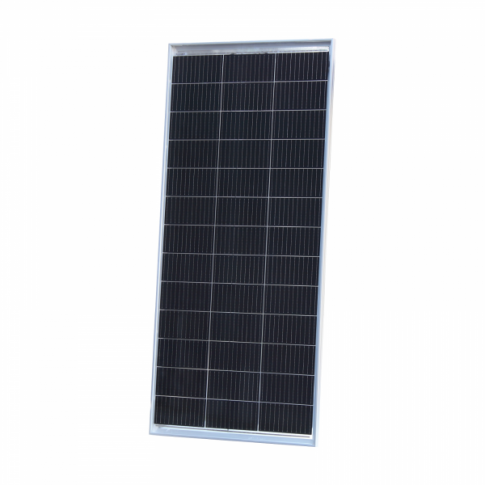

Photonic Universe 200W Bifacial Monocrystalline Solar Panel

The Photonic Universe 200W bifacial monocrystalline solar panel is a high-efficiency module designed for permanent outdoor installations that require dependable 12V power. It provides clean, renewable energy for various off-grid applications and can also directly power loads such as pumps or motors that are not sensitive to voltage or current fluctuations.

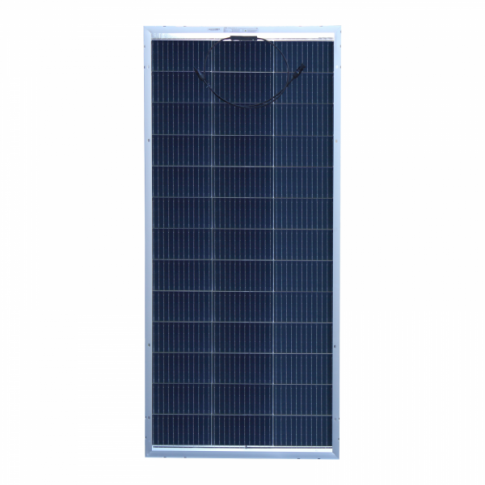

This panel features advanced bifacial solar technology, allowing it to capture sunlight on both the front and rear surfaces. By harnessing reflected light from the ground, energy output can increase by up to 20%, depending on the mounting angle and surface type. It is ideal for ground-mounted, rooftop, and building-integrated installations, delivering enhanced performance and durability.

Equipped with two 60 cm solar cables (4.0 mm²) and MC4 connectors, the panel ensures simple integration with other panels or charge controllers. Its durable, sealed aluminium frame and waterproof construction guarantee long-term operation in a wide range of weather conditions.

Authorised retailer of Photonic Universe.

Specification

• Rated Power: 200W
• Cell Type: Bifacial monocrystalline multi-busbar cells
• Maximum Power Voltage (Vmp): 22.45V
• Maximum Power Current (Imp): 8.91A
• Open Circuit Voltage (Voc): 26.29V
• Short Circuit Current (Isc): 9.41A
• Power Tolerance: ±3%
• Cable Length: 2 × 60 cm (4.0 mm²) solar cable
• Connector Type: MC4 male/female
• Frame Material: Anodised aluminium
• Dimensions: 1480 × 670 × 30 mm
• Weight: 10.5 kg
• Application: 12V battery charging and direct-power systems
