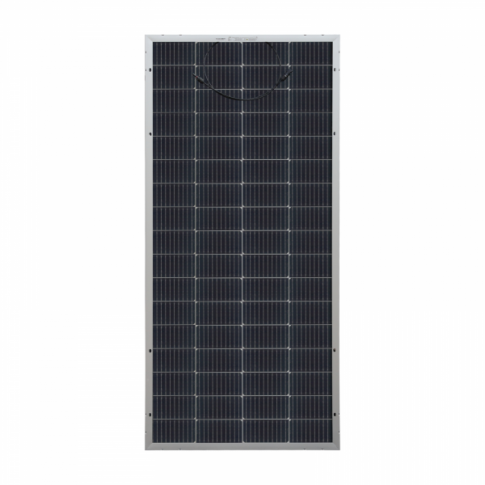

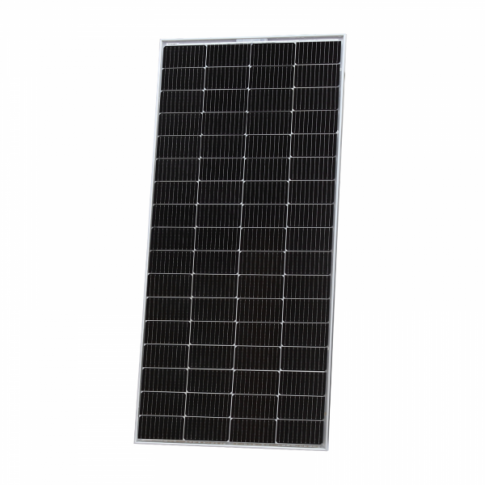

Photonic Universe 250W Bifacial Monocrystalline Solar Panel

The Photonic Universe 250W bifacial monocrystalline solar panel is a high-efficiency module designed for permanent outdoor installations that require reliable 12V or 24V power. It provides free renewable energy for a wide range of off-grid and hybrid applications and can also directly power electrical loads such as pumps or motors that are not sensitive to voltage or current fluctuations.

This panel utilises bifacial solar technology to capture sunlight on both the front and rear surfaces, increasing overall energy yield by up to 20% depending on the installation angle and surface reflectivity. It is ideal for ground-mounted, rooftop, and building-integrated solar systems, delivering enhanced performance and long-term durability.

The panel is supplied with two 60 cm solar cables (4.0 mm²) and MC4 connectors for easy connection to other panels or solar charge controllers. Its robust anodised aluminium frame and waterproof construction ensure stable operation in all weather conditions.

If used for battery charging, a suitable solar charge controller or regulator must be connected to safely charge 12V or 24V batteries or battery banks.

Authorised retailer of Photonic Universe.

Specification

• Rated Power: 250W
• Cell Type: Bifacial monocrystalline multi-busbar cells
• Maximum Power Voltage (Vmp): 39.02V
• Maximum Power Current (Imp): 6.41A
• Open Circuit Voltage (Voc): 45.45V
• Short Circuit Current (Isc): 6.82A
• Power Tolerance: ±3%
• Cable Length: 2 × 60 cm (4.0 mm²) solar cable
• Connector Type: MC4 male/female
• Frame Material: Anodised aluminium
• Mounting Holes: 4 pre-drilled
• Dimensions: 1630 × 770 × 35 mm
• Weight: 13.5 kg
• Application: 12V/24V battery charging and direct-power systems
