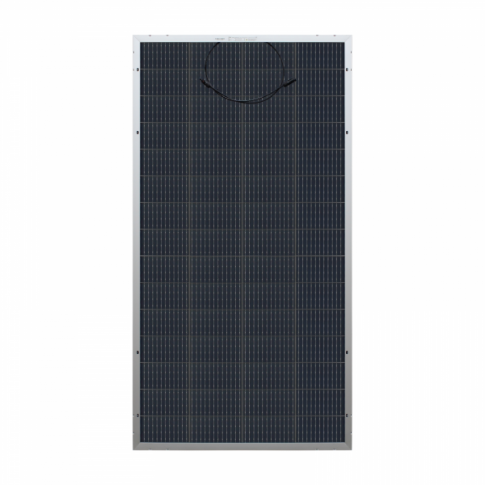

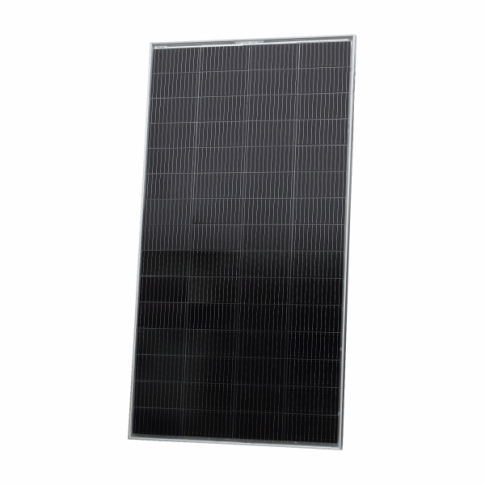

Photonic Universe 300W Bifacial Monocrystalline Solar Panel

The Photonic Universe 300W bifacial monocrystalline solar panel is a high-efficiency module designed for permanent outdoor installations requiring reliable 12V or 24V power. It provides stable, renewable energy for off-grid and hybrid systems and can also directly power devices such as pumps or motors that are not sensitive to input voltage or current variations.

This panel incorporates bifacial solar technology, enabling it to capture sunlight on both the front and rear surfaces. By utilising reflected light from surrounding surfaces, energy yield can increase by up to 20%, depending on installation conditions. Suitable for ground-mounted, rooftop, and building-integrated setups, it offers enhanced performance, efficiency, and long-term reliability.

Equipped with two 60 cm solar cables (4.0 mm²) and MC4 connectors, the panel allows for simple integration with other panels or charge controllers. Its anodised aluminium frame and waterproof construction ensure consistent power generation in all weather conditions.

Authorised retailer of Photonic Universe.

Specification

• Rated Power: 300W
• Cell Type: Bifacial monocrystalline multi-busbar cells
• Maximum Power Voltage (Vmp): 34.53V
• Maximum Power Current (Imp): 8.69A
• Open Circuit Voltage (Voc): 41.83V
• Short Circuit Current (Isc): 9.25A
• Power Tolerance: ±3%
• Cable Length: 2 × 60 cm (4.0 mm²) solar cable
• Connector Type: MC4 male/female
• Frame Material: Anodised aluminium
• Mounting Holes: 4 pre-drilled
• Dimensions: 1650 × 880 × 35 mm
• Weight: 15.5 kg
• Application: 12V/24V battery charging and direct-power systems
