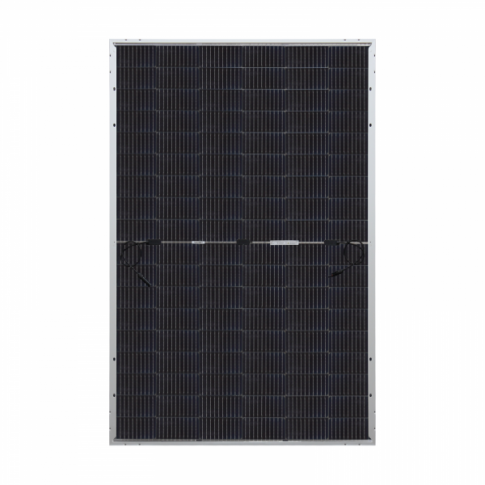

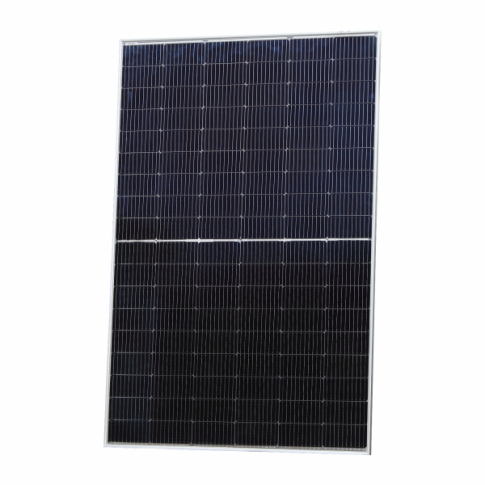

Photonic Universe 400W Bifacial Monocrystalline Solar Panel

The Photonic Universe 400W bifacial monocrystalline solar panel is a high-efficiency module designed for permanent outdoor installations requiring dependable 12V power. It provides clean, renewable energy for a wide range of off-grid and hybrid systems and can also directly power devices such as pumps or motors that are not sensitive to input voltage or current variations.

This panel uses advanced bifacial solar technology to capture sunlight on both the front and rear surfaces, increasing total energy yield by up to 20% depending on the installation surface and tilt angle. It is suitable for ground-mounted, rooftop, and building-integrated photovoltaic applications, combining excellent performance with long-term durability.

Equipped with two 60 cm solar cables (4.0 mm²) and MC4 connectors, the panel is easy to connect to other modules or charge controllers. The tough anodised aluminium frame and fully waterproof construction ensure consistent performance in all weather conditions.

Authorised retailer of Photonic Universe.

Specification

• Rated Power: 400W
• Cell Type: Bifacial monocrystalline multi-busbar cells
• Maximum Power Voltage (Vmp): 30.98V
• Maximum Power Current (Imp): 12.91A
• Open Circuit Voltage (Voc): 37.10V
• Short Circuit Current (Isc): 13.80A
• Power Tolerance: ±3%
• Cable Length: 2 × 60 cm (4.0 mm²) solar cable
• Connector Type: MC4 male/female
• Frame Material: Anodised aluminium
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 21.0 kg
• Application: 12V battery charging and direct-power systems
