Photonic Universe 600W 24V Off-Grid Solar Kit with 2x300W Panels, 2kW Hybrid Inverter and Dual 100Ah Batteries

The Photonic Universe 600W 24V Off-Grid Solar Power System provides a complete standalone energy solution for remote properties, off-grid homes, cabins, workshops, and other applications requiring an independent power supply. The system can support everyday electrical loads such as LED lighting, computers, televisions, radios, and small refrigeration units.

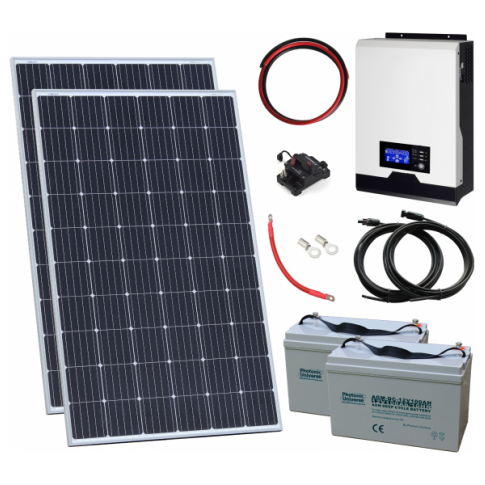

Included Components
• 2 × 300W monocrystalline solar panels (600W total) with MC4 connectors and 1 m solar cables
• Iconica Hybrid 2000W 24V pure sine wave inverter with built-in 40A MPPT controller and 25A battery charger
• 2 × 100Ah Photonic Universe AGM deep-cycle batteries
• 100A fuse or circuit breaker for system protection
• 5 m solar extension cables (pair) with MC4 connectors
• 1 m 25 mm² tinned copper battery cables with ring terminals
• Battery linking cable for parallel connection
• Installation manual and accessories

The Iconica hybrid inverter manages power conversion from solar panels, batteries, and AC sources within a single unit. The monocrystalline solar panels are built for high energy yield, and the sealed AGM batteries offer stable energy storage with low self-discharge.

Authorised retailer of Photonic Universe.

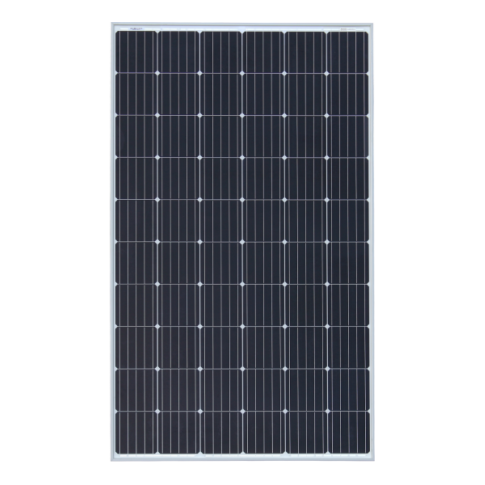

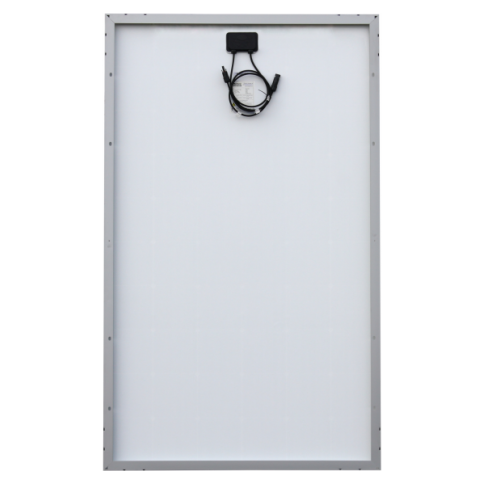

Solar Panel
• Peak Power: 300 W
• Maximum Power Voltage: 32.7 V
• Maximum Power Current: 9.17 A
• Open-Circuit Voltage: 39.8 V
• Short-Circuit Current: 9.78 A
• Power Tolerance: 0 /+3 %
• Frame: 35 mm anodised aluminium
• Junction Box: IP68 rated
• Cable: 2 × 1 m single-core 4 mm² solar cable
• Connectors: MC4 compatible
• Dimensions: 164 × 99 × 3.5 cm
• Weight: 19 kg

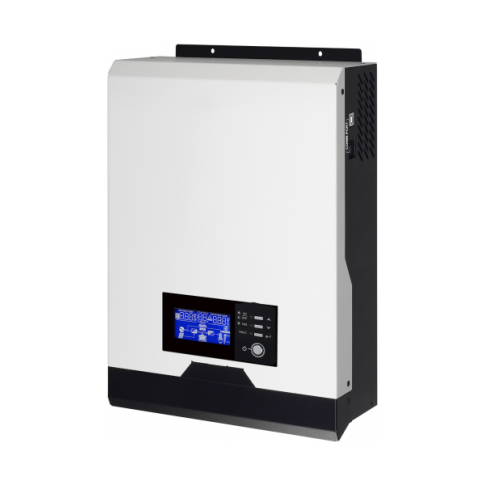

Hybrid Inverter
• Nominal Battery Voltage: 24 V
• Continuous Power Output: 2000 W / 2000 VA
• Surge Power: 4000 VA
• Output Voltage: 230 V AC
• Output Frequency: 50 / 60 Hz
• Waveform: Pure sine wave
• Maximum Solar Input Power: 1000 W
• Maximum Open-Circuit PV Voltage: 102 V
• MPPT Operating Range: 30 – 80 V
• Maximum Solar Charging Current: 40 A
• Maximum AC Charging Current: 25 A
• Combined Charging Current: 60 A
• Peak Efficiency: 93 %
• Operating Temperature: −10 °C to +50 °C
• Communication: USB, PC link (software included)
• Enclosure Dimensions: 320 × 225 × 88 mm
• Weight: 5.5 kg
• Supplied with: 1.5 m AC power cable (UK 3-pin) and PC connection cable

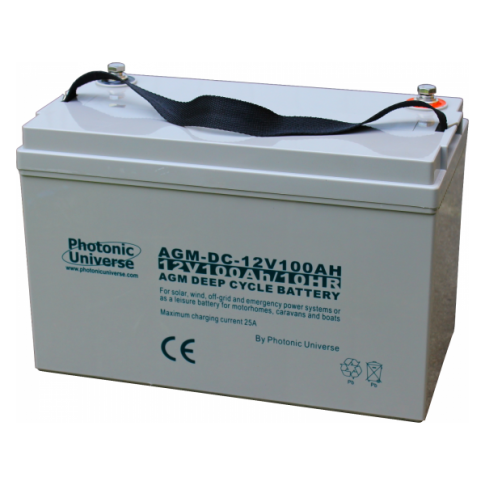

Battery
• Nominal Voltage: 12 V
• Nominal Capacity: 100 Ah (10 h rate) / 105 Ah (20 h rate)
• Maximum Charging Current: 25 A
• Self-Discharge Rate: < 3 % per month
• Cycle Life (at 30 % DoD): 1000–1100 cycles
• Terminal Type: F13 (bolts and washers included)
• Operating Temperature: +10 °C to +40 °C
• Dimensions: 331 × 173 × 217 mm
• Weight: 30 kg each
• Enclosure Type: Sealed AGM, maintenance-free
