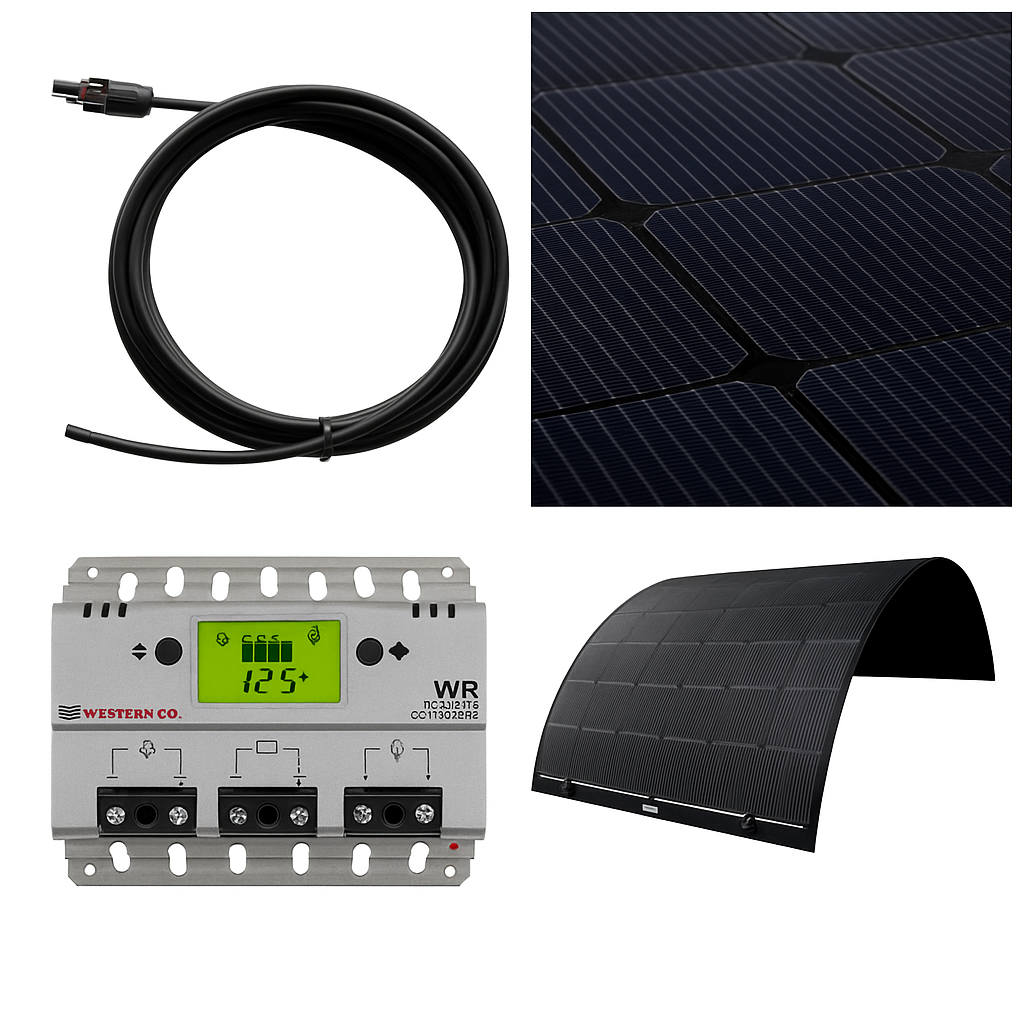

Photonic Universe Flexible 240W Solar Charging Kit with CIGS Panel, Cables & Controller

The Flexible 240W Solar Charging Kit provides an integrated solar energy solution for mobile, marine, and off-grid applications. The kit includes a 240W CIGS flexible solar panel, a 30A PWM charge controller, and solar cables for simple installation.

The SELM 240W CIGS flexible solar panel uses thin-film technology that offers high energy yield and flexibility for use on curved or irregular surfaces. It is resistant to cracking and impact, suitable for installation on rooftops, vehicles, or boats.

The kit includes 5 m solar cables made of 4.0 mm² tinned copper with MC4 waterproof connectors, rated for operation between -40°C and +120°C. The included Italian-made 30A PWM charge controller supports 12V and 24V lead-acid battery systems and features an LCD display for real-time system data and programmable load control.

Authorised retailer of Photonic Universe.

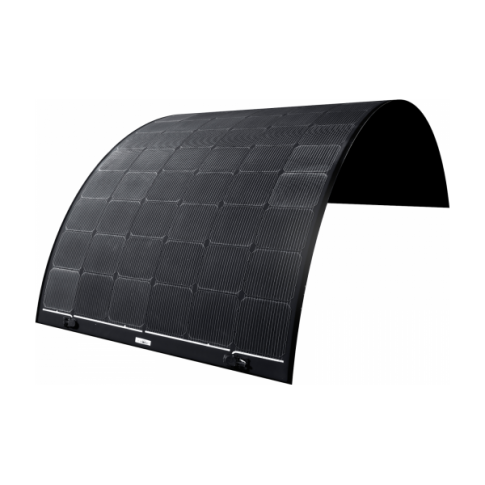

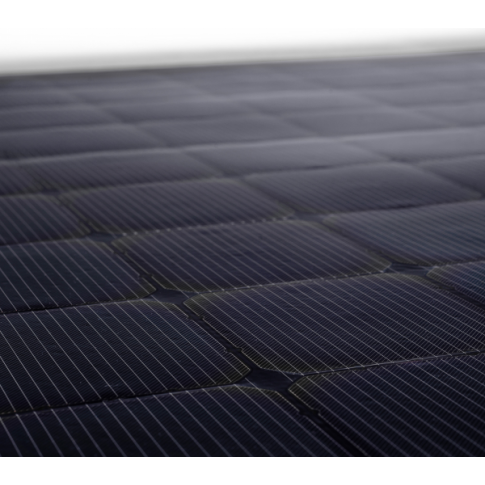

Solar Panel
• Peak Power: 240 W
• Maximum Power Voltage: 37.4 V
• Maximum Power Current: 6.6 A
• Open-Circuit Voltage: 45.7 V
• Short-Circuit Current: 7.6 A

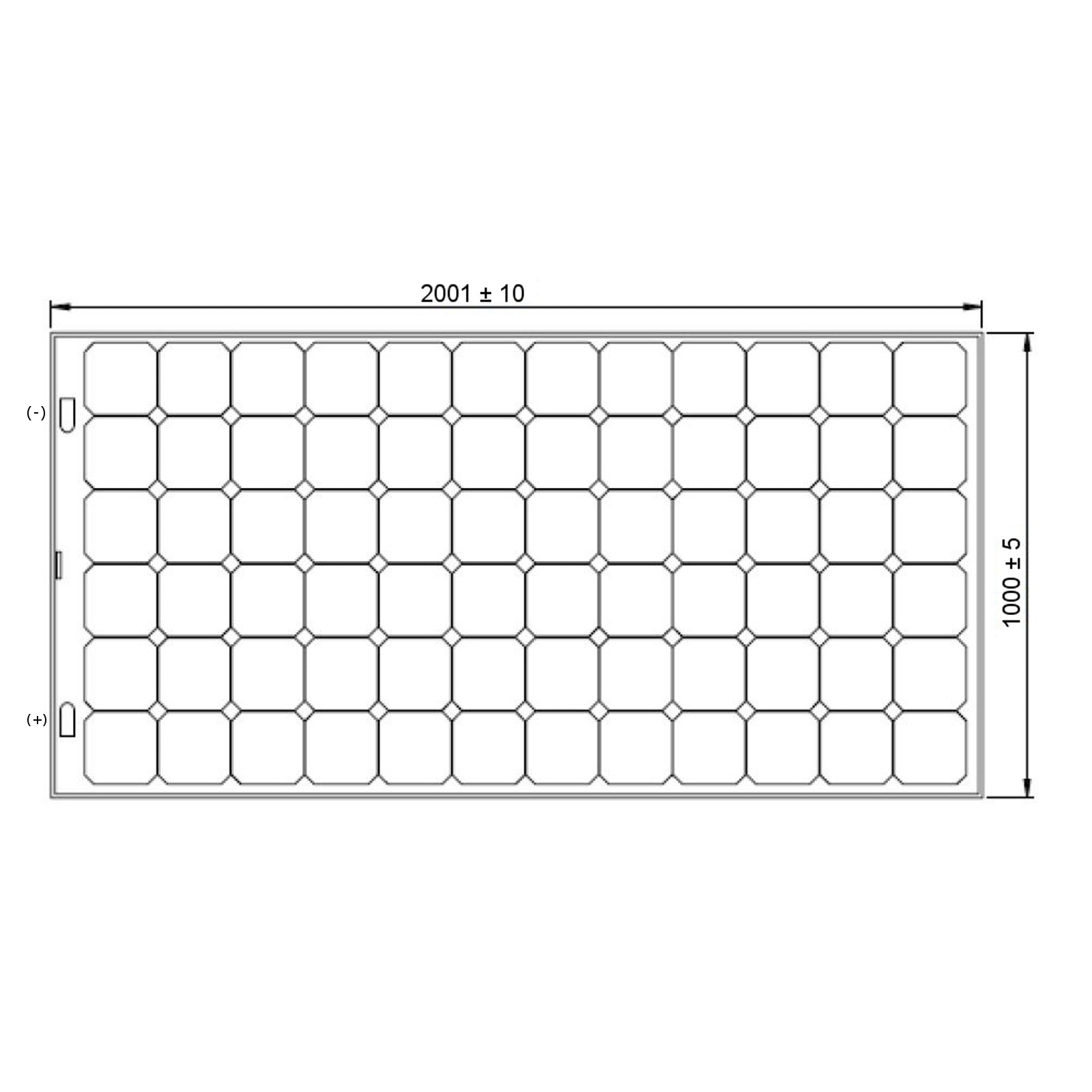

• Dimensions: 2001 × 1000 × 2 mm
• Weight: 6.0 kg
• Type: CIGS thin-film flexible solar panel
• Operating Temperature: −40°C to +85°C
• Surface: Shatterproof and walkable
• Connector Type: MC4 compatible
• Protection Class: IP68

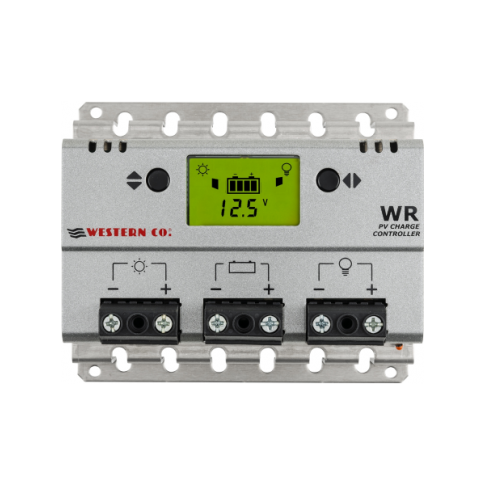

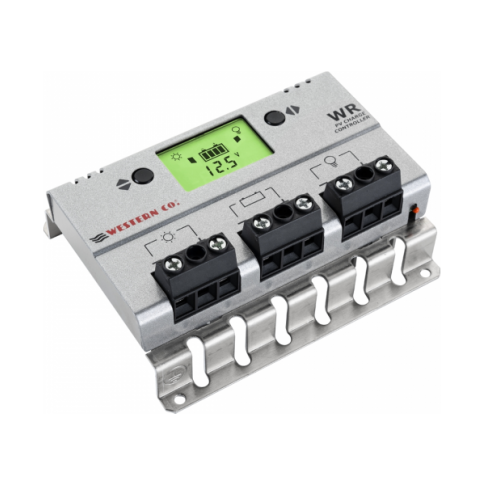

Controller
• Rated Charging/Load Current: 30 A
• System Voltage: 12 V / 24 V (auto-detection)
• Maximum Solar Input Voltage: 55 V
• Terminals: 3 pairs (input, battery, load) for wire up to 10 mm²
• Display: LCD
• Temperature Sensor: Built-in
• Self-Consumption: 8 mA
• Operating Temperature: −10°C to +60°C
• Dimensions: 150 × 120 × 50 mm
• Weight: 0.5 kg
• Protection: Overcharge, reverse polarity, short circuit, overload

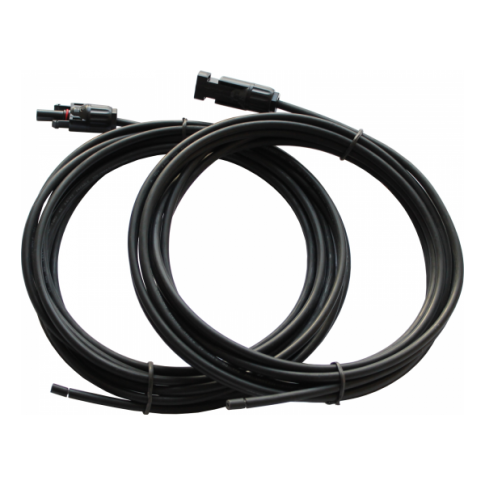

Cable
• Conductor Material: Tinned copper
• Cross Section: 4.0 mm²
• Conductor Resistance: 5.09 Ω/km (at 20°C)
• Insulation and Jacket: XLPE rated for 120°C
• Operating Temperature: −40°C to +120°C
• Certification: TÜV
• Outer Diameter: 6.1 mm
