Photonic Universe - Residential Solar Hybrid Kit 3.4kW

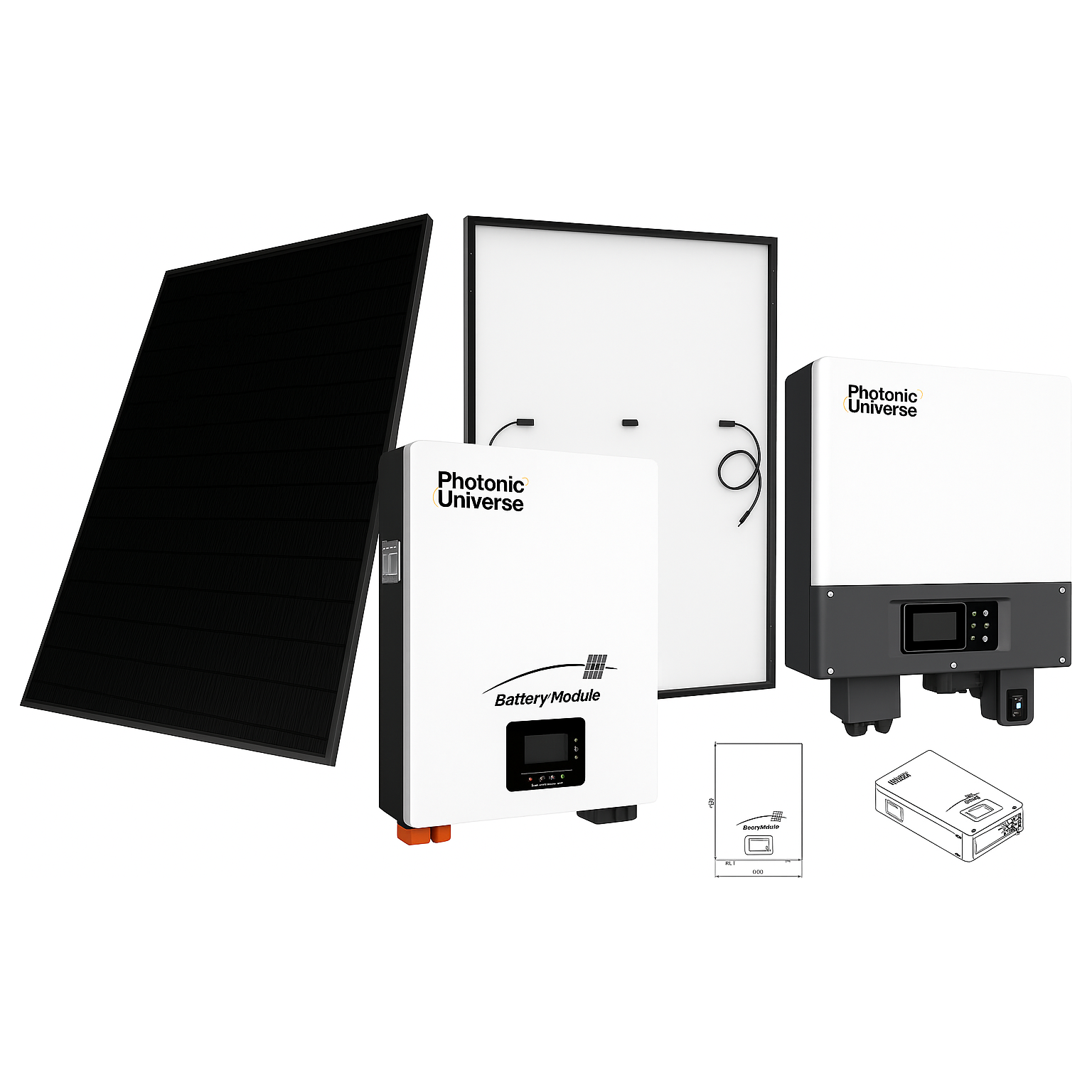

The Photonic Universe 3.4kW Residential Solar Kit is a compact home energy system for efficient self-generation and storage. It includes eight Sharp 430W monocrystalline panels, a 5kWh wall-mounted lithium battery, and a 3.6kW hybrid inverter for seamless operation between solar, battery, and grid. Designed for residential use, it supports both on-grid and off-grid configurations, offering reliable and flexible energy management.

Authorised retailer of Photonic Universe.

• Total Solar Power: 3.44kW

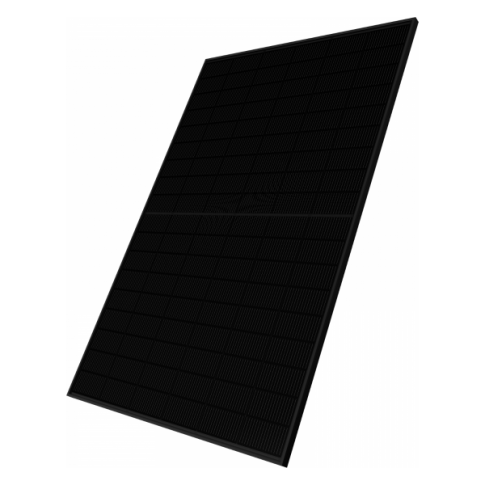

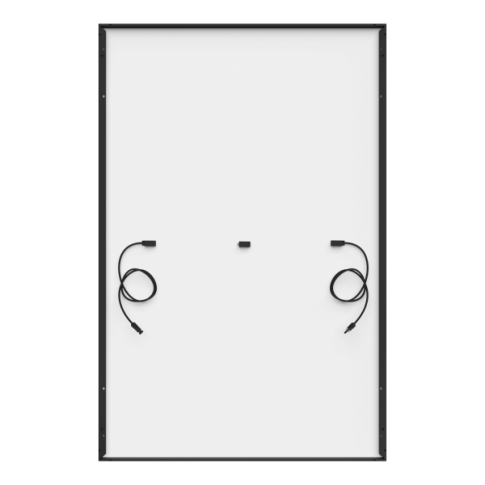

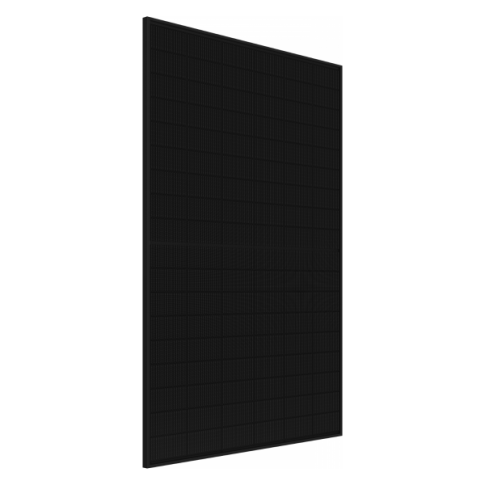

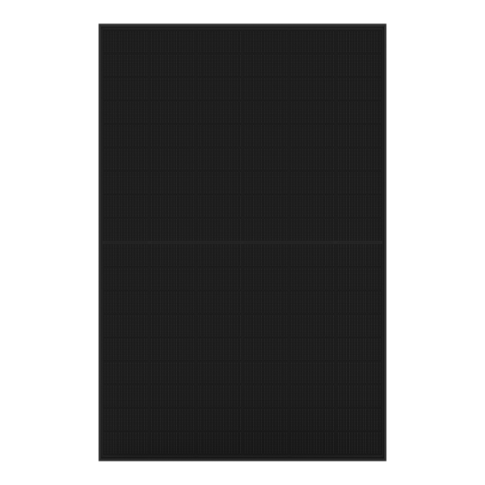

• Solar Panels: 8 × Sharp NU-JC430B 430W full-black monocrystalline panels
• Cell Technology: TOPCon high-efficiency cells

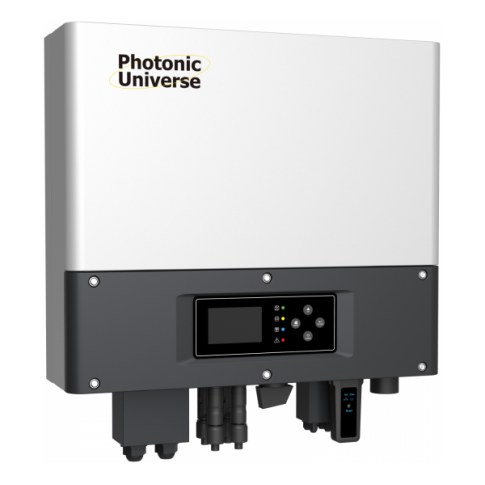

• Inverter Model: 3.6kW 48V hybrid inverter (on-grid and off-grid)
• Inverter Output Power: 3600W continuous
• Solar Input Capacity: up to 5400W / 500V
• MPPT Inputs: dual MPPT tracking
• AC Charger: built-in 75A mains charger

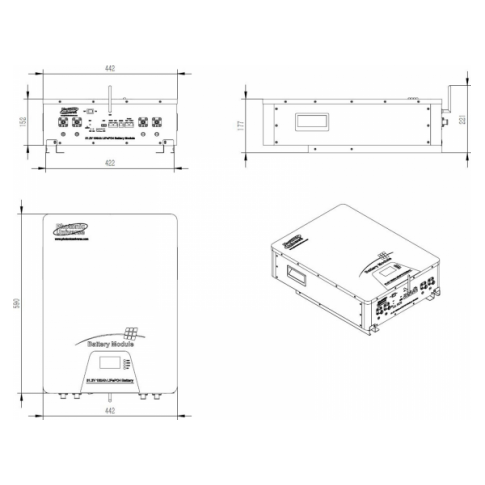

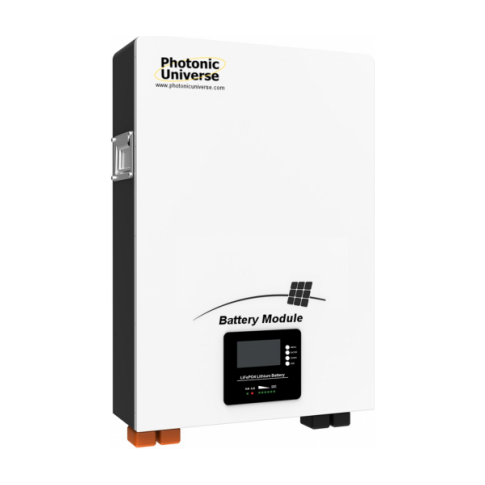

• Battery Configuration: 1 × 48V 100Ah LiFePO₄ wall-mounted battery
• Total Battery Capacity: 5kWh
• Battery Type: lithium iron phosphate (LiFePO₄)
• Design: compact wall-mounted housing for space efficiency
• Energy Management: automatic control between PV, battery, and grid
• Mounting: rooftop installation (full-black aesthetic)
• Connectivity: monitoring and configuration via compatible app
• Typical Applications: residential homes, garden offices, and off-grid setups
