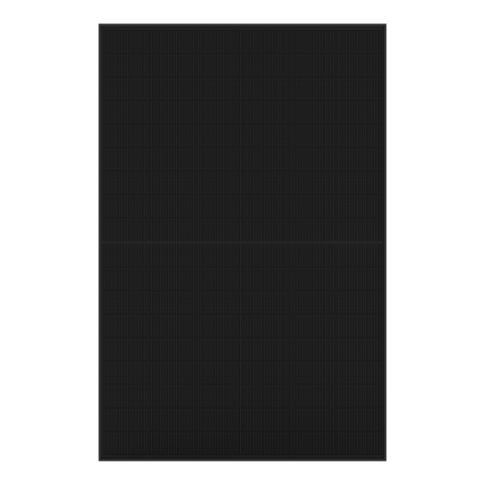

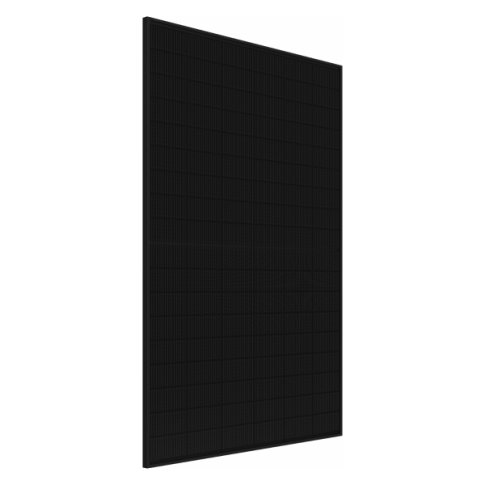

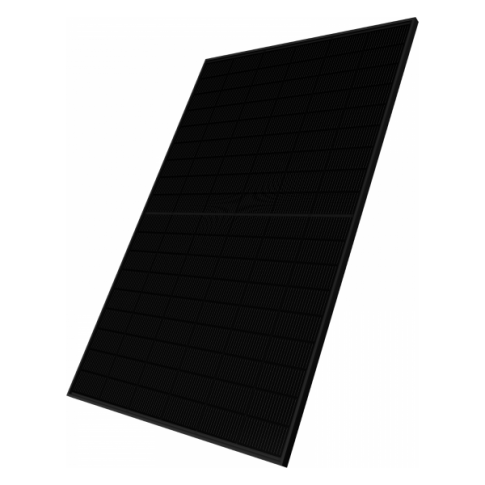

Sharp 430W Monocrystalline TOPCon Solar Panel

The Sharp 430W Solar Panel combines high-efficiency TOPCon monocrystalline technology with a full-black frame for modern and reliable energy generation. Engineered for both grid-tied and off-grid systems, it delivers stable output and excellent performance under varied conditions. The half-cut cell design reduces internal resistance, minimises power loss, and improves energy yield in shaded environments. Built to MCS standards, this panel is suitable for residential, marine, and mobile energy applications.

Authorised retailer of Sharp via Photonic Universe.

• Peak Power: 430W
• Cell Type: TOPCon monocrystalline (half-cut design)
• Maximum Power Voltage: 32.73V
• Maximum Power Current: 13.14A
• Open Circuit Voltage: 39.09V
• Short Circuit Current: 14.01A
• Power Tolerance: 0 / +5%
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 20.7 kg
• Frame Colour: black
• Frame Material: anodised aluminium
• Front Glass: high-transmittance tempered glass
• Protection Rating: IP68 dust and water resistant

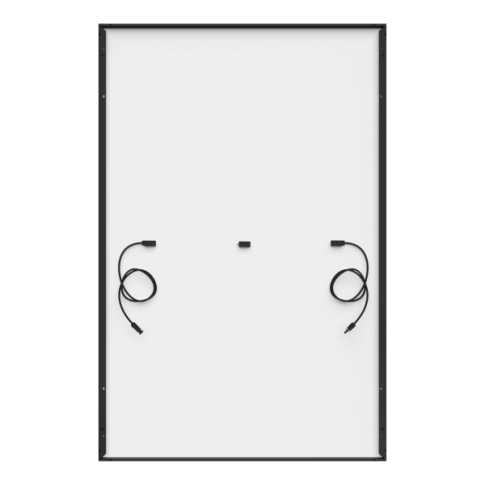

• Connectors: MC4-compatible male and female plugs
• Cable Length: 2 × 1.25m single-core solar cable
• Mounting: pre-drilled holes for standard installation
• Certification: MCS certified
• Typical Applications: residential rooftops, boats, campervans, cabins, and off-grid systems
