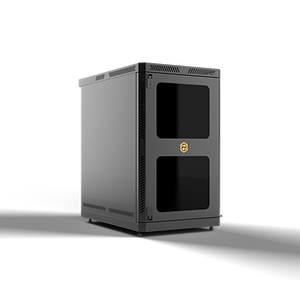

Sunsynk 5-Way Indoor Battery Cabinet

This inverter and battery cabinet is designed to provide a compact, secure, and organised housing solution for Sunsynk battery systems and rack-mount inverters. The cabinet is engineered for efficient space utilisation and arrives flat-packed for easy transportation and rapid assembly. Its interlocking panel design enables quick installation while ensuring a robust and durable structure suitable for residential and light commercial energy storage systems.
Authorised retailer of Sunsynk.

Specification

• Cabinet type: Inverter and battery cabinet
• Battery capacity support:
• Sunsynk 5 × 5kWh batteries, or
• 4 × 5kWh batteries plus rack-mount inverter
• Cabinet assembled dimensions (H × W × D): 1005 × 585 × 920 mm
• Material: 1.2 mm mild steel
• Finish: Powder-coated black
• Packaging: Flat pack (2 boxes)
• Locking mechanism: Lockable lift-and-turn compression latch
• Glass: 4 mm tempered glass
• Feet: Adjustable threaded feet (0–25 mm)
• Ventilation: Dual fan with bimetal thermostat and mains plug socket
• Temperature control: Adjustable bimetal thermostat (preset 25°C)
• Gland knockout holes:
• Right: 4 × 25 mm, 4 × 32 mm
• Left: 4 × 25 mm, 4 × 32 mm
• Rear: 4 × 25 mm, 4 × 32 mm
• Nominal input / output voltage: 220–240 V AC
• Nominal frequency: 50 / 60 Hz
• Maximum current: 0.26 A
• IP rating: IP20
