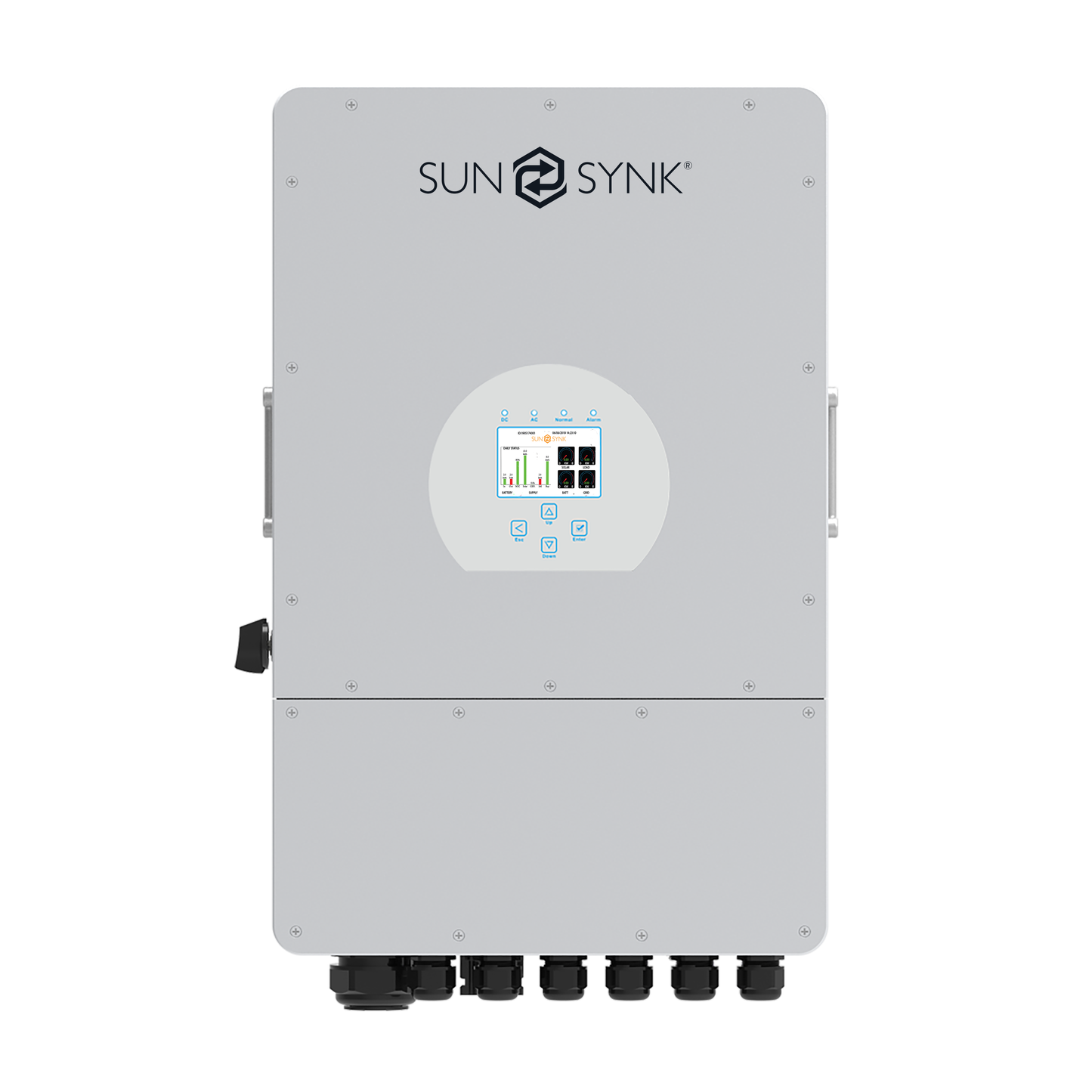

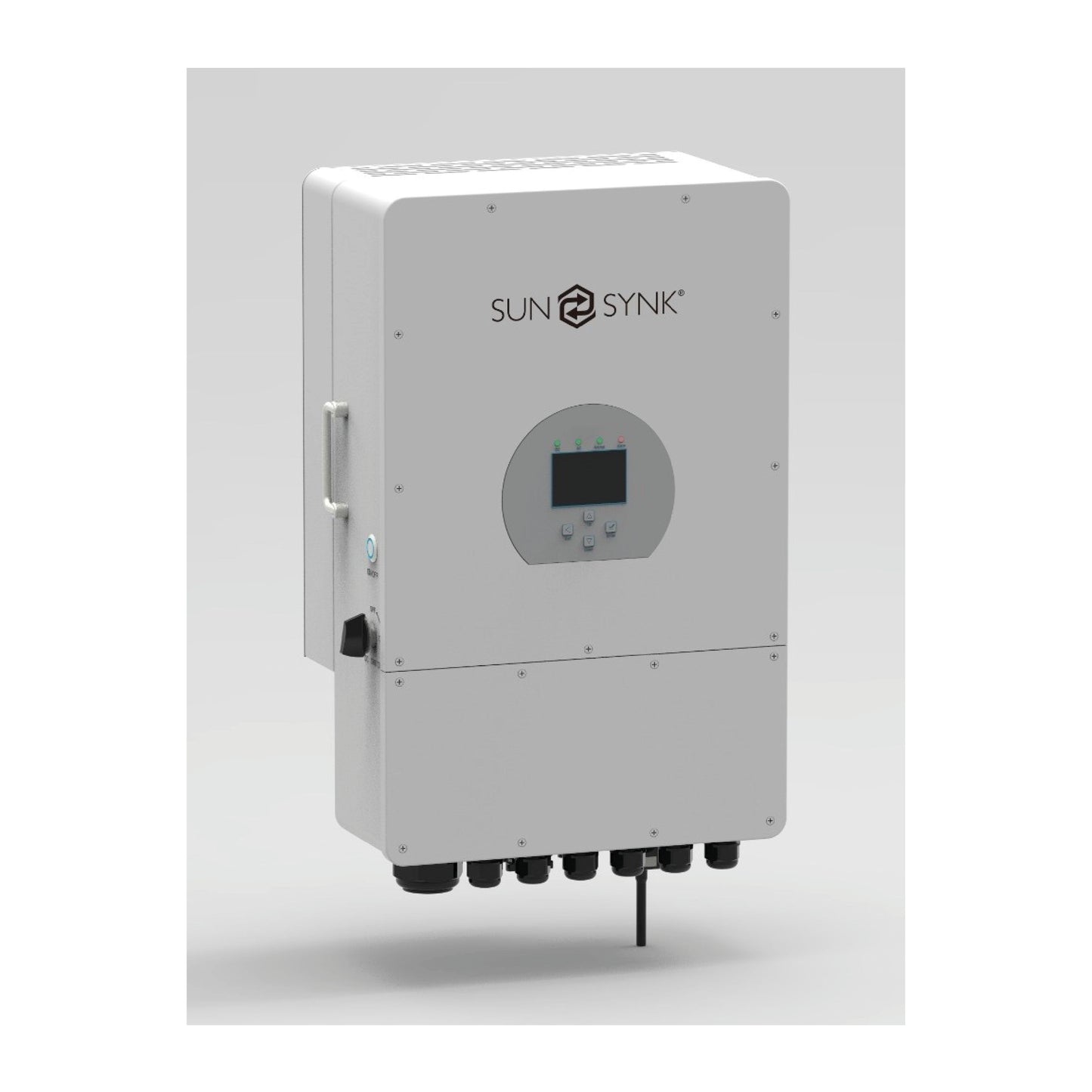

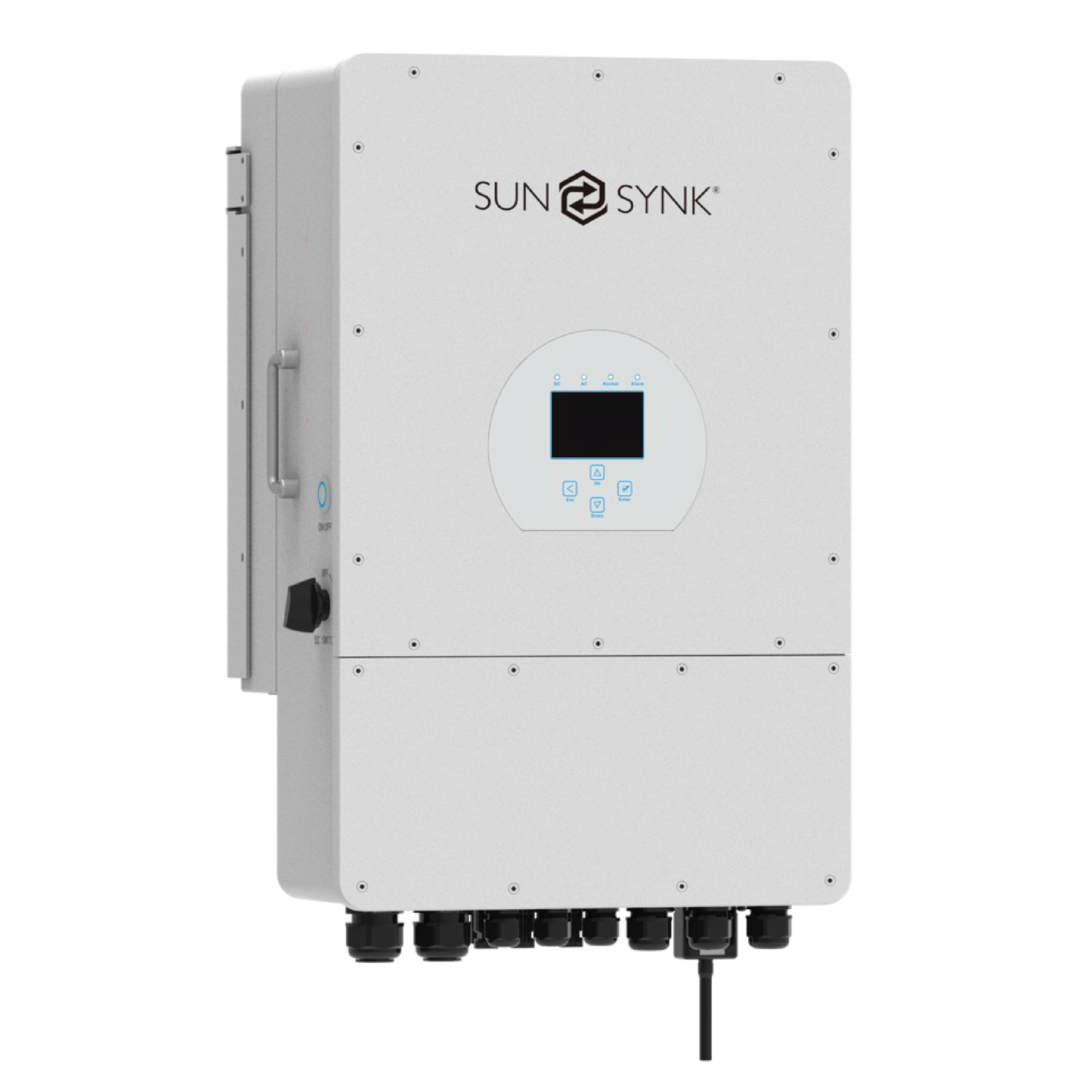

Sunsynk 8.0kW Three Phase Hybrid Inverter

The Sunsynk 8.0kW Three Phase Hybrid Inverter is a three-phase solar inverter designed for residential and commercial energy systems. It manages energy flow between solar panels, batteries, the grid, and backup generators, supporting both on-grid and off-grid operation.

The inverter supports up to 10,400W PV input power and a maximum charge and discharge current of 190A. It operates with a 48V low-voltage battery configuration and is compatible with both lithium-ion and lead-acid batteries. The system supports unbalanced three-phase output, allowing flexible load distribution across phases while maintaining correct phase rotation.

The unit features IP65-rated weather protection, intelligent air cooling, and maximum efficiency above 97%. Integrated protection systems include arc fault detection, surge protection, and anti-islanding for safe and stable operation.

Authorised retailer of Sunsynk.

Specification

• Rated AC Output Power: 8.0kW
• PV Input Power: 10,400W
• PV Input Voltage Range: 125–850V
• Maximum PV Input Voltage: 1,000V
• Maximum PV Input Current (per MPPT): 26A
• MPPT Trackers: Dual MPPT
• Maximum Efficiency: 97.6%
• Battery Voltage: 48V (Low Voltage)
• Maximum Charge/Discharge Current: 190A
• AC Output Type: Three Phase (Unbalanced Support)
• AC Output Voltage: 400V ±5%
• AC Frequency: 50/60Hz
• Cooling Method: Intelligent air cooling
• Enclosure Rating: IP65
• Protection Features: Arc fault detection, surge protection, anti-islanding
• Communication Ports: RS485 / CAN / Wi-Fi
• Operating Temperature Range: –25°C to +60°C
• Dimensions: 670 × 580 × 250 mm
• Weight: 30 kg
