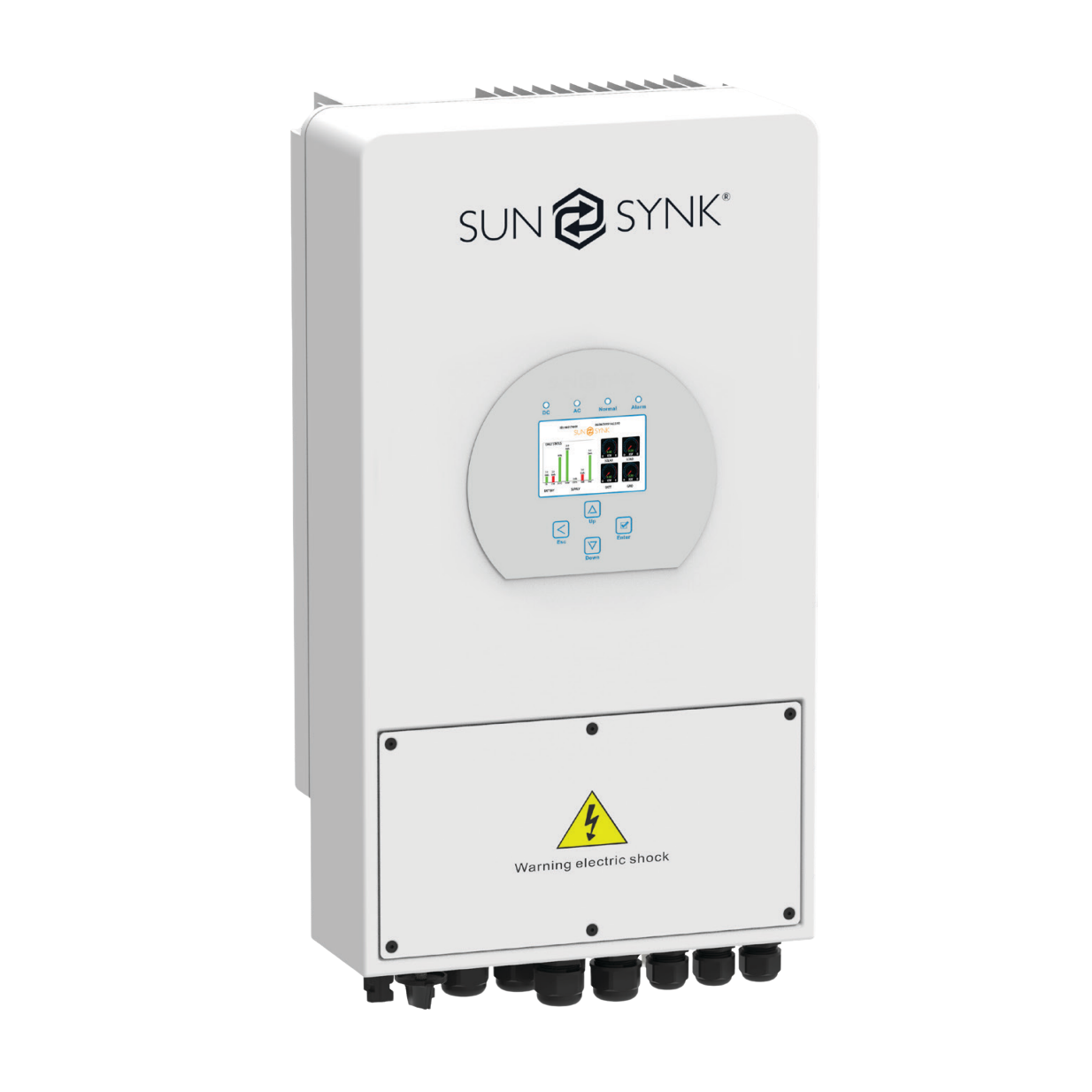

Sunsynk Ecco 7kW Hybrid Inverter Single Phase

The Sunsynk Ecco 7kW Hybrid Inverter is a single-phase inverter designed for residential and small commercial solar systems. It manages solar input, battery storage, and grid connection to ensure stable and efficient energy conversion. Dual MPPT trackers optimise power generation under varying conditions, while its IP65-rated housing and natural convection cooling allow reliable operation in a wide temperature range. The inverter is compatible with both lithium and lead-acid batteries. Integrated communication ports enable connection to monitoring and control systems for improved energy management.

Specifications

• Rated Power Output: 7kW
• PV Input Capacity: 10,000W
• Maximum Efficiency: 97.6%
• MPPT Trackers: Dual MPPT
• Maximum PV Input Voltage: 500V
• MPPT Voltage Range: 125–425V
• Maximum PV Input Current (per tracker): 18A
• Battery Voltage Range: 40–60V
• Maximum Charge/Discharge Current: 120A
• AC Output Voltage: 230V ±5%
• Frequency: 50Hz
• Enclosure Rating: IP65
• Cooling Method: Natural convection
• Operating Temperature Range: –45°C to +60°C
• Noise Level: <30 dB
• Communication Interface: RS485 / CAN / Wi-Fi
• Mounting Type: Wall-mounted
• Dimensions: 540 × 450 × 200 mm
• Weight: 27 kg
