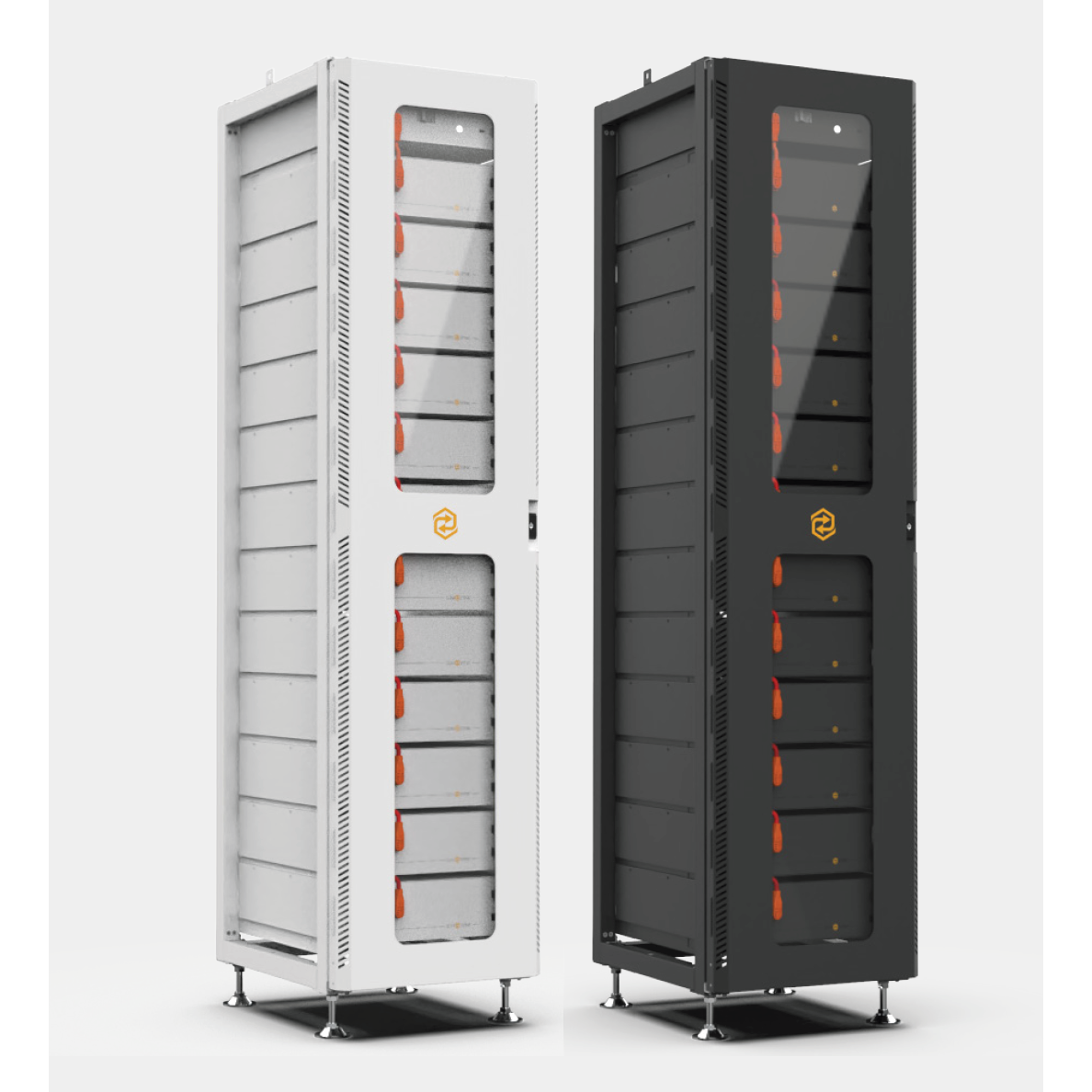

Sunsynk High Voltage Battery Rack

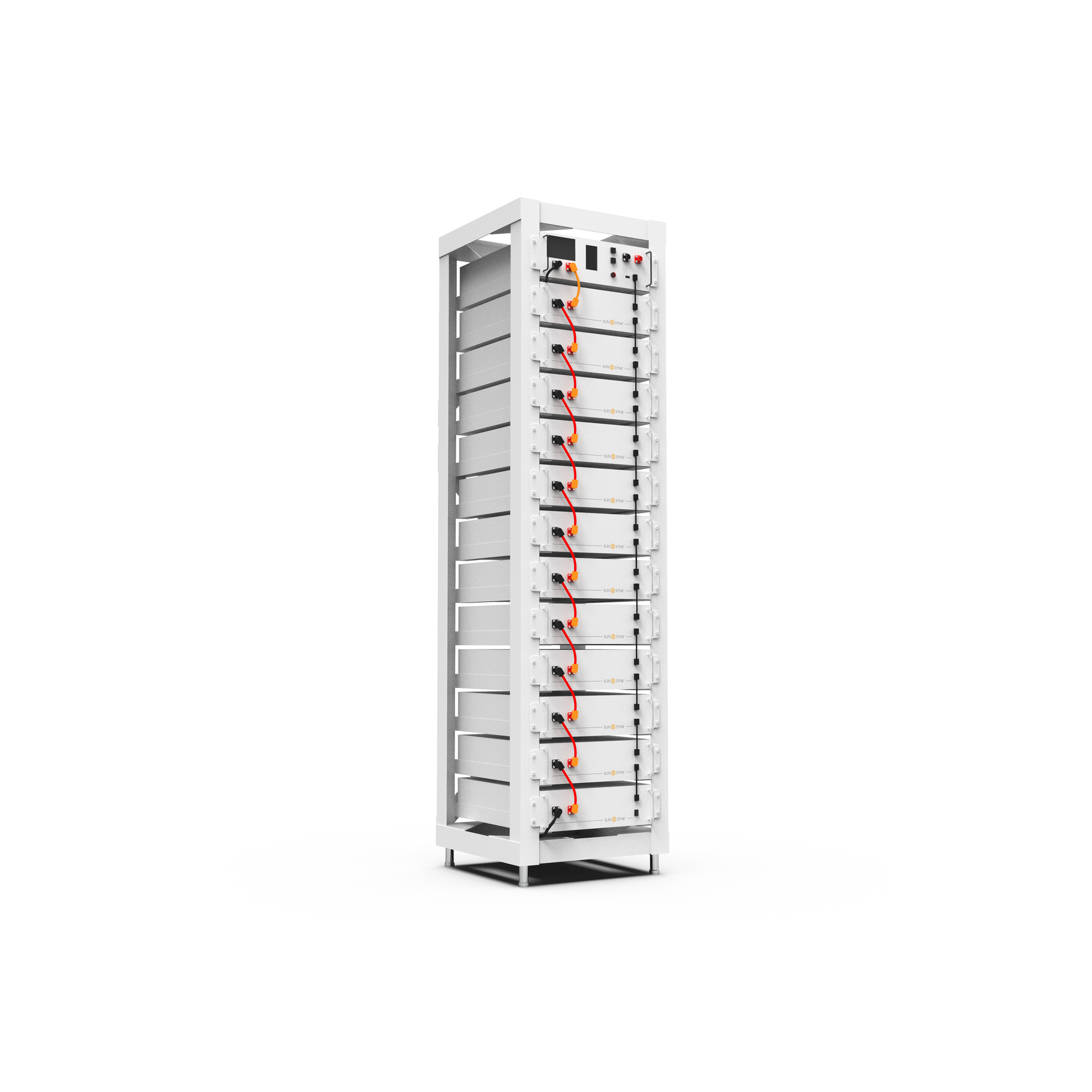

The Sunsynk High Voltage Battery Rack is a rack-mounted enclosure designed for use with Sunsynk high-voltage lithium battery systems in commercial, industrial, and large residential energy storage installations. It provides a structured and secure mounting solution for Sunsynk 5.12 kWh high-voltage battery modules and associated high-voltage control components.

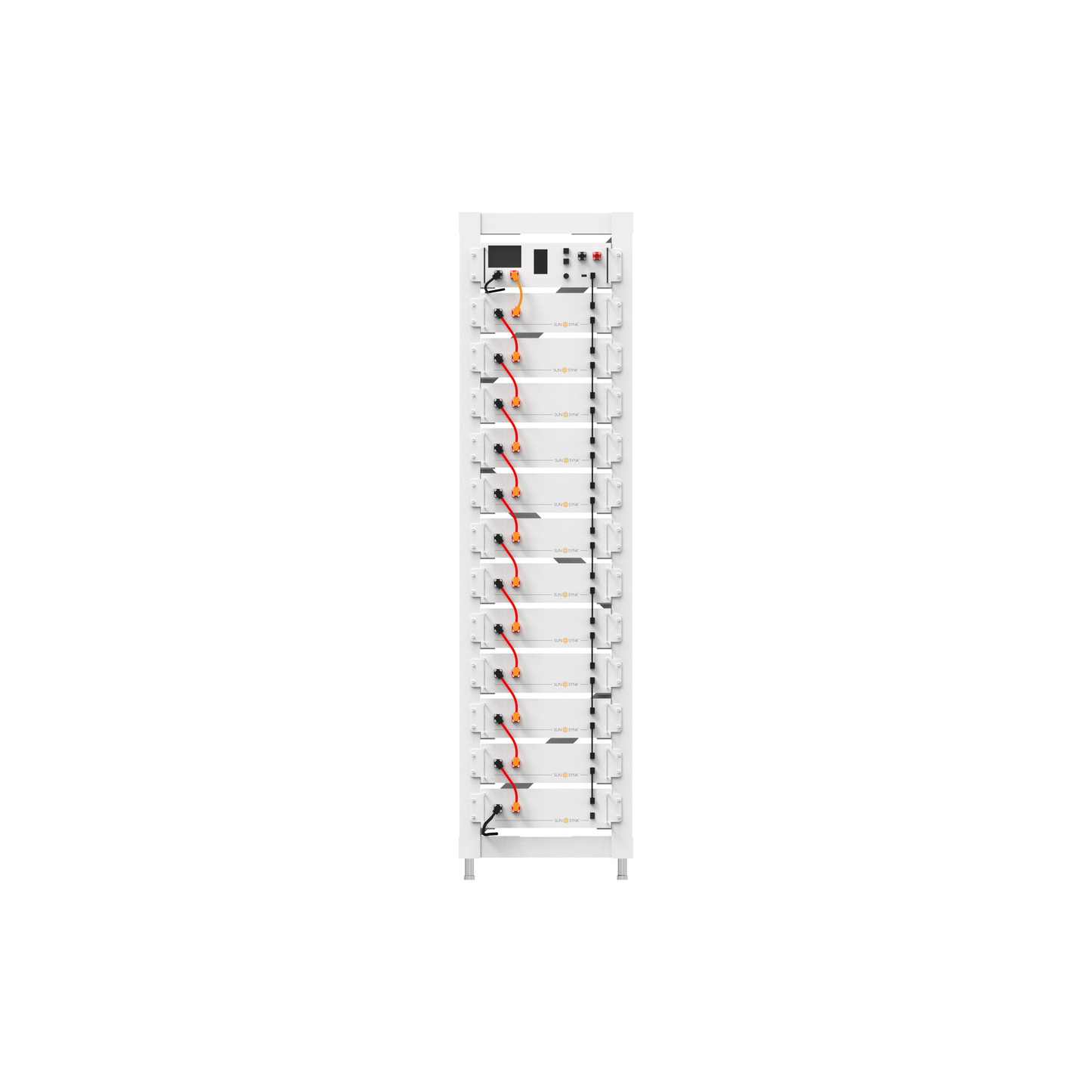

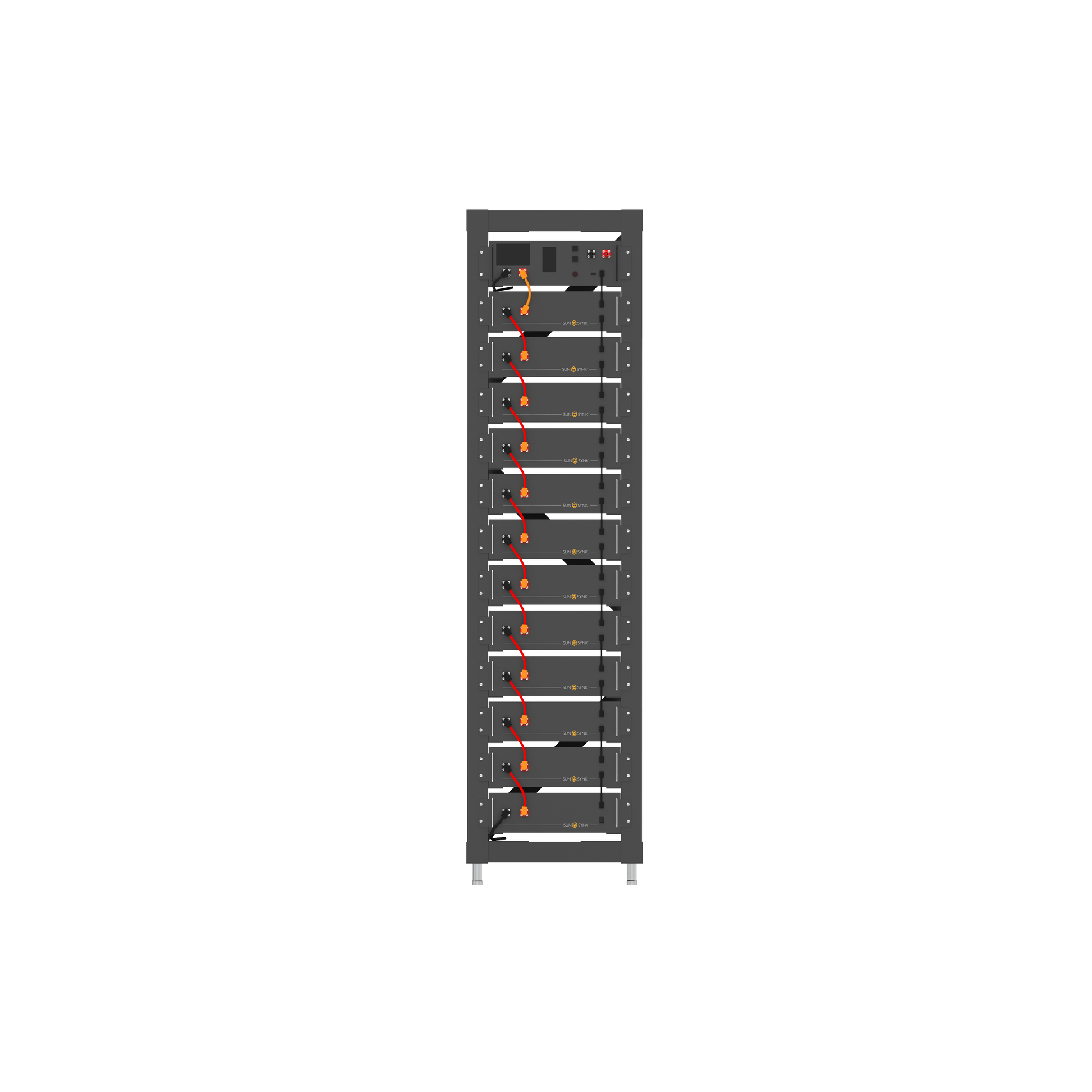

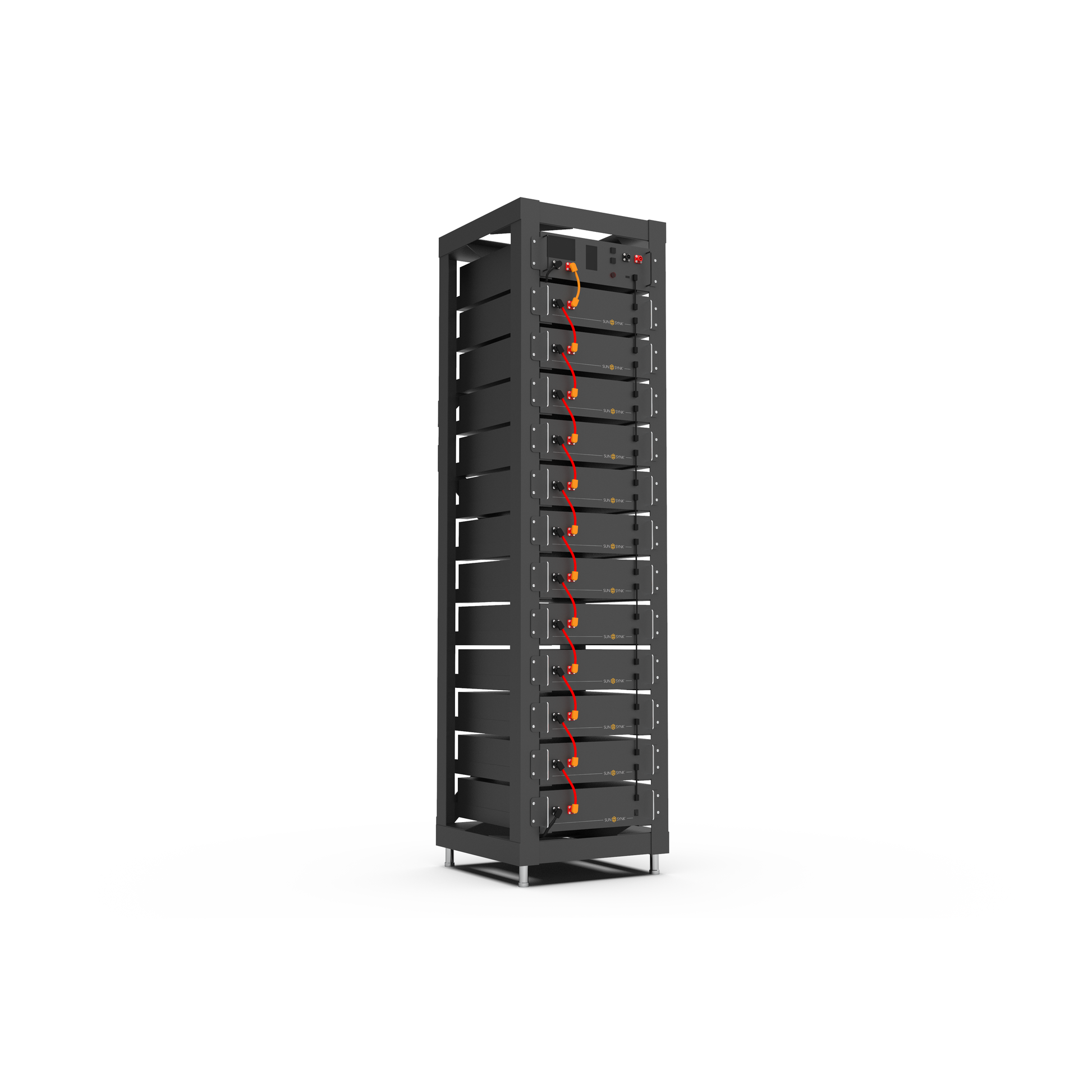

The rack supports scalable high-voltage battery configurations, allowing up to twelve battery modules to be installed in series together with a dedicated high-voltage control unit to achieve the required system voltage and capacity. It is compatible with Sunsynk high-voltage inverters and battery management systems as part of an integrated HV energy storage solution.

This equipment is intended for professional use and is designed to be installed and commissioned by qualified and experienced electrical or solar installation professionals in accordance with applicable regulations and safety standards.

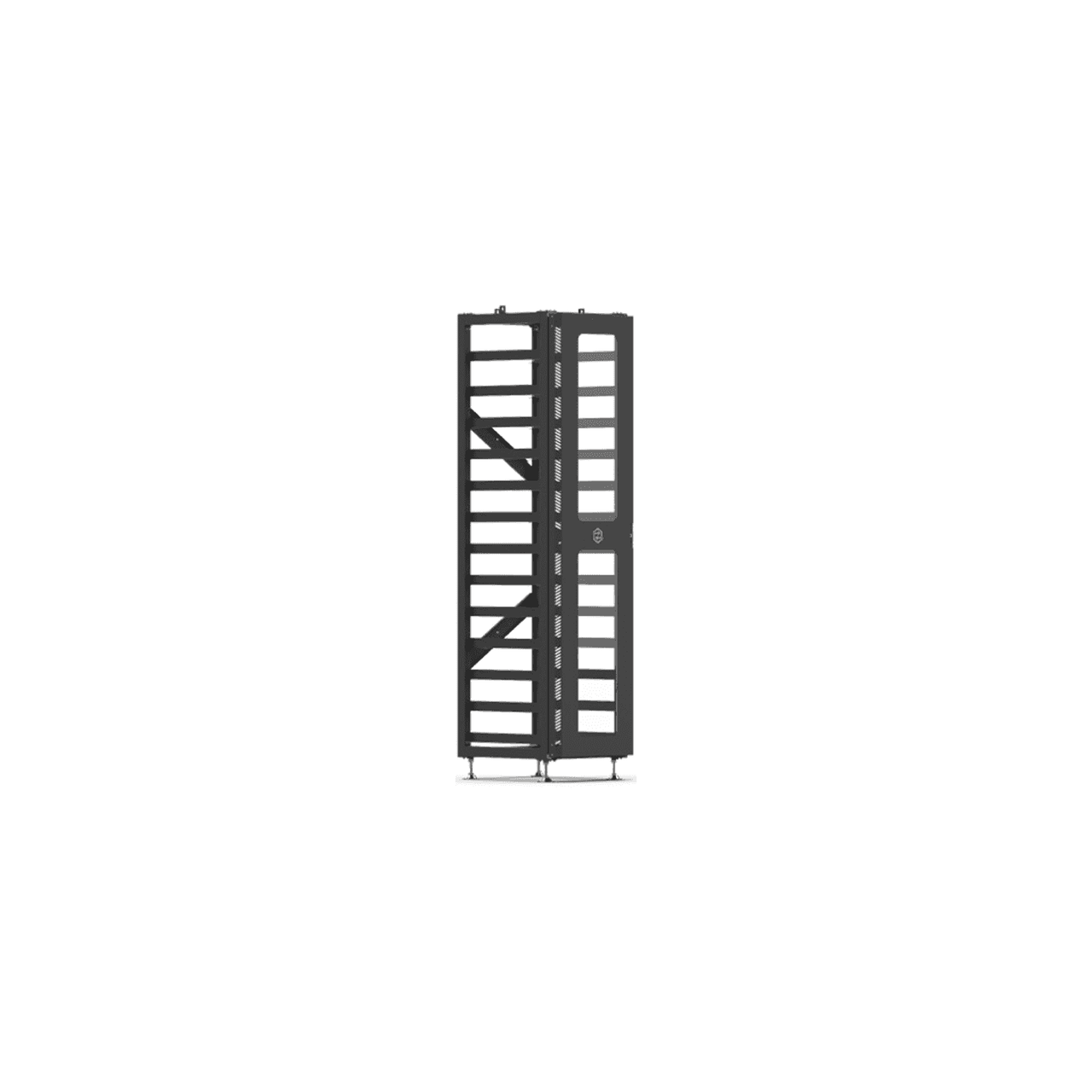

The enclosure is intended for indoor installation and provides organised cable routing, ventilation, and mechanical support for high-voltage battery assemblies in professional energy storage applications.

Authorised retailer of Sunsynk.

Specification
• Product Type: High Voltage Battery Rack (Rack-Mounted Enclosure)
• Compatibility: Sunsynk High Voltage Battery Series
• Battery Module Compatibility: 5.12 kWh high-voltage battery modules
• Maximum Battery Modules Supported: 12 modules
• Control Unit Mounting: High-voltage control box mounted within rack
• Supported Configurations: Series-connected battery modules
• Installation Location: Indoor
• Enclosure IP Rating: IP20
• Installation Type: Floor-standing rack system
• Application: Commercial, industrial, and professional energy storage systems

Included Components
• High-voltage control box (750 V / 100 A)
• 5.12 kWh high-voltage battery modules (quantity dependent on configuration)
• 120 Ω terminal resistor
• Communication cables for battery modules and control box
• Positive and negative high-voltage power cables
• Ground connection cable for rack grounding

• Communication Interface Compatibility: CAN2.0 / RS485 (via control unit)
• Recommended Depth of Discharge: 90 % (system dependent)
• Certifications (as part of system): CE, IEC 62619, VDE 2510-50, UL 1973, UL 9540A, UN 38.3
