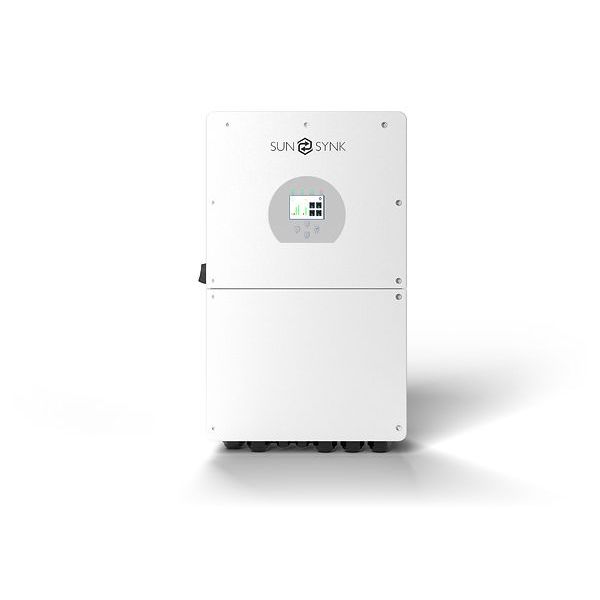

Sunsynk Max 16.0kW Single Phase Hybrid Inverter

The Sunsynk Max 16.0kW Single Phase Hybrid Inverter is a high-capacity inverter designed for large residential and commercial solar systems. It manages power flow between solar panels, batteries, and the grid, supporting both on-grid and off-grid operation.

The inverter includes triple MPPT tracking for efficient solar energy utilisation and intelligent battery management for consistent charge and discharge control. It supports up to 20,800W PV input power and a maximum charge/discharge current of 290A. The 48V low-voltage battery configuration ensures operational safety and compatibility with both lithium-ion and lead-acid batteries.

The system features IP65-rated weather protection, intelligent air cooling, and conversion efficiency above 97%. Integrated safety functions include arc fault detection, surge and lightning protection (Type II AC/DC), reverse polarity prevention, anti-islanding, and residual current monitoring. The unit operates quietly below 50dB and is suitable for continuous use in varied environments.

Authorised retailer of Sunsynk.

Specification

• Rated AC Output Power: 16.0kW
• PV Input Power: 20,800W
• MPPT Trackers: Triple MPPT
• PV Input Voltage Range: 125–850V
• Maximum PV Input Voltage: 1,000V
• Maximum PV Input Current (per MPPT): 26A
• Maximum Efficiency: 97.6%
• Battery Voltage: 48V (Low Voltage)
• Maximum Charge/Discharge Current: 290A
• Supported Battery Types: Lithium-ion / Lead-acid
• AC Output Type: Single Phase
• AC Output Voltage: 230V ±5%
• AC Frequency: 50/60Hz
• Cooling Method: Intelligent air cooling
• Enclosure Rating: IP65
• Noise Level: <50 dB
• Protection Features: Arc fault detection, surge and lightning protection (Type II AC/DC), reverse polarity, anti-islanding, residual current monitoring
• Communication Ports: RS485 / CAN / Wi-Fi
• Operating Temperature Range: –25°C to +60°C
• Dimensions: 670 × 580 × 250 mm
• Weight: 39 kg
