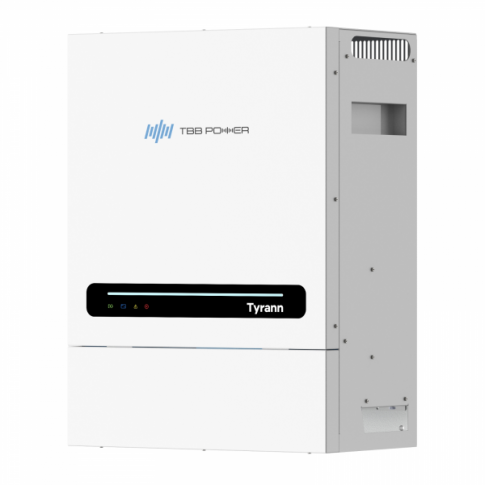

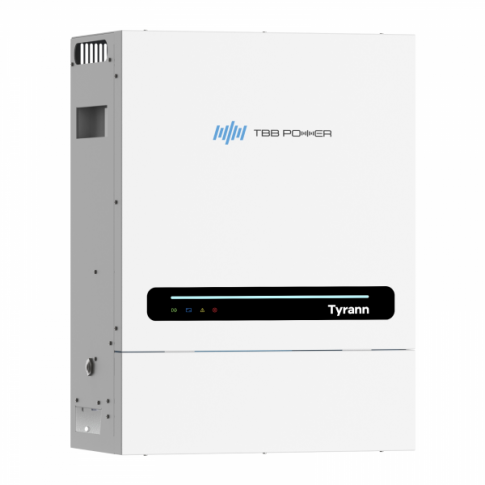

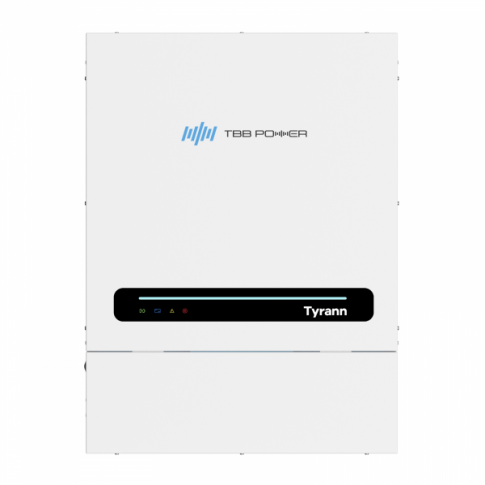

TBB Power Tyrann 8kW 48V Transformer-Based Solar Inverter Charger

The TBB Power TYRANN is a transformer-based inverter charger designed for backup, off-grid, and energy storage applications. It is suitable for both stationary and mobile installations, including off-grid homes, cabins, and remote properties that require reliable and continuous power.

The inverter delivers pure sine wave AC output and features an ultra-fast 0ms transfer to battery operation, ensuring uninterrupted power supply during grid outages. Its transformer-based design provides strong surge capability, electrical isolation, and stable performance for sensitive electronics as well as high-demand loads.

A programmable smart port allows flexible system configuration, operating either as a generator input or a secondary AC output. The TYRANN supports parallel operation for system expansion and integrates with compatible monitoring accessories to enable advanced energy management features such as time-of-use optimisation and grid interaction where applicable.

The inverter charger is compatible with lithium and lead-acid (AGM and GEL) batteries and includes intelligent charging control, automatic generator start, and advanced protection functions. An intelligent cooling system with predictive fan control ensures stable operation and extended component lifespan.

Authorised retailer of TBB Power.

Specification

• Nominal battery voltage: 48V
• Continuous power output: 8000VA (220–240V AC)
• Maximum output power: 8000W
• Peak power: 24000W
• AC output frequency: 50 / 60Hz
• Output waveform: Pure sine wave
• Maximum AC charging current: 110A
• AC transfer current: 50A
• Peak efficiency: 96%
• Zero load power consumption: 26W
• Transfer time: 0ms
• Protection index: IP21
• Operating temperature: -40°C to +65°C
• Humidity tolerance: Up to 95% (non-condensing)
• Maximum operating altitude: <2000m
• Dimensions: 620 × 320 × 164 mm
• Weight: 36 kg
